DRAINCOCK, Radiator: Installation: Diesel

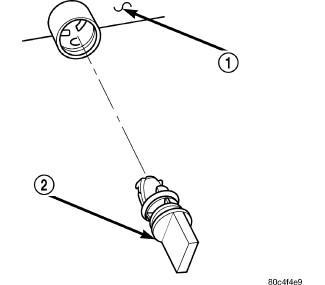

Fig 1: Draincock Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - RADIATOR TANK

2 - DRAINCOCK

Align draincock (2) stem to radiator tank opening (1).
Push draincock (2) into the radiator tank opening (1).
Tighten the draincock (2) by turning clockwise until it stops.
CAUTION:
Do not overtighten. The head of the draincock may break off.
Fill the cooling system. Refer to STANDARD PROCEDURE .
