Radiator, Engine Cooling: Installation: Gas

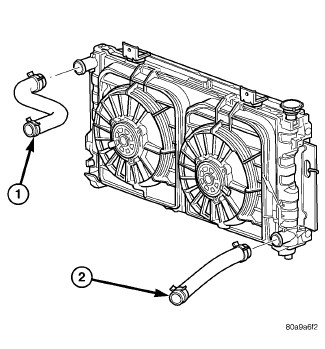

Fig 1: Upper & Lower Radiator Hoses
GC0124544Courtesy of CHRYSLER GROUP, LLC
1 - UPPER HOSE
2 - LOWER HOSE
  1. Be sure the air seal is in position before radiator is installed.  Slide radiator down into position. Seat the radiator with the rubber isolators into the mounting holes provided, with a 10 lbs. force.
  2. Position air conditioning condenser onto the radiator lower mounts and engage upper mounting tabs.
  3. Install the radiator upper and lower hoses (1, 2).
  4. Connect the coolant recovery hose.
  5. Connect the vapor purge solenoid to the mounting bracket.
  6. Install the radiator fans. Refer to FAN, COOLING, INSTALLATION .
  7. Install the radiator upper crossmember support. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
  8. Fill the cooling system. Refer to STANDARD PROCEDURE .
  9. Connect negative cable to battery.
