Fan, Cooling: Installation: 3.6L

GC0145992Courtesy of CHRYSLER GROUP, LLC
  1. Position the radiator cooling fan (3) into mounts and attaching clips on the radiator. Press down to lock into place.
    GC0160412Courtesy of CHRYSLER GROUP, LLC
  2. Install the harness (1) onto the cooling fan.
    GC0160702Courtesy of CHRYSLER GROUP, LLC
  3. Connect the cooling fan wire harness connectors to the (1), the resistors (2) and the cooling fan motors (3).
    GC0157476Courtesy of CHRYSLER GROUP, LLC
  4. Install upper radiator hose (3).

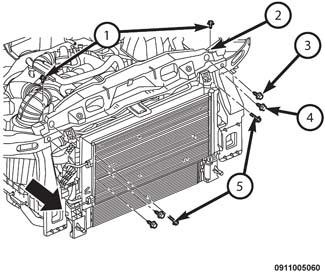

    GC0157477Courtesy of CHRYSLER GROUP, LLC
  5. Install the upper close out panel (2).

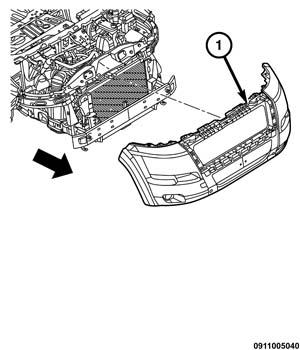

    GC0157473Courtesy of CHRYSLER GROUP, LLC
  6. Install the front bumper fascia (1). Refer to FASCIA, FRONT, INSTALLATION .
    GC0157472Courtesy of CHRYSLER GROUP, LLC
  7. Install the Pressurized coolant bottle (3) and tighten the bolt (6) to 12 N.m (9 ft. lbs.).
  8. Install the coolant return hose (1).
  9. Connect the negative cable.
  10. Fill cooling system. Refer to STANDARD PROCEDURE .
