Module, Wireless Charging Pad: Description

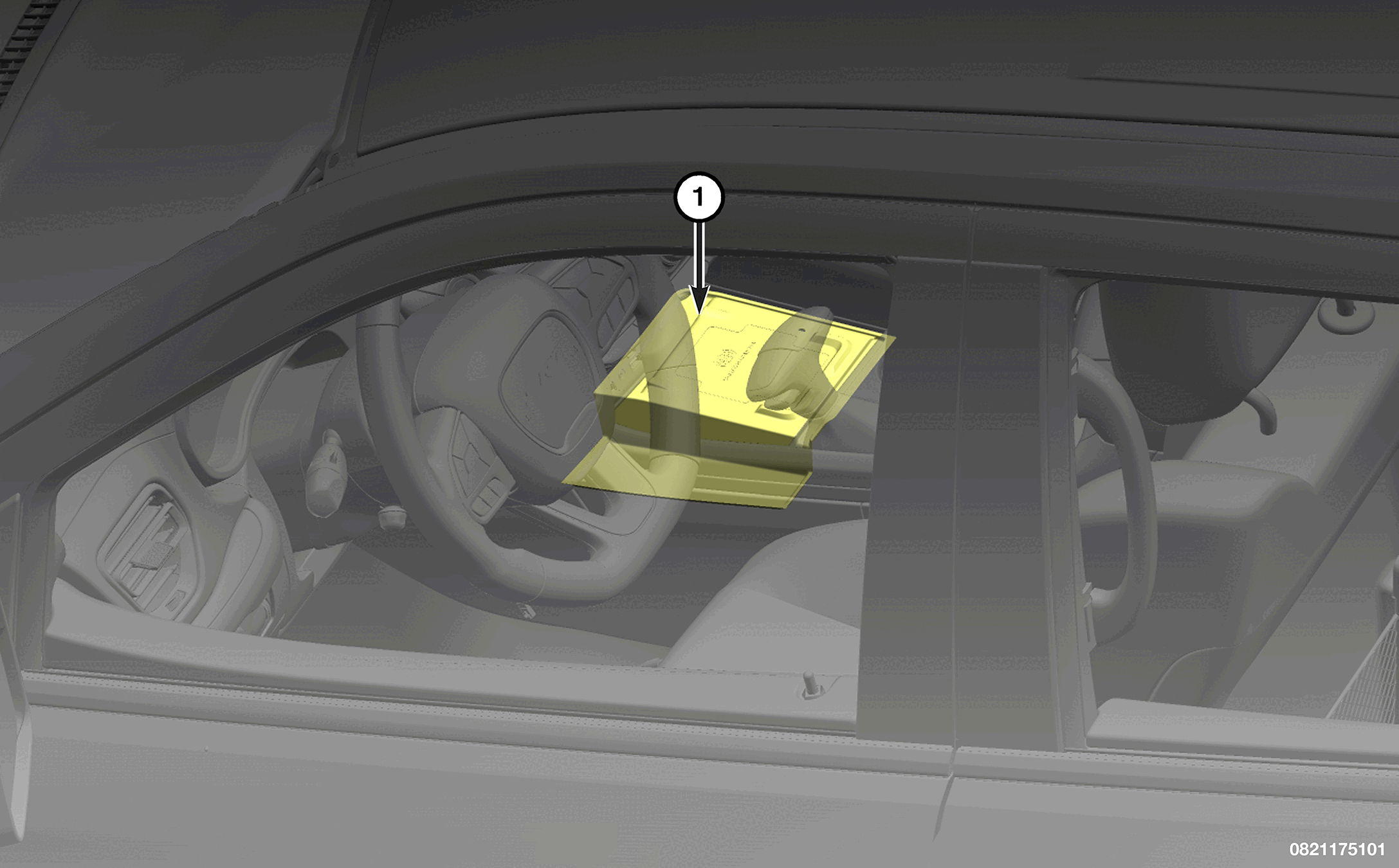

The Wireless Charging Pad (WCP) is located within the center console (1).

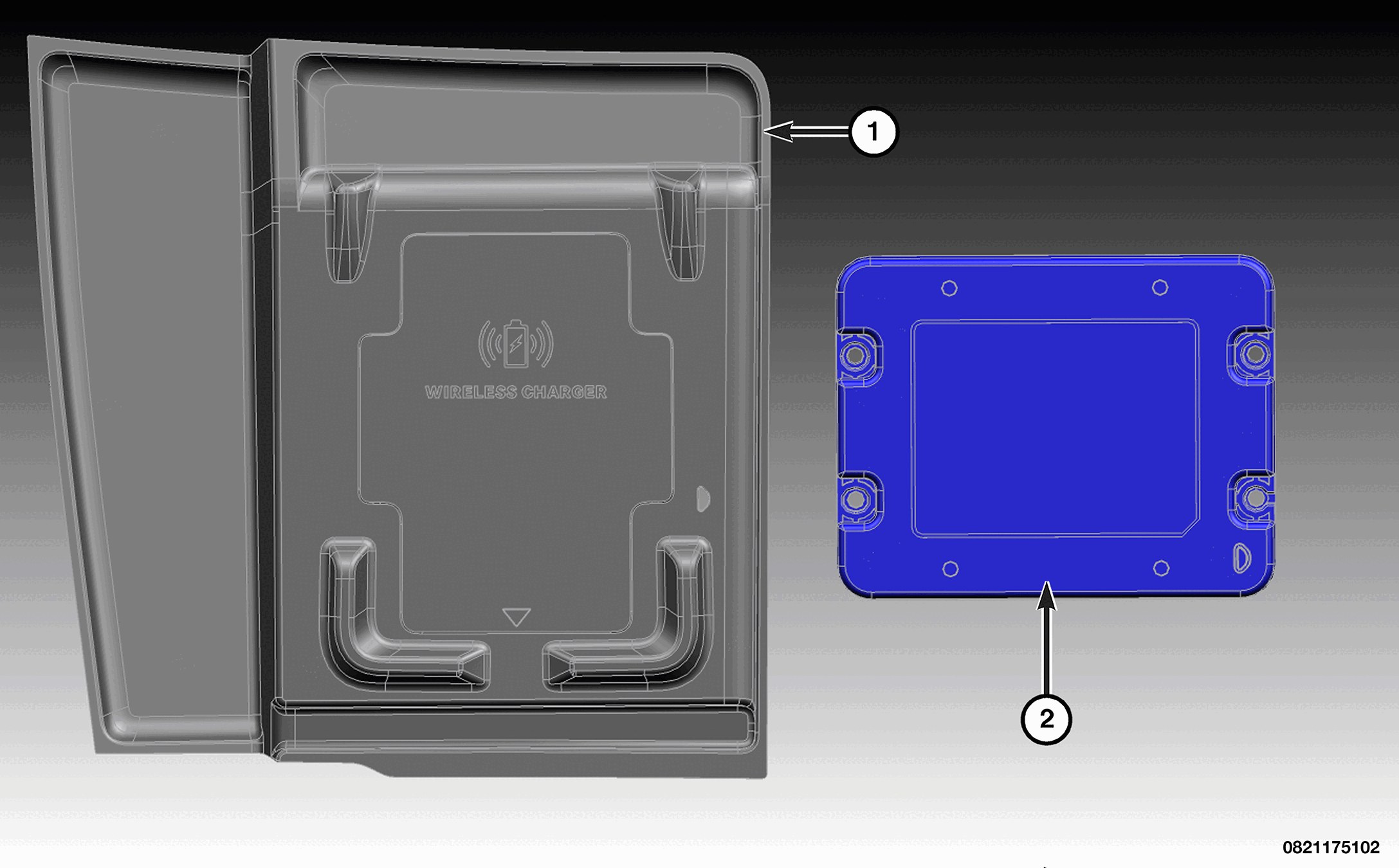

The WCP (1) uses a WCP module (2) to charge a cell phone up to 5W through inductive charging. The WCP module follows the Wireless Power Consortium (WPC) Standard.
This optional feature enables wireless charging of any cell phone that is Qi-wireless charging capable or has a Qi sleeve or backplate.
The WCP is equipped with a "phone retention feature" that holds that phone in place throughout up or down console movement and ensures efficient charge. The device must be aligned with the pad in order to charge correctly. A serviceable Light Emitting Diode (LED) will blink green to show when the phone is properly aligned and charging.
