Switch, Power Window: Installation

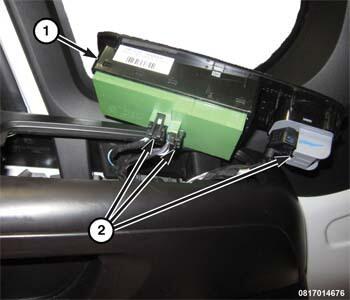

GC0160487Courtesy of CHRYSLER GROUP, LLC
  1. Position the switch bank to the door panel for installation procedure.
  2. Connect all connectors (2) to the back of the switch pod (1).
  3. Once all the connectors are seated, insert the top end of the switch bank into the proper position and then push down on the back of the switch pod to complete the installation.
  4. Connect the battery negative cable.
