Exhaust System: Description

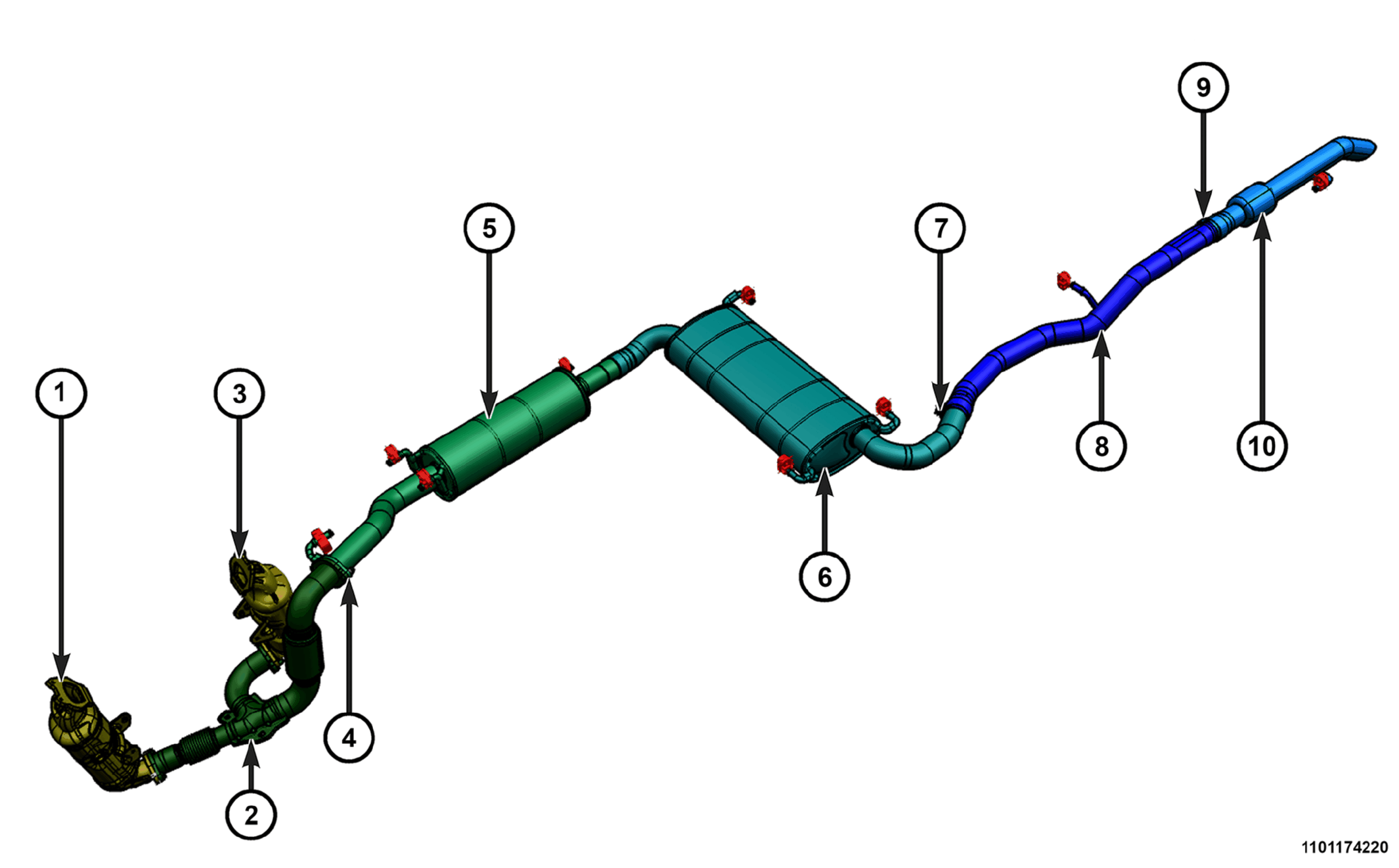

| 1 - LEFT CATALYTIC CONVERTER | 6 - EXHAUST MUFFLER |
| 2 - EXHAUST CROSS UNDER PIPE | 7 - EXHAUST CLAMP |
| 3 - RIGHT CATALYTIC CONVERTER | 8 - EXHAUST EXTENSION PIPE |
| 4 - EXHAUST ISOLATOR | 9 - EXHAUST CLAMP |
| 5 - EXHAUST RESONATOR | 10 - EXHAUST TAIL PIPE |

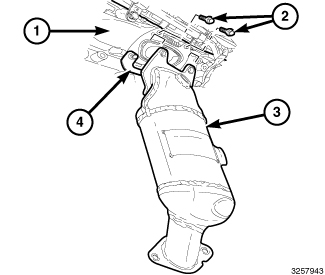

The 3.6L connects the two catalytic converters by the use of a cross-under pipe. The 3.6L catalytic converters (3) are bolted to the integrated exhaust manifold (1). A steel retainer bracket (4) is used to hold the lower section of the flange while two bolts (2) are used to secure the flange to the integrated exhaust manifold. The exhaust manifolds are part of the cylinder head. They are non removable. If any damage is found to the manifolds. The cylinder head must be repaired or replaced.
