Capacitor, Ignition: Installation

Courtesy of CHRYSLER GROUP, LLC

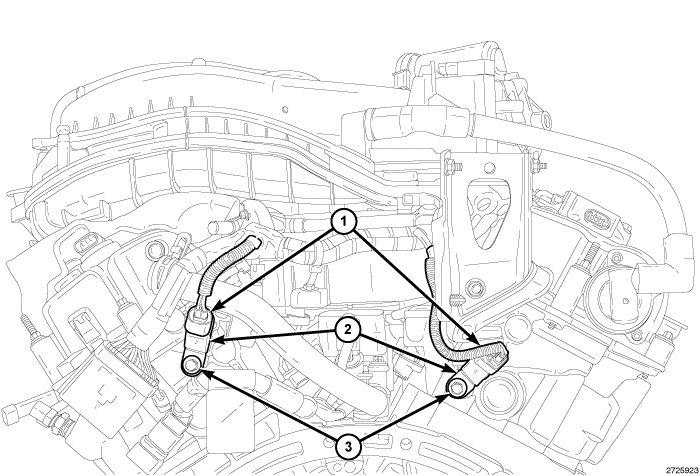

1. Install the ignition coil capacitor (2) and bolt (3). Tighten the bolt to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
2. Connect the electrical connector (1).
3. Connect the negative battery cable and tighten nut to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
