Ignition Coil Resistance Check

Remove ignition coil from ICM. Using ohmmeter, check coil primary and secondary resistance. Primary resistance should be .4-.8 ohms. Secondary resistance should be 2500-5500 ohms. Replace coil if defective.

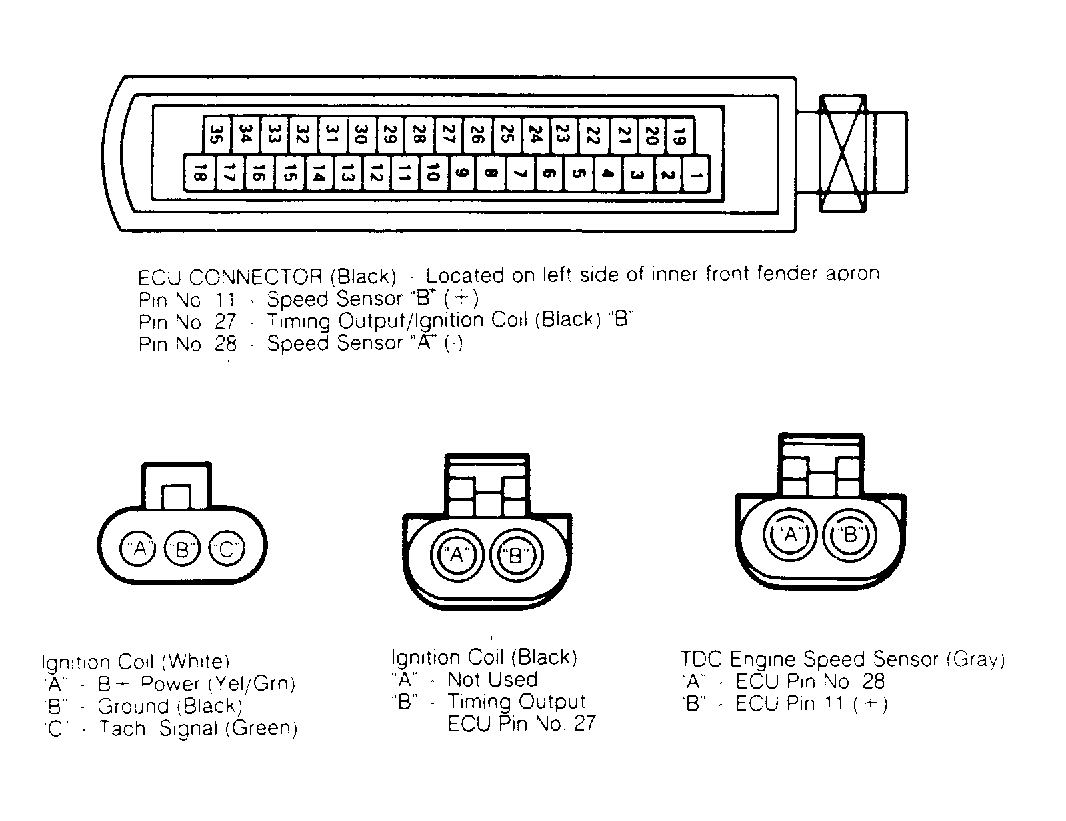

Fig 1: Eagle Medallion Electronic Ignition System Connectors

Courtesy of CHRYSLER MOTORS.
