Test 3F: Modulator Fault

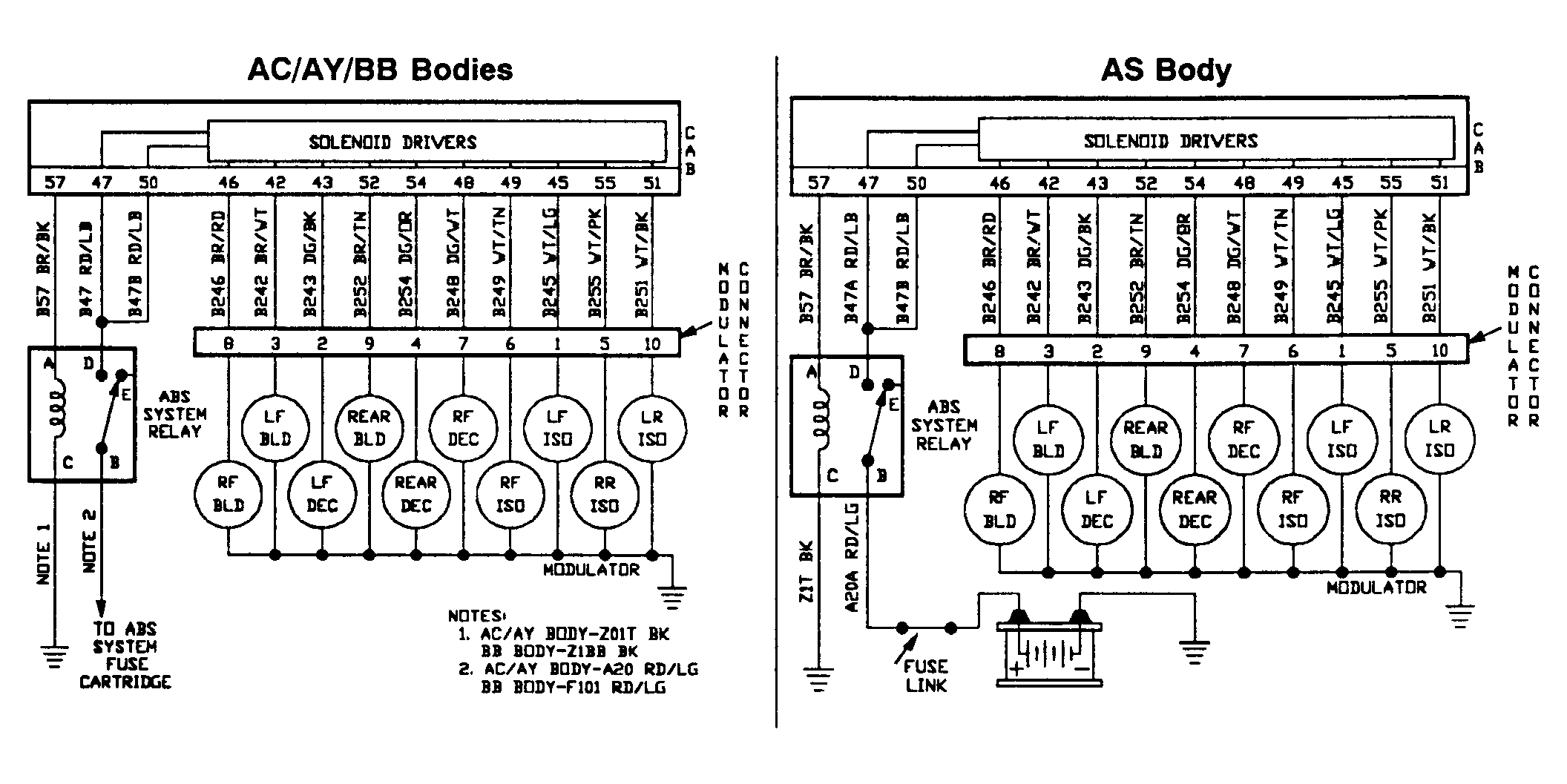

Fig 1: Test 3F - Modulator Fault, Schematic

G91I09165

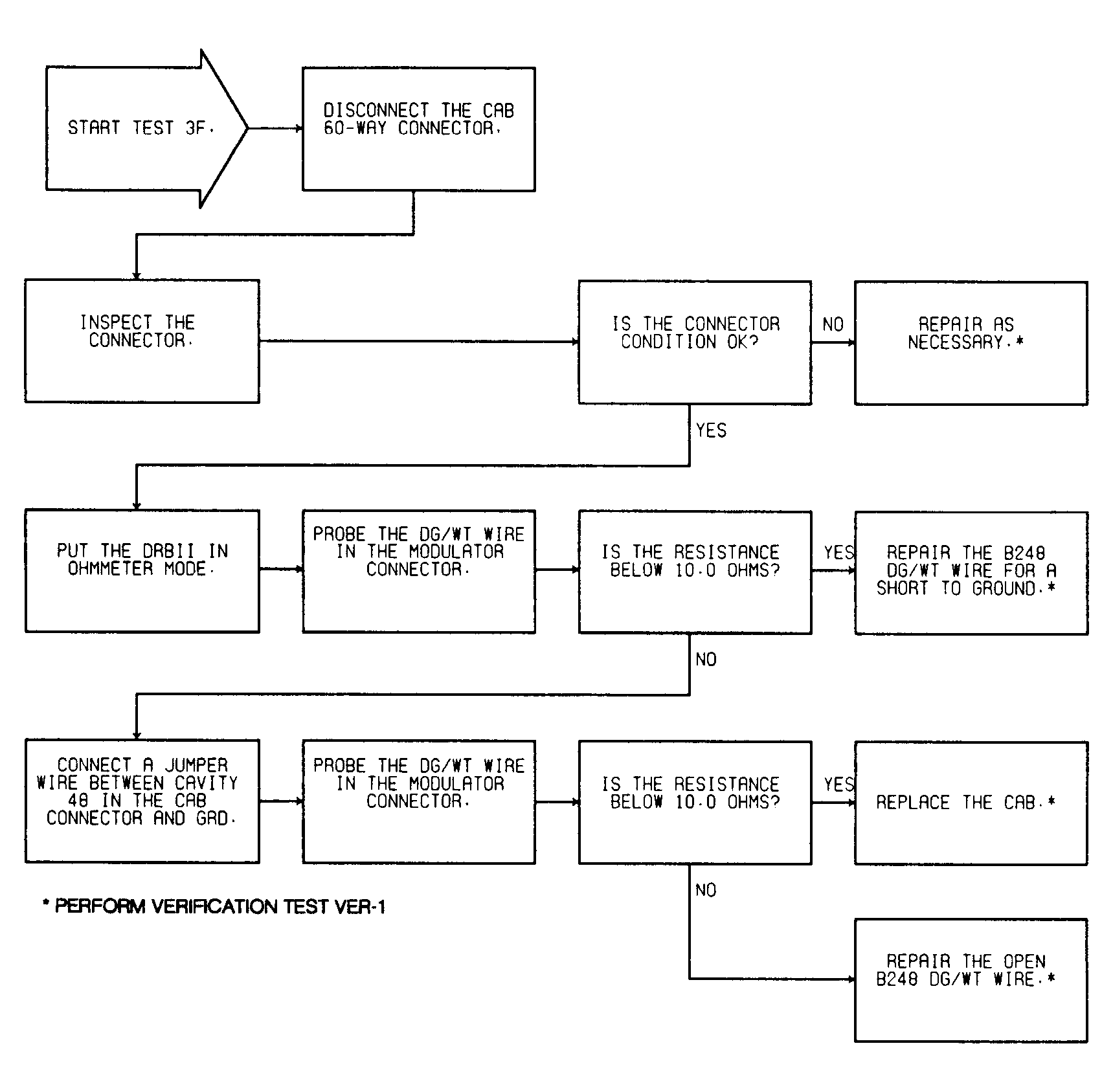

Fig 2: Test 3F - Modulator Fault, Flow Chart

G91B09176
