Eagle
>>
1990
>>
Summit Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Component Tests (Hatchback)
>>
Power Window Sub-Switch
Power Window Sub-Switch

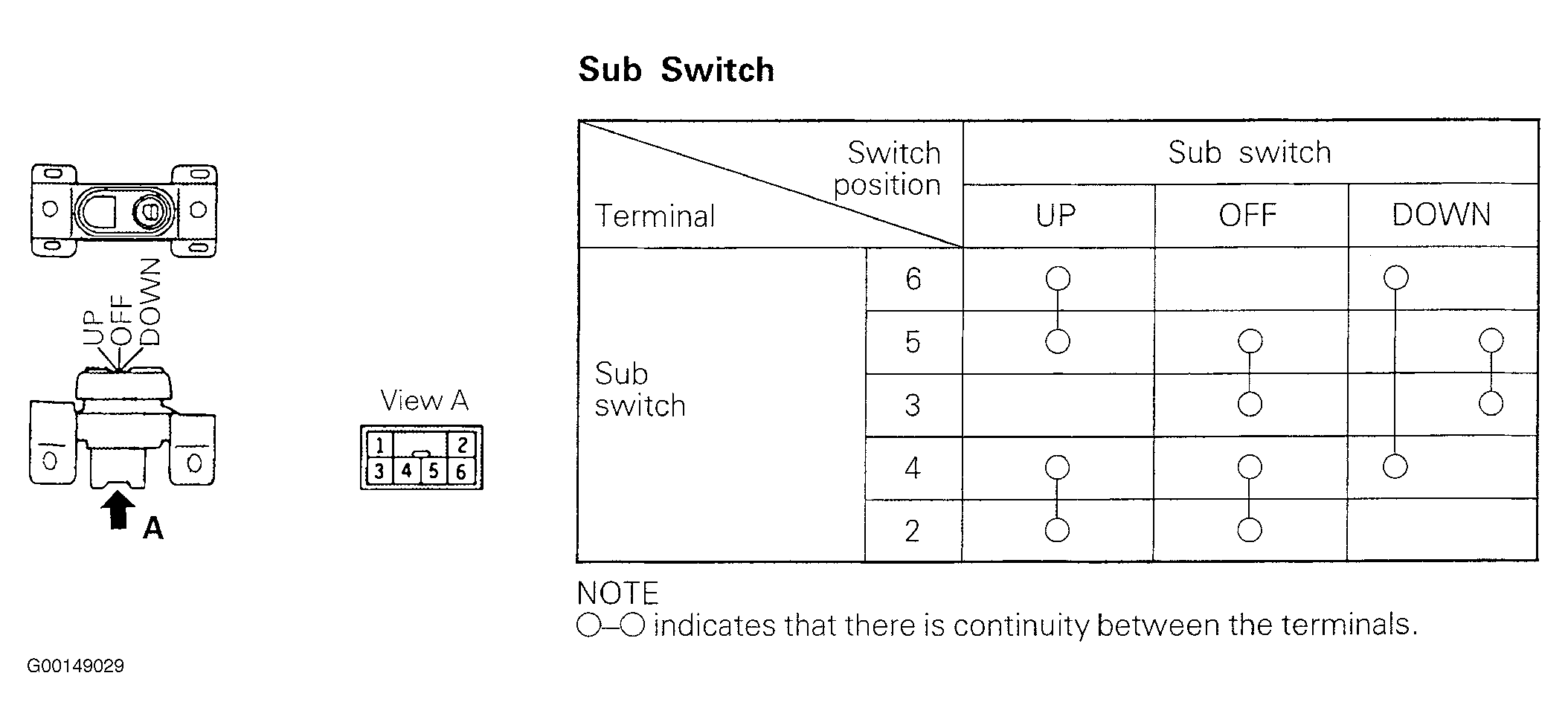

Fig 1: Power Window Sub-Switch Continuity Test
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
