Home >> Eagle >> 1990 >> Summit Base, Automatic >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Passive Restraint Systems >> Component Tests >> Fasten Switch

Fasten Switch

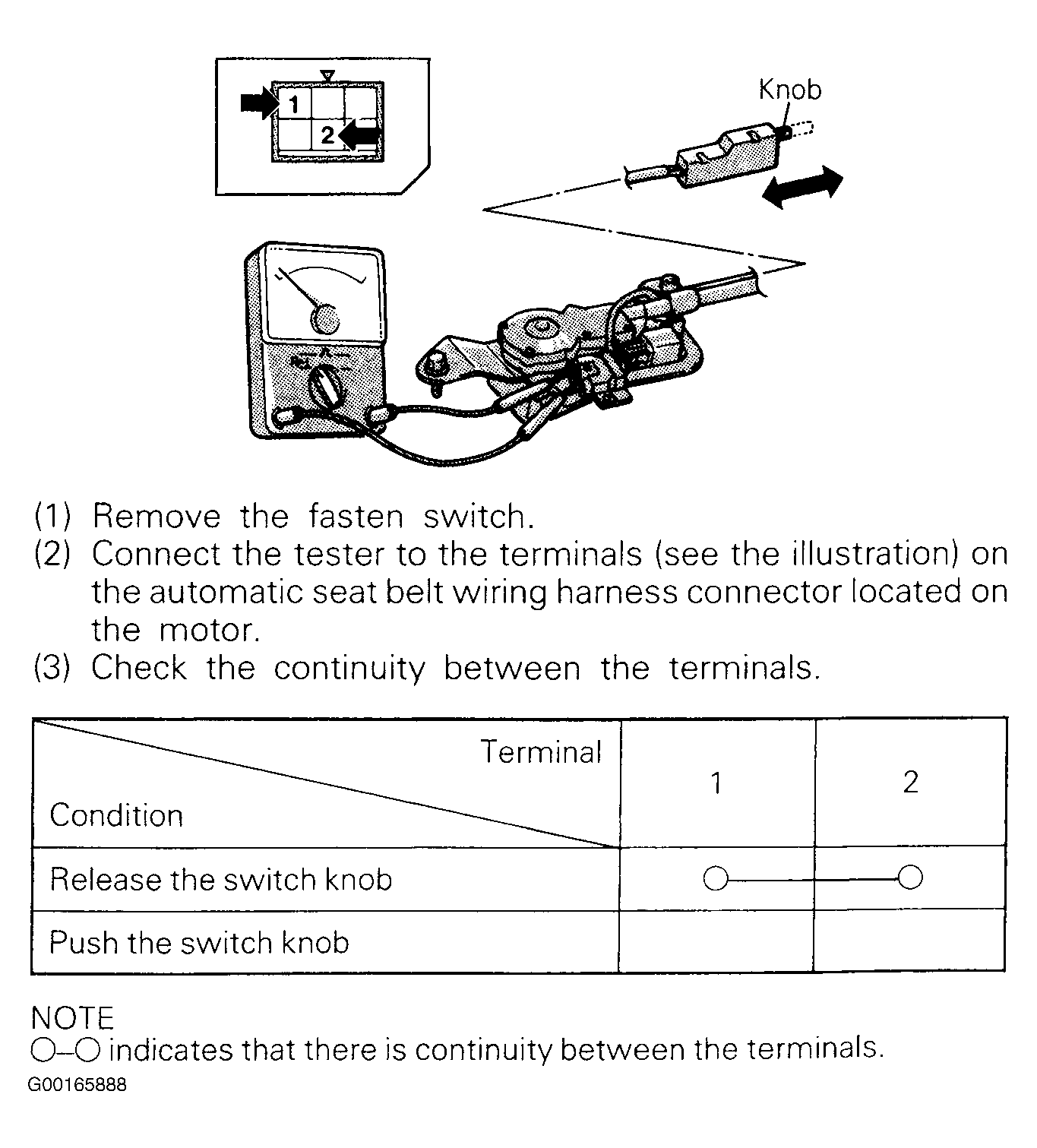

Fig 1: Testing Fasten Switch
G00165888Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
