Power Mirror Switch

NOTE: Refer to Fig 1 and Figure for connector pin identification.

Using ohmmeter, check continuity between power mirror switch terminals, with switch in designated position. See MIRROR SWITCH CONTINUITY TEST .

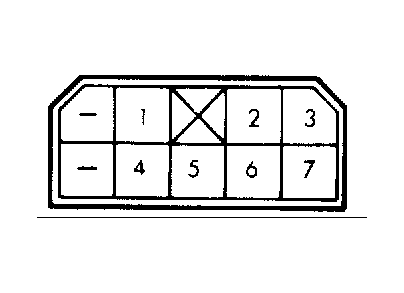

Fig 1: Identifying Power Mirror Switch Connector Pins

Courtesy of CHRYSLER MOTORS.

MIRROR SWITCH CONTINUITY TEST

Switch Position (Mirror Angle)

⁽¹⁾ Continuity Between Pins

Mirror Selector In Left Position

3 & 6 and 4 & 5

Down

3 & 5 and 4 & 6

Left

3 & 5 and 2 & 4

Right

2 & 3 and 4 & 5

Mirror Selector In Right Position

1 & 3 and 4 & 5

Down

3 & 5 and 1 & 7

Left

3 & 5 and 4 & 7

Right

3 & 7 and 4 & 5

⁽¹⁾	See Fig 1 to identify connector pins.
