NS-2A: Checking Fuel System

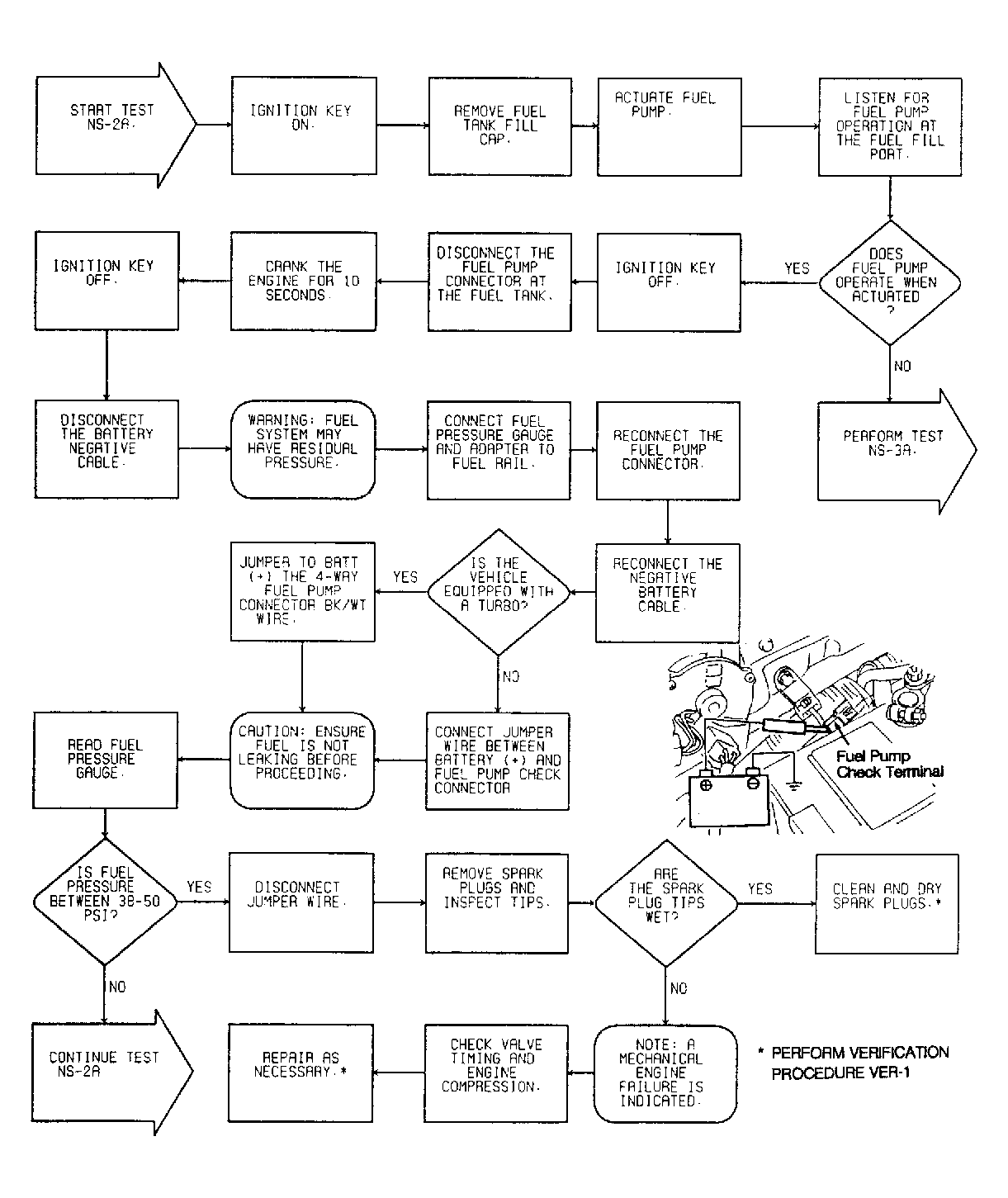

Fig 1: No Start Test NS-2A: Diagnostic Flow Chart (1 of 2)

G91G10781

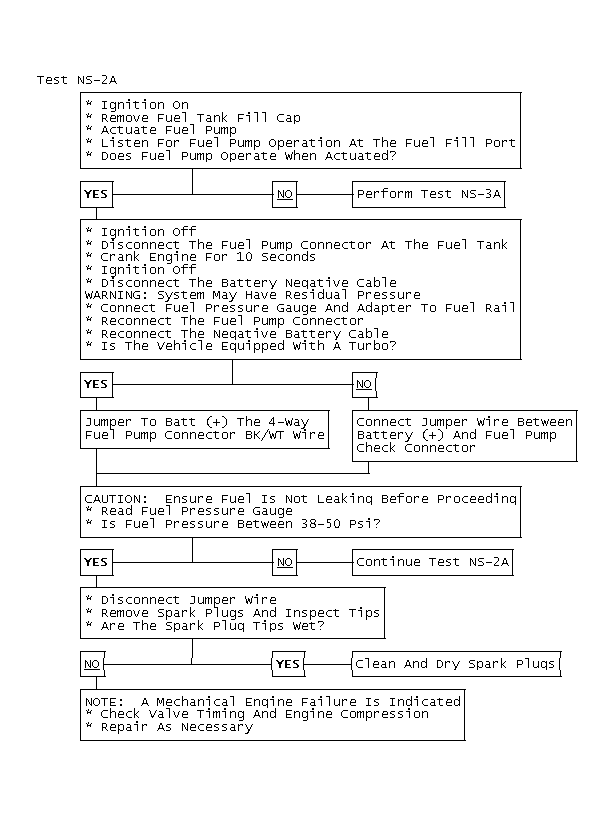

Fig 2: Test NS-2A

GB0044620

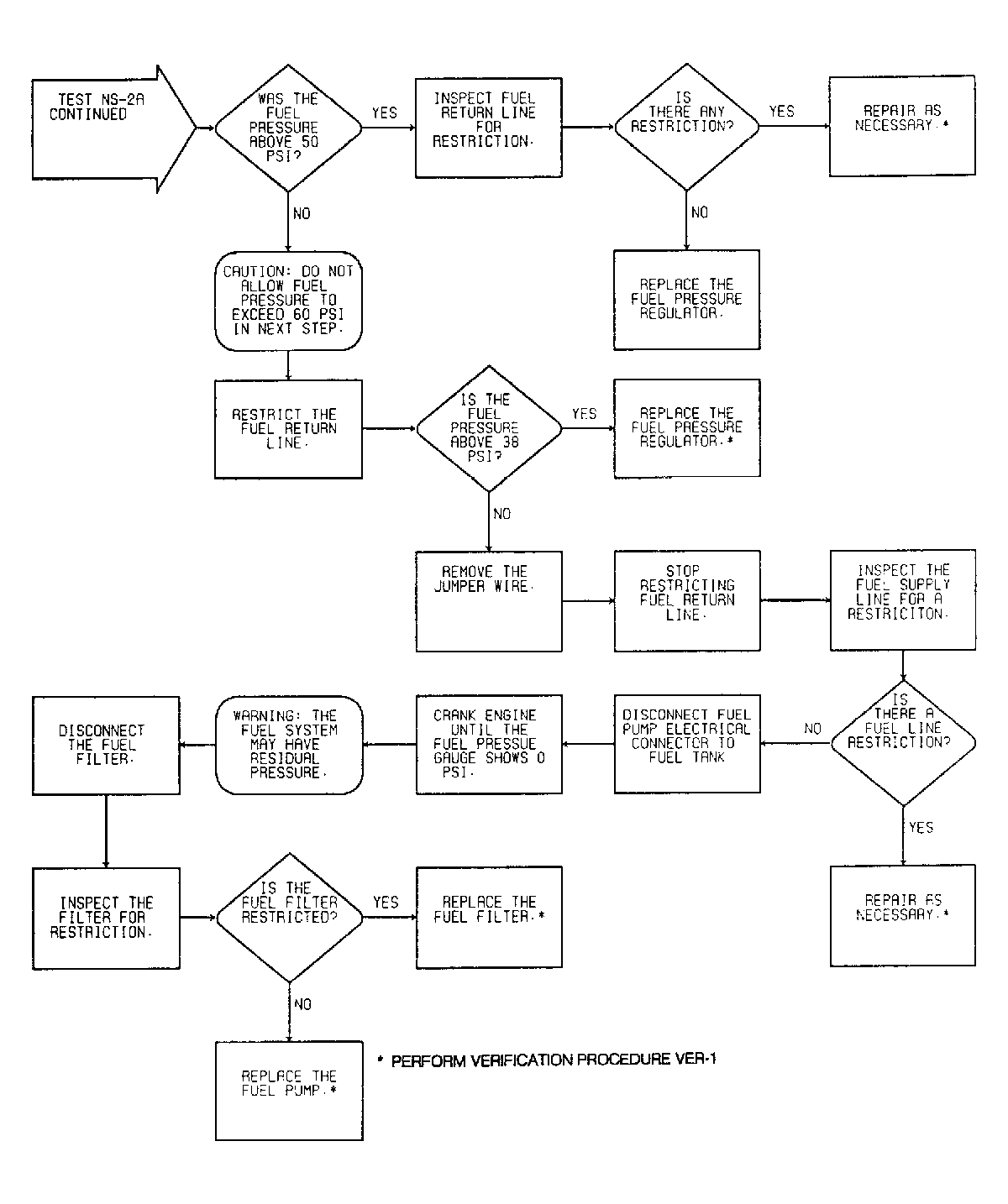

Fig 3: No Start Test NS-2A: Diagnostic Flow Chart (2 of 2)

G91H10782

Fig 4: Test NS-2A Continued

GB0044621
