Continuity Check

  1. Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Check continuity between reed switch terminals No. 1 and 2. See Fig 1 and Fig 2 .
  2. Ensure continuity pulses on and off 4 times per revolution of speedometer shaft connection. If continuity is not as specified, replace reed switch.
Fig 1: Identifying Reed Switch Test Terminals (Colt, Mirage & Summit)
G93B82397Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

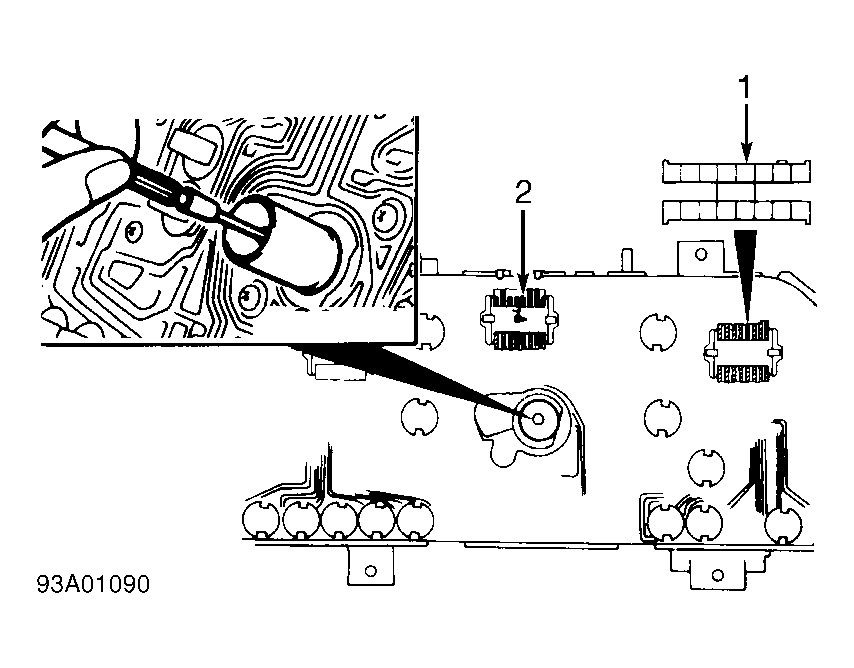

Fig 2: Identifying Reed Switch Test Terminals (Colt Vista, Expo & Summit Wagon)
G93A01090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
