Circuit Tests

During testing, diagnostic procedure(s) may also be referred to as a numbered chart. When performing circuit test, refer to the appropriate wiring diagrams. See WIRING DIAGRAMS .

AUTOMATIC SEAT BELT CIRCUIT TESTING

Diagnostic Procedure

Circuit Test

⁽¹⁾ Figure

Chart No. 1

Control Unit Power Supply & Ground Circuit

Fig 1

Chart No. 2

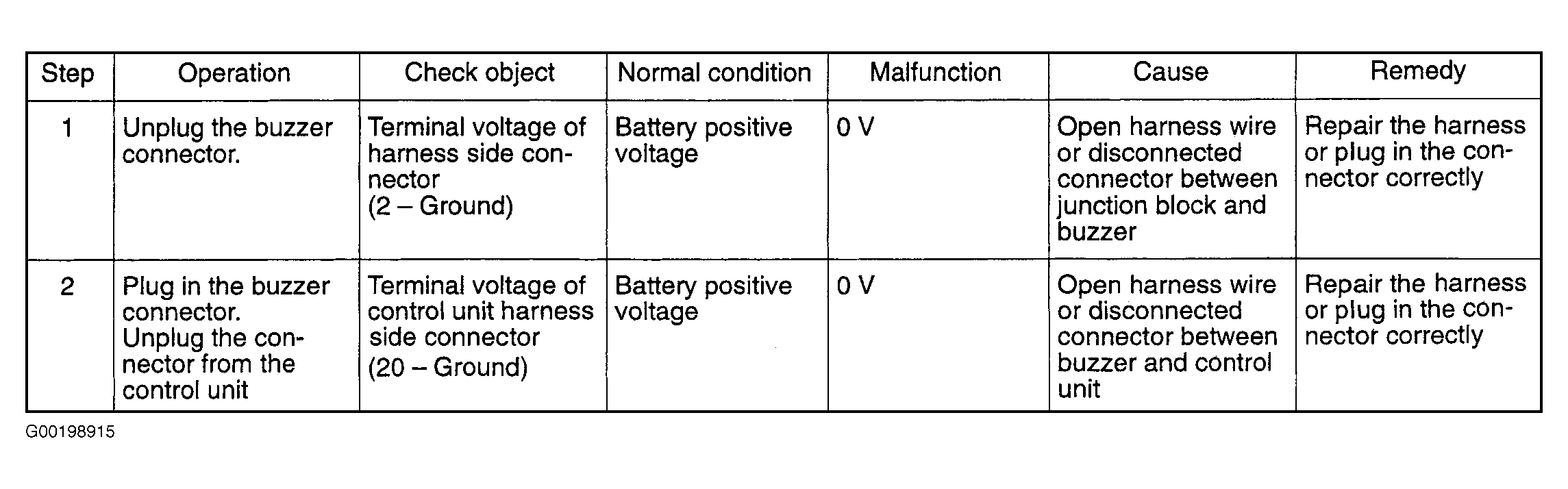

Buzzer Circuit

Fig 2

Chart No. 2

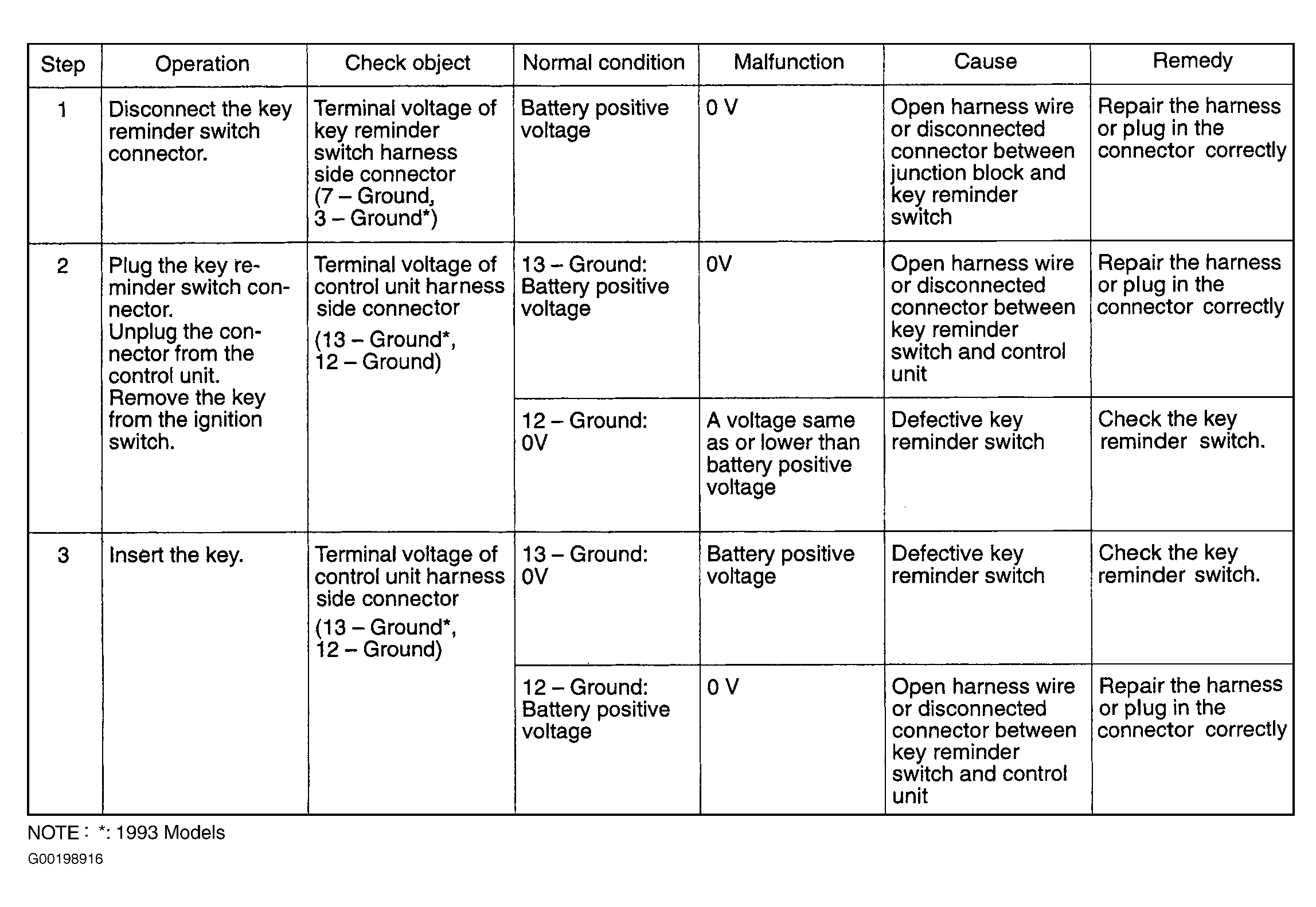

Key Reminder Switch Circuit

Fig 3

Chart No. 3

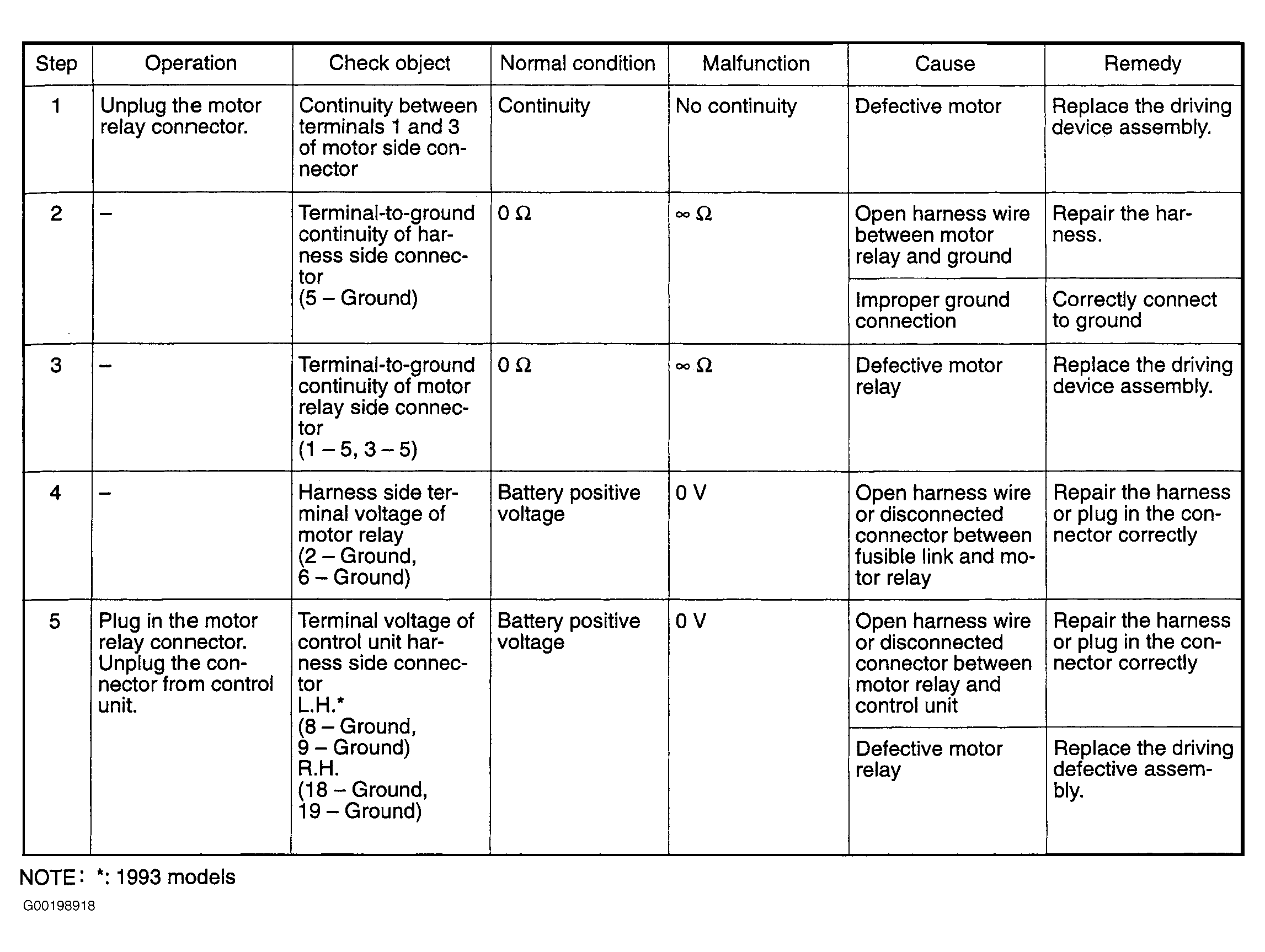

Motor Supply & Drive Circuits

Fig 5

Chart No. 4

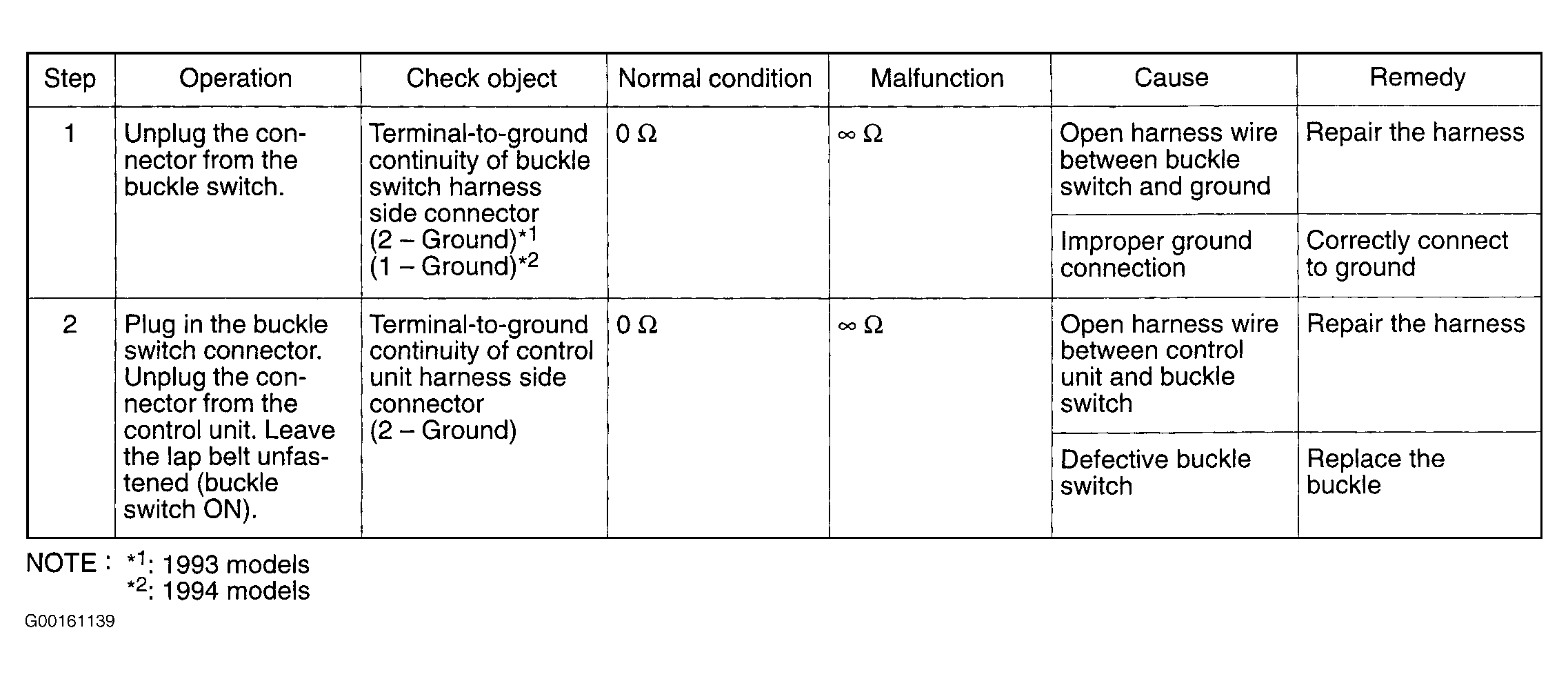

Buckle Switch Circuit

Fig 6

Chart No. 4

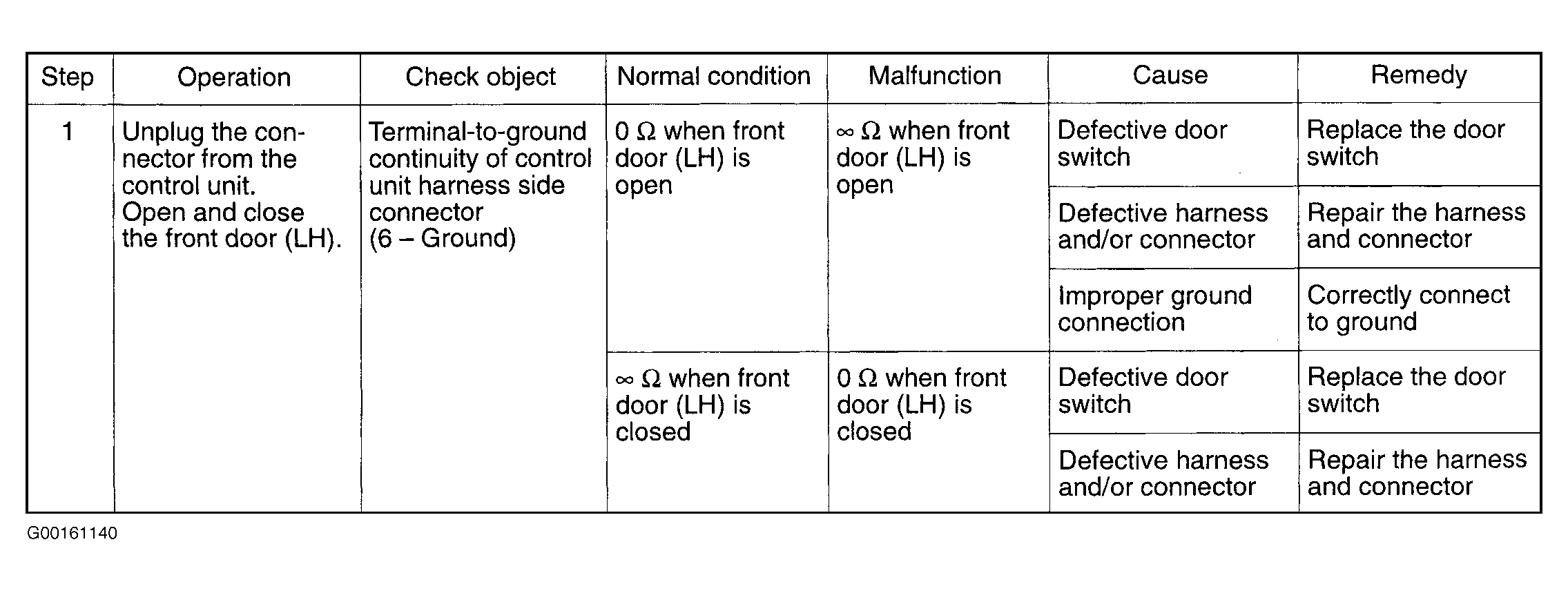

Door Switch Circuit (Driver's Side)

Fig 7

Chart No. 4

Outer Switch Circuit

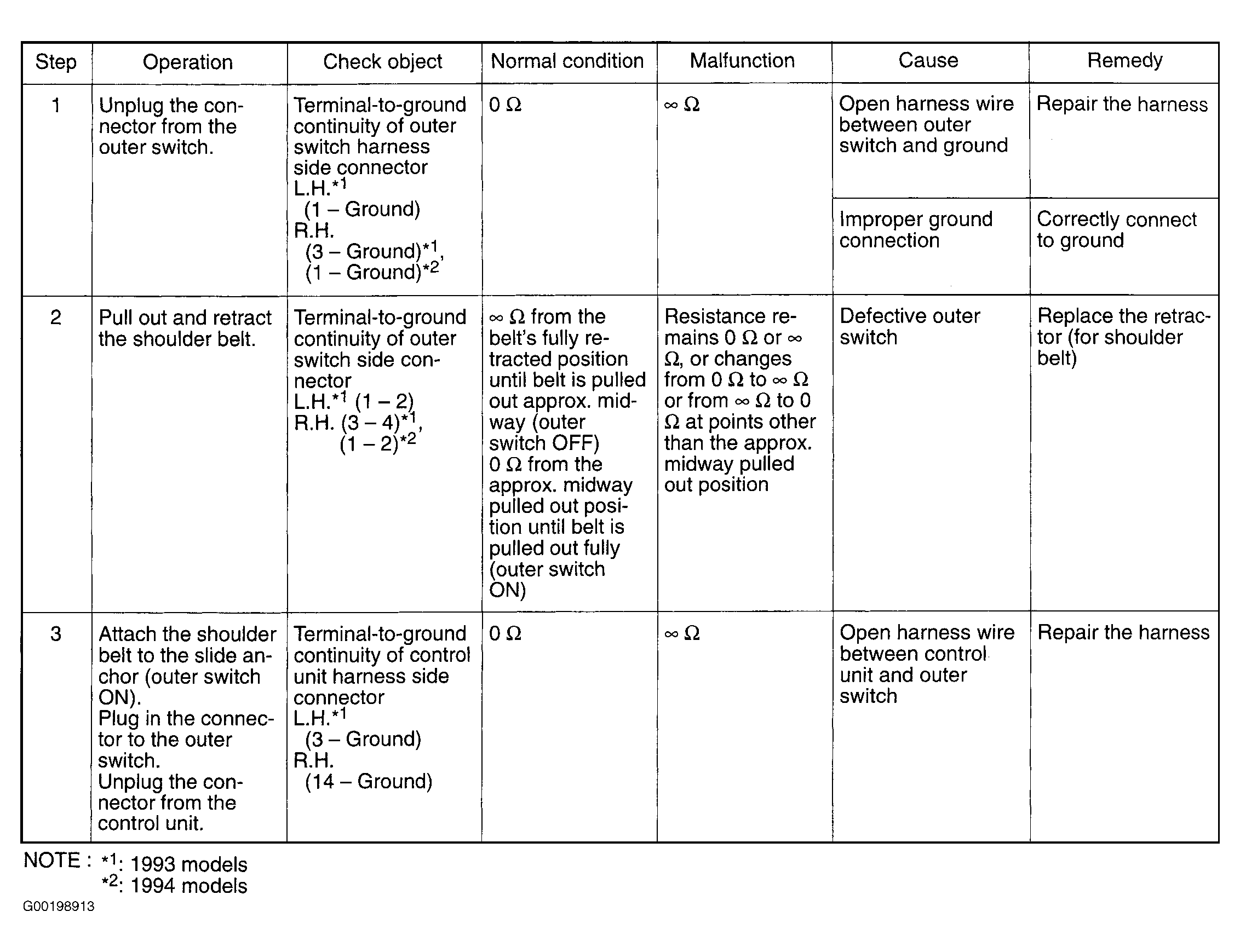

Fig 8

Chart No. 4

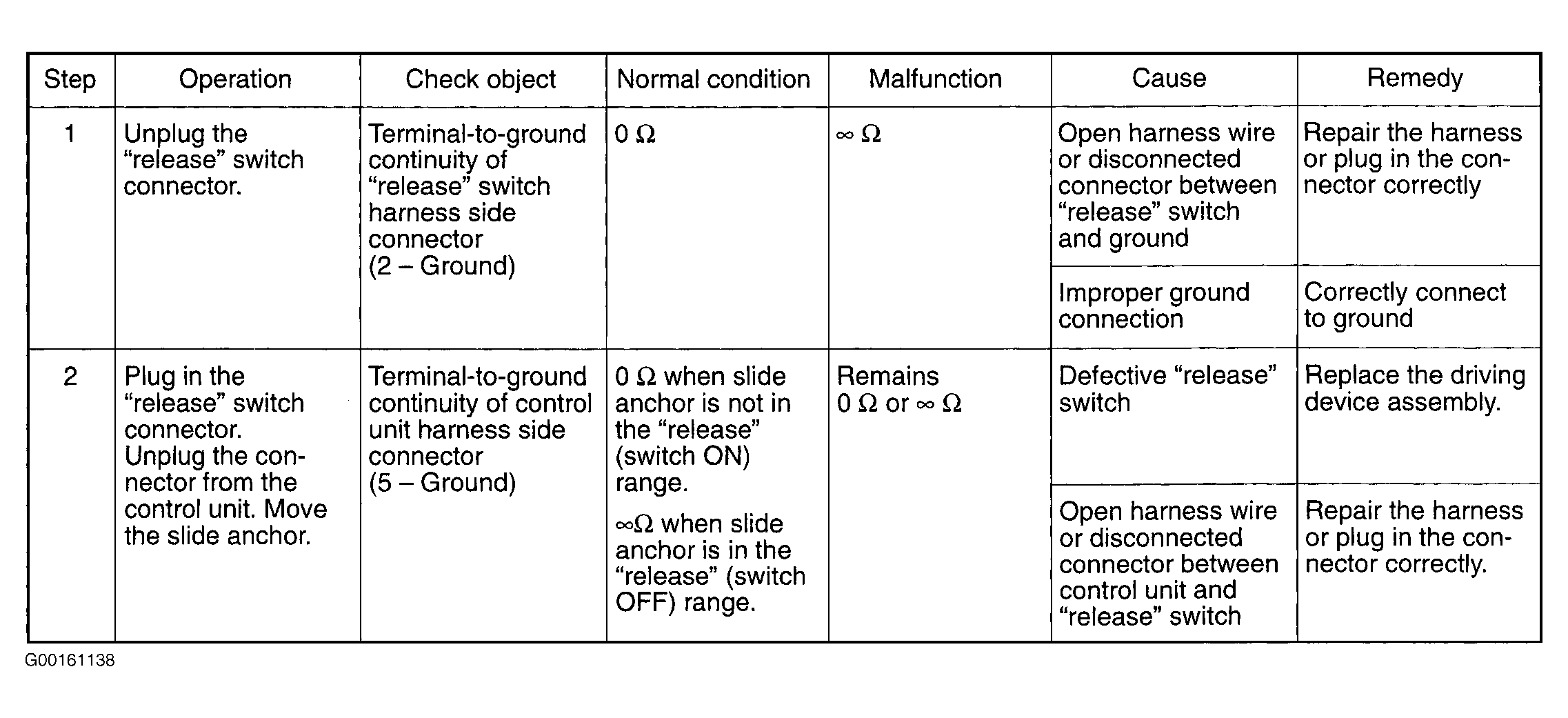

Release Switch Circuit (Driver's Side)

Fig 9

Chart No. 5

Fasten Switch Circuit (Driver's Side)

Fig 10

Chart No. 5

Fasten Switch Circuit (Passenger's Side)

Fig 11

Chart No. 5

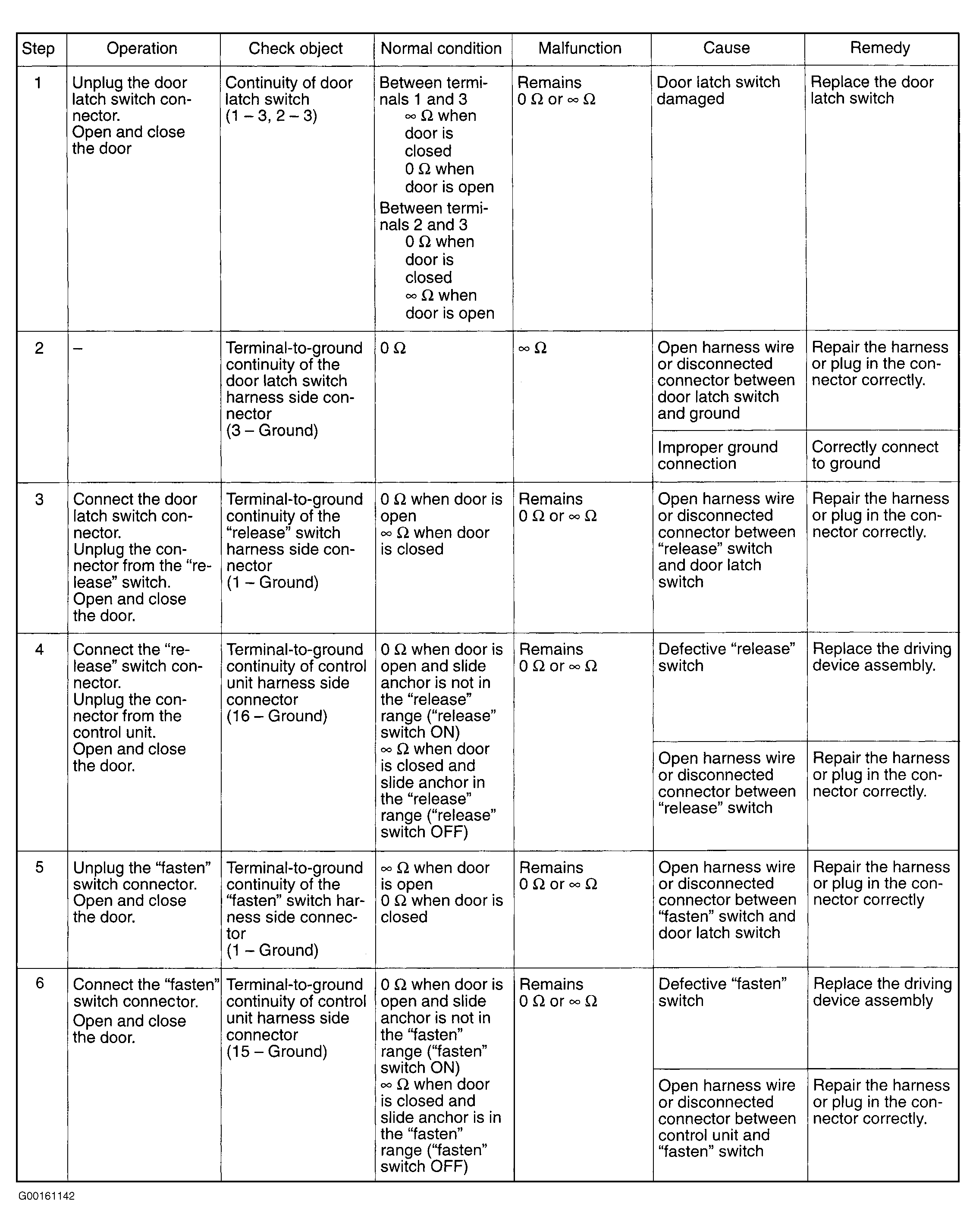

Latch Switch Circuit (Driver's Side)

Fig 10

Chart No. 5

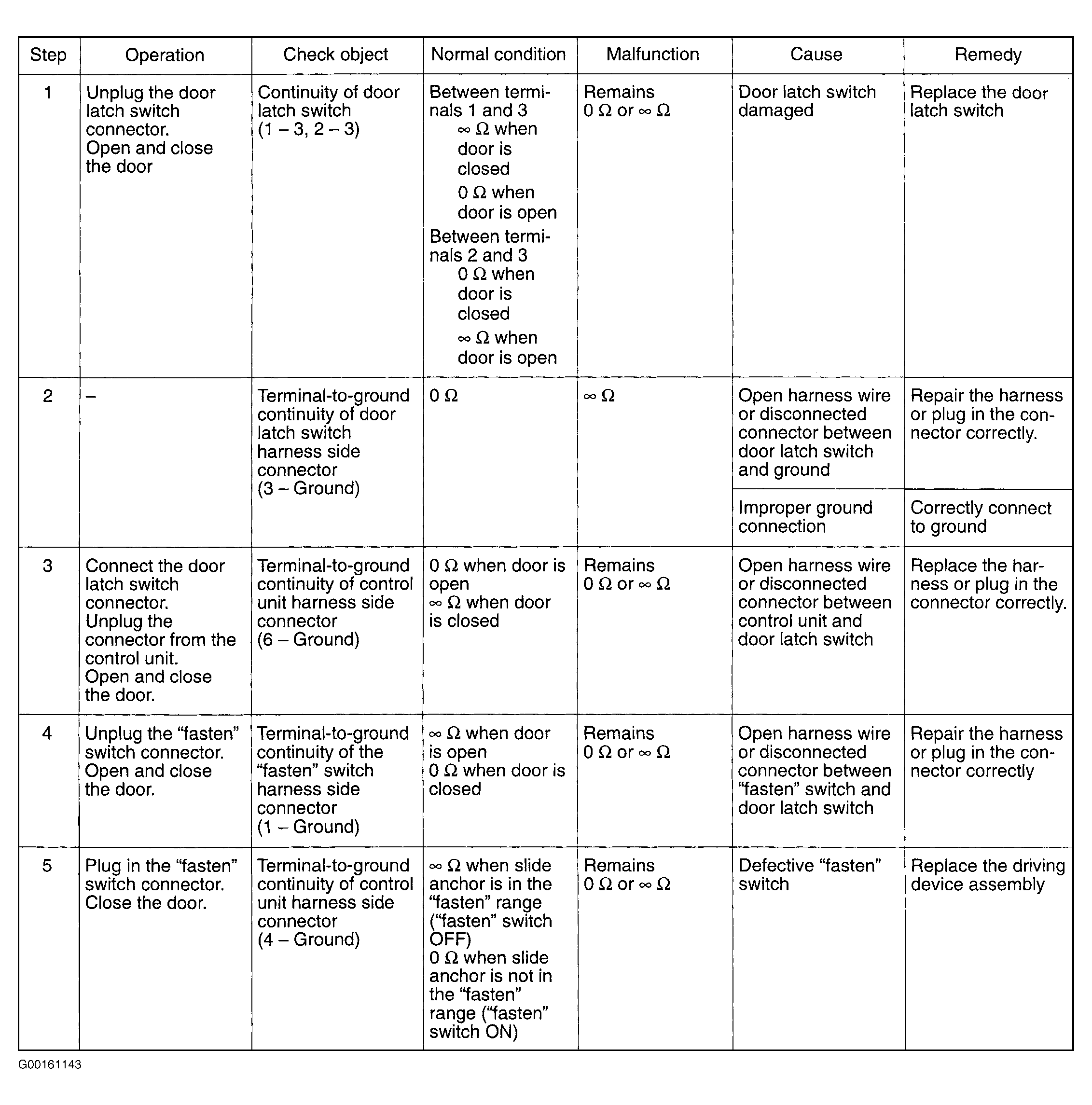

Latch Switch Circuit (Passenger's Side)

Fig 11

Chart No. 5

Release Switch Circuit (Passenger's Side)

Fig 11

Chart No. 2

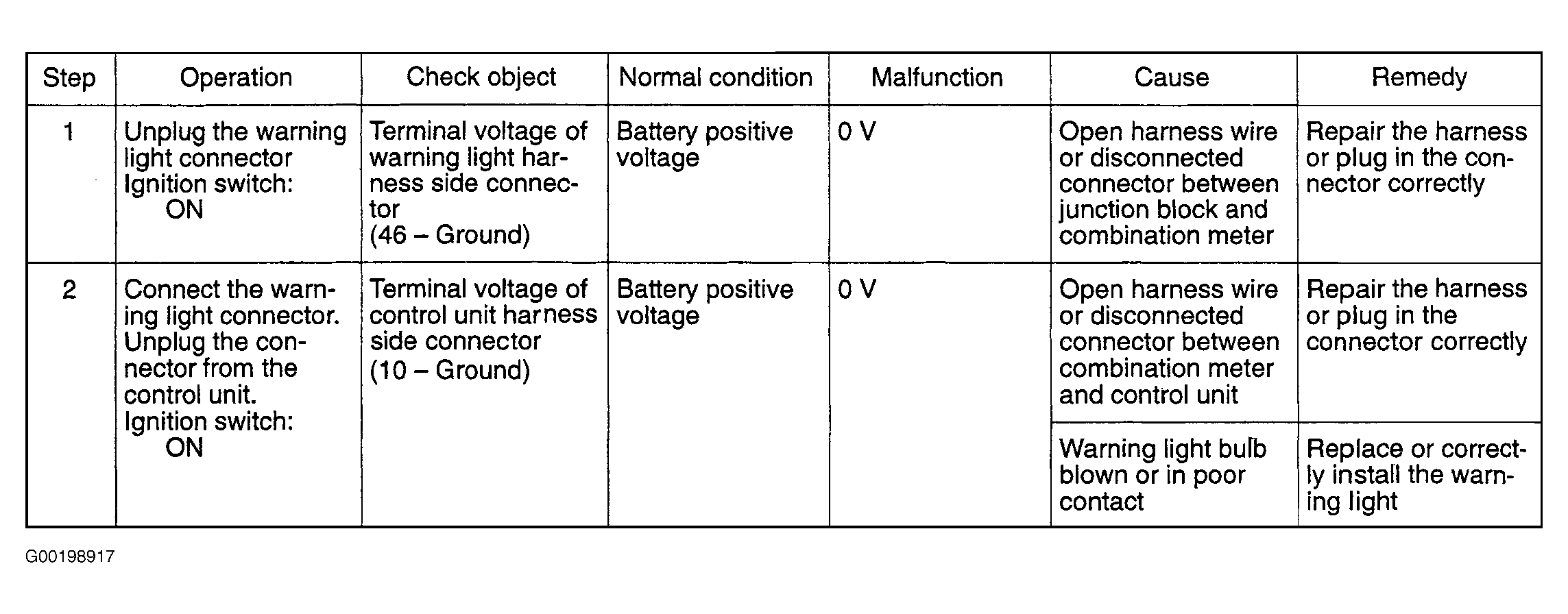

Seat Belt Warning Light Circuit

Fig 4

⁽¹⁾	Each figure contains the diagnostic procedure for the circuit indicated.

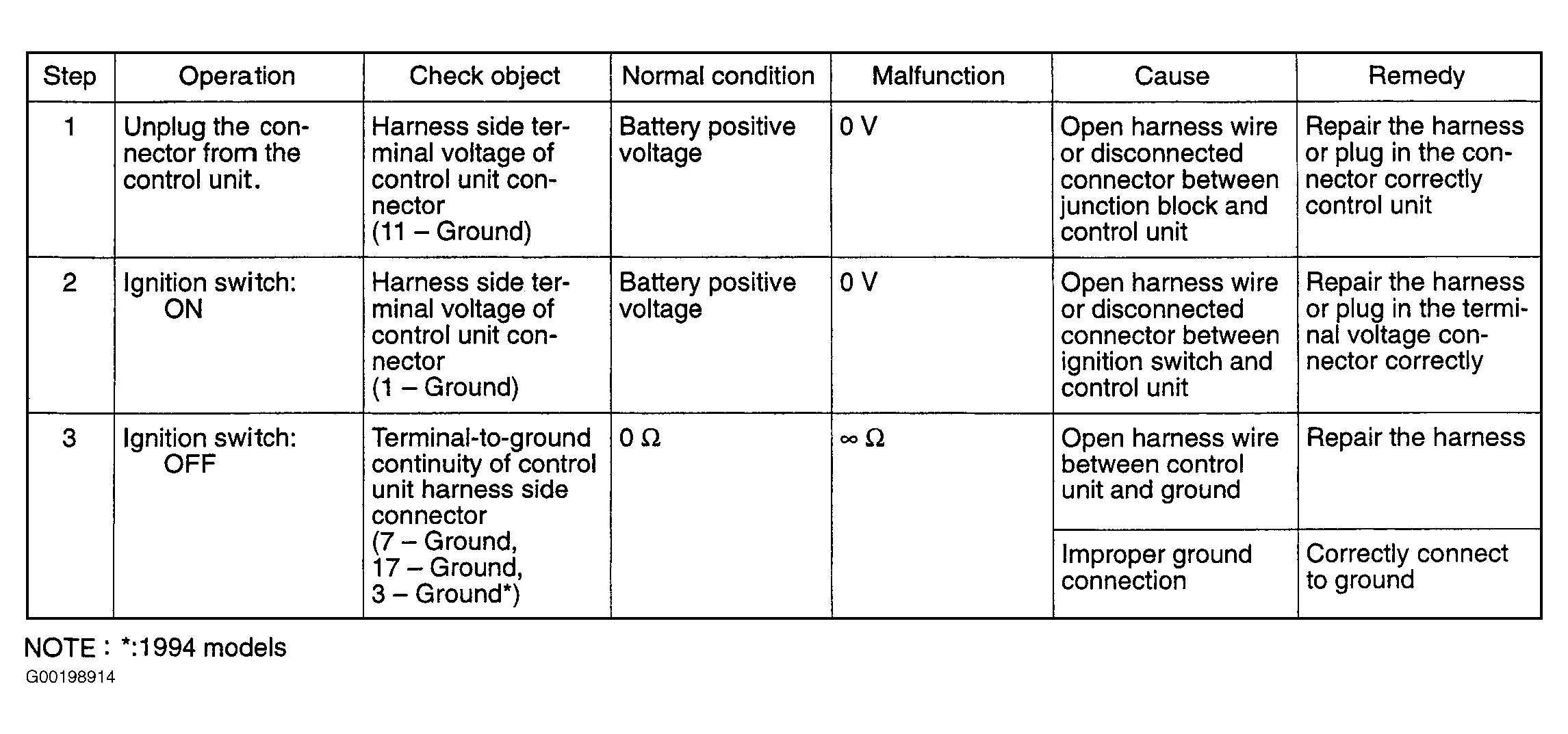

Fig 1: Diagnostic Procedure (Chart No. 1) Control Unit Power Supply & Ground Circuits
