lemon-mirror
:
Home
>>
Eagle
>>
1994
>>
Summit LX, Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Component Tests
>>
Outer Switch
Outer Switch
For test procedures, see
Fig 1
.

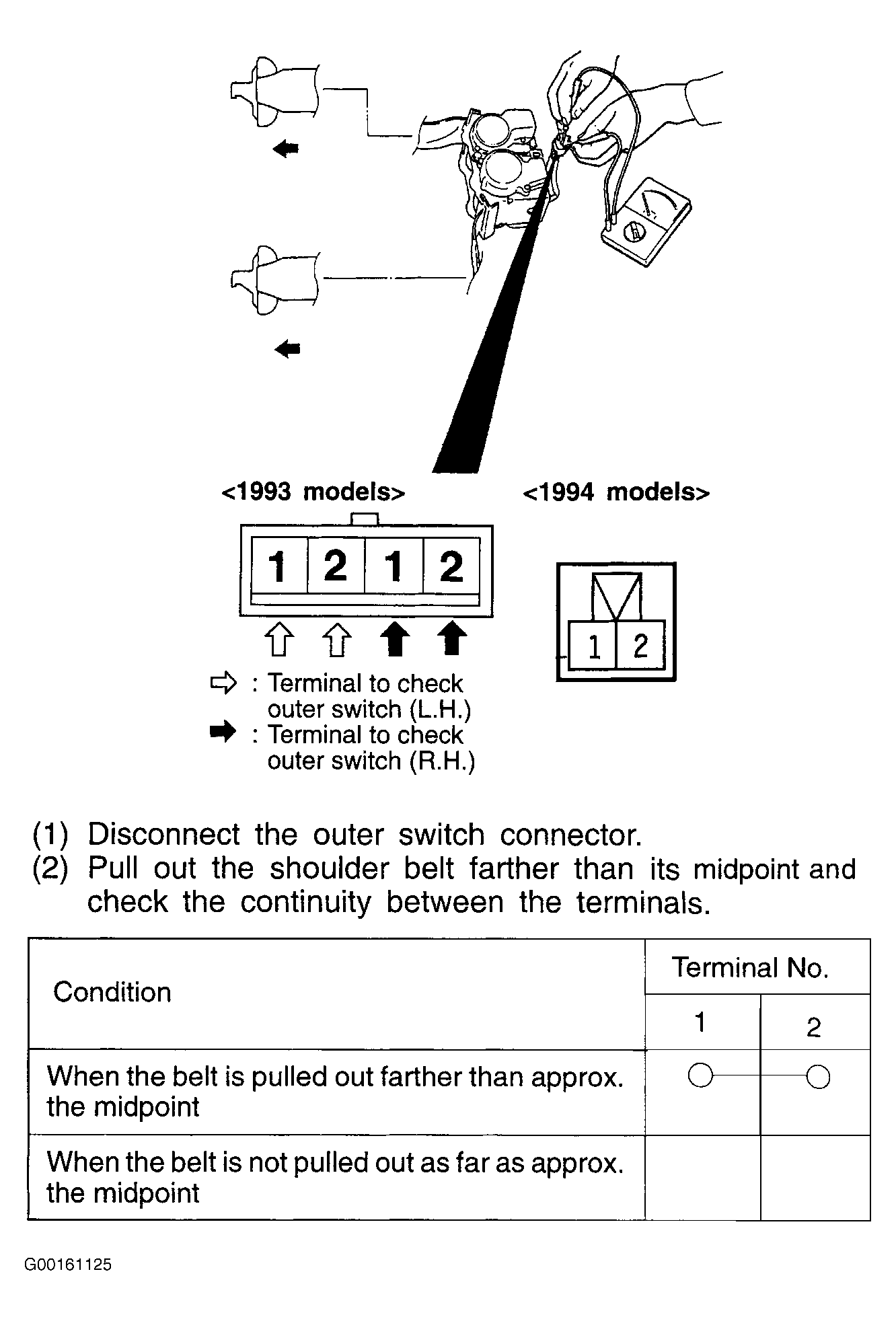

Fig 1: Testing Outer Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
