Component Testing: Relay

  1. Remove radiator fan relay, located in relay box in front of right strut tower. See Fig 1 . Note relay terminal identification. See Fig 2 .
  2. Connect ohmmeter between terminals No. 1 and 3. Check continuity with and without battery connected to terminals No. 2 and 4. See RADIATOR FAN RELAY CONTINUITY  table. Replace relay if continuity is not as specified.

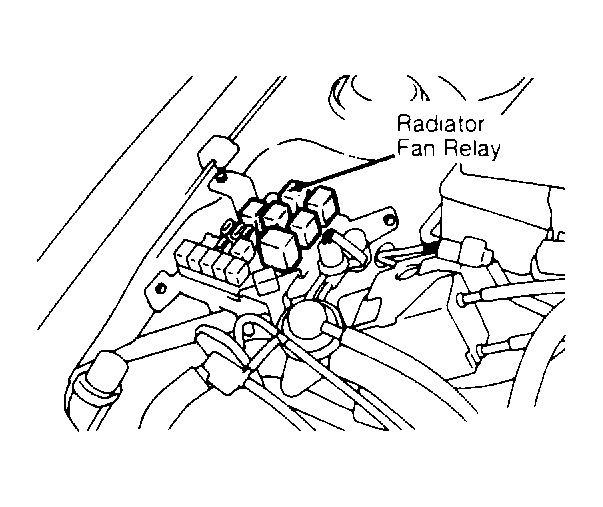

    Fig 1: Locating Radiator Fan Relay
    G90B02518

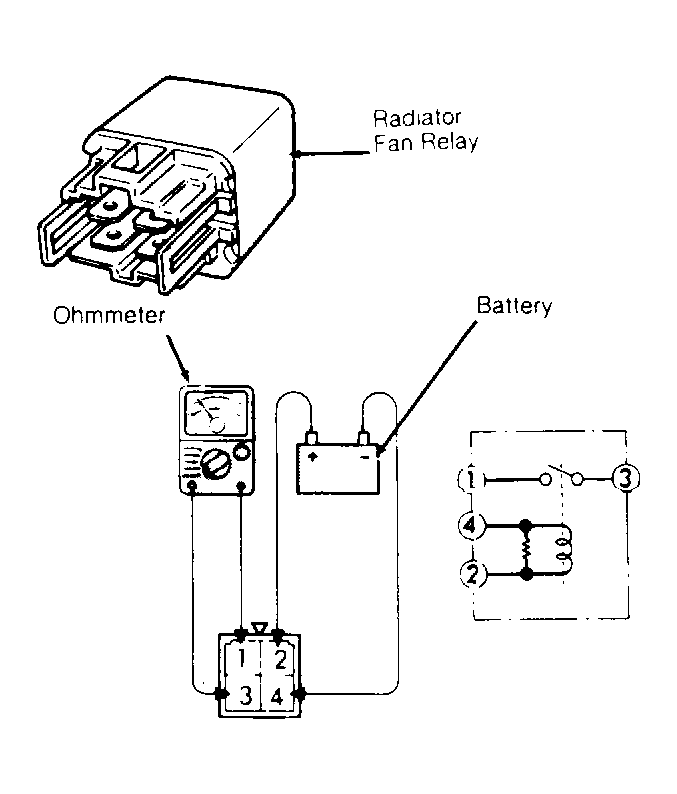

    Fig 2: Testing Radiator Fan Relay
    G90D02519
    RADIATOR FAN RELAY CONTINUITY

    Battery Connected Continuity
    Yes (1) Continuity Between Terminals No. 1 & 3
    No Continuity Between Terminals No. 2 & 4
    No No Continuity Between Terminals No. 1 & 3
    (1) Positive battery terminal connected to terminal No. 2 and negatvie battery terminal connected to terminal No. 4.
