Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| A/C Relay Block | In left rear corner of engine bay. See Figure . | |
| Fusible Links | ||
| Main | Next to battery. | |
| Sub | On relay block, in engine bay. | |

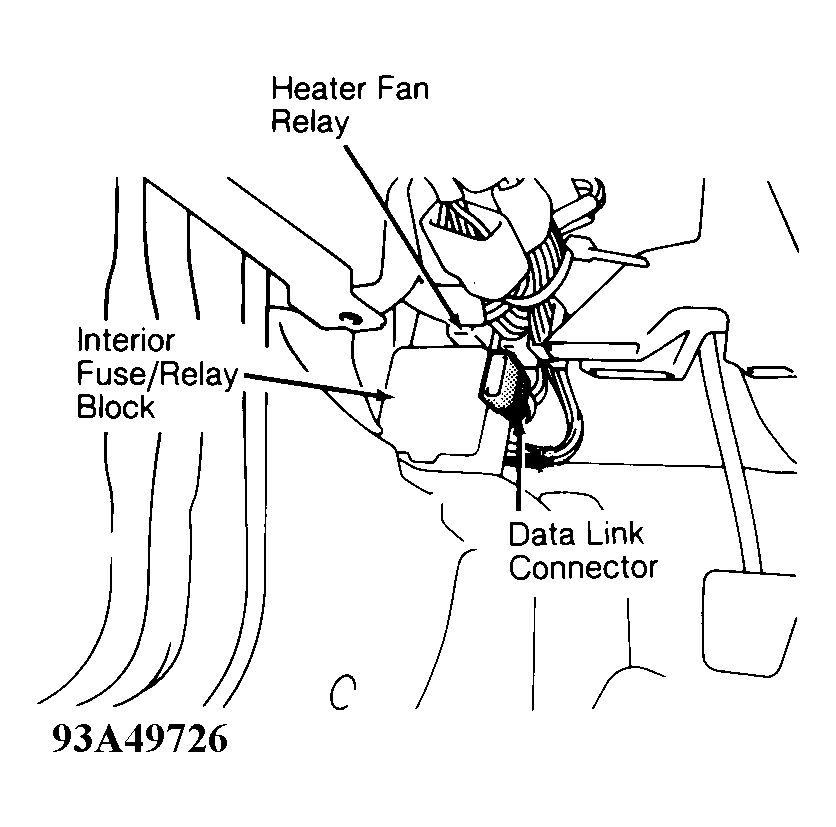

| Interior Fuse Relay/Block | Under left side of dash. See Figure . | |
| Relay Block | In right side of engine bay, on inner fender panel. See Figure . | |
