Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

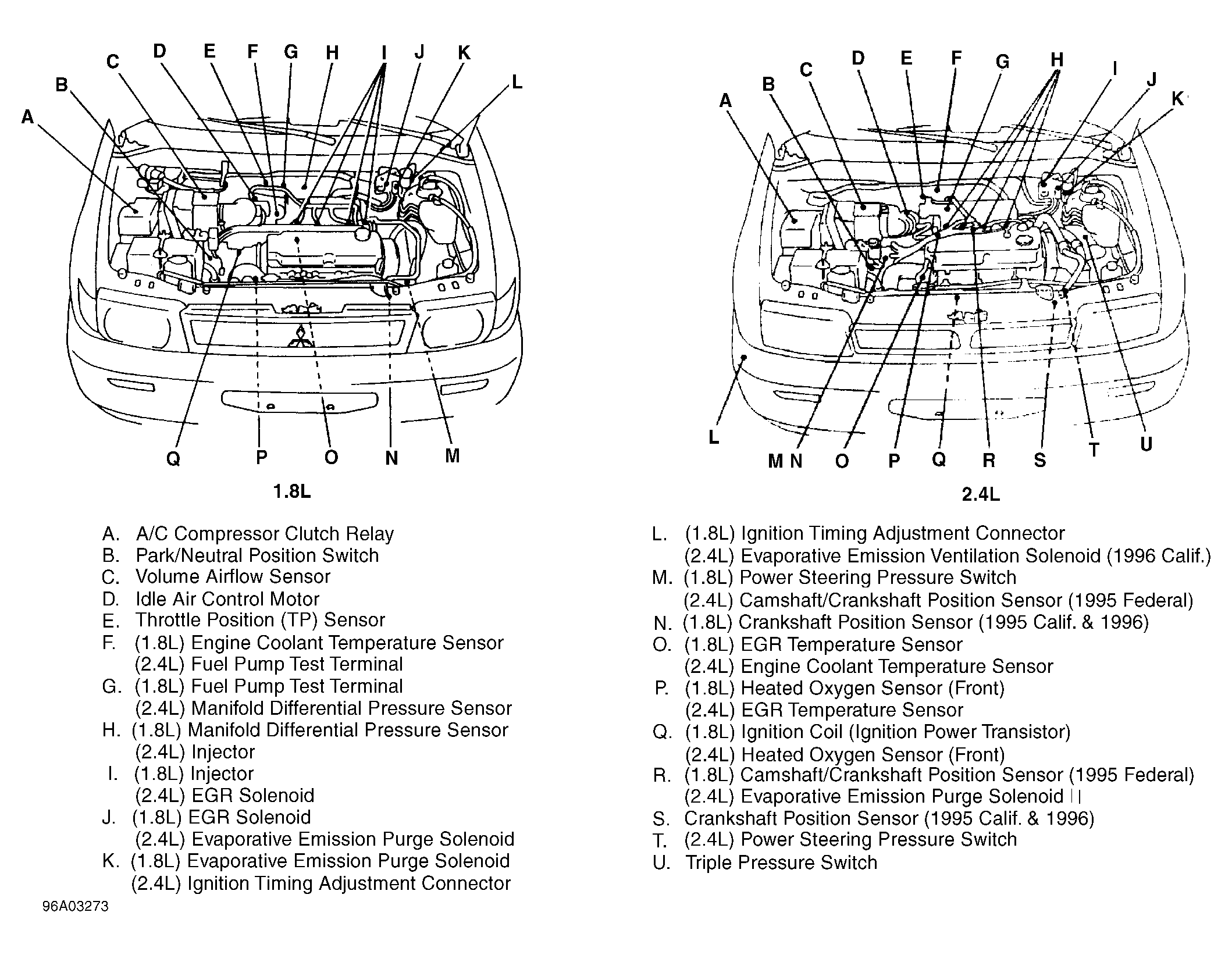

Fig 1: Engine Compartment

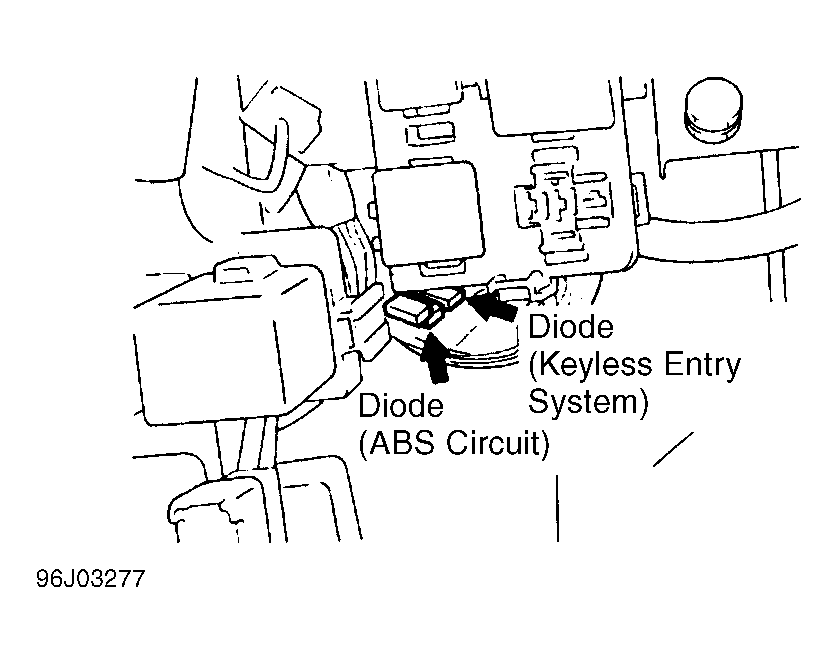

Fig 2: Left Side Of Dash

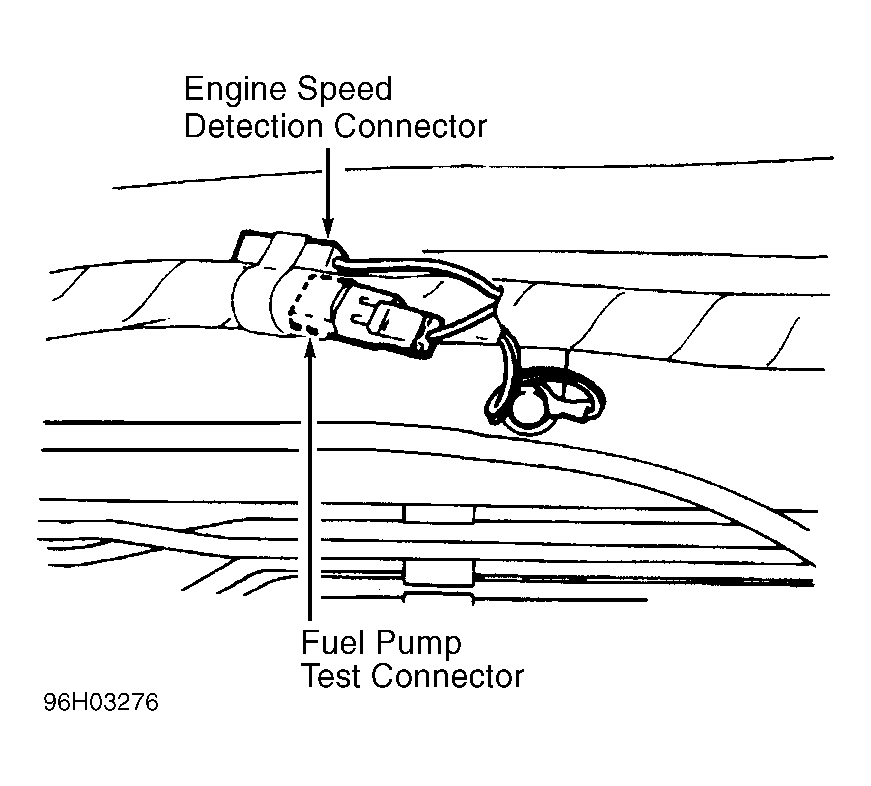

Fig 3: Below Center Of Dash

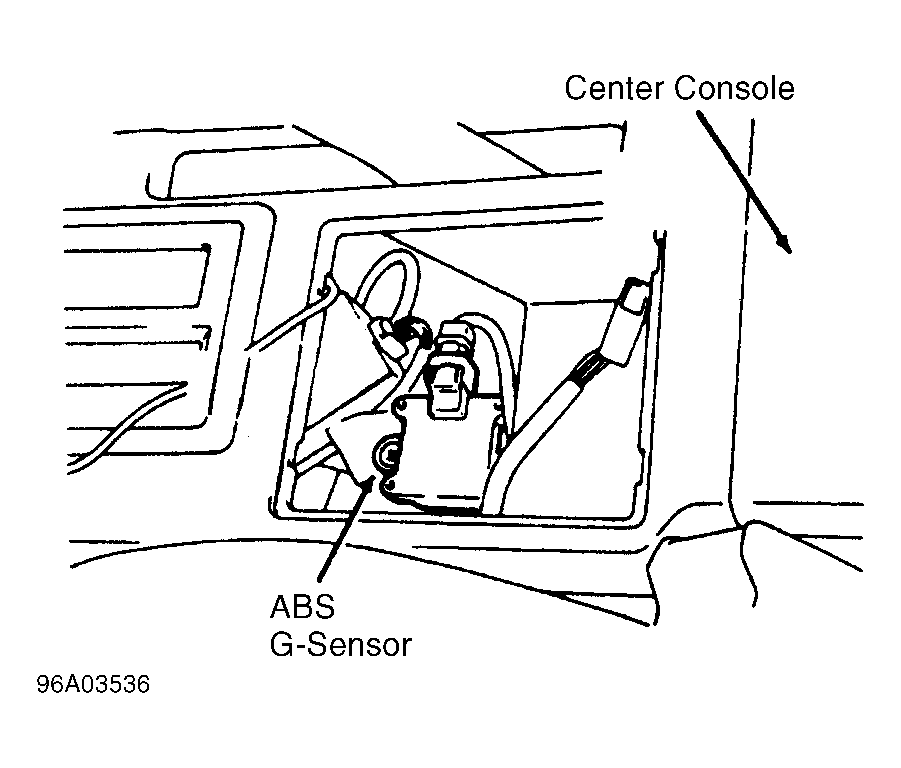

Fig 4: Center Of Dash

Fig 5: Left Side Of Dash

Fig 6: Right Side Of Dash

Fig 7: Center Of Dash

Fig 8: Center Of Firewall

Fig 9: Left Side Of Dash
