"G" Force Sensor: AWD

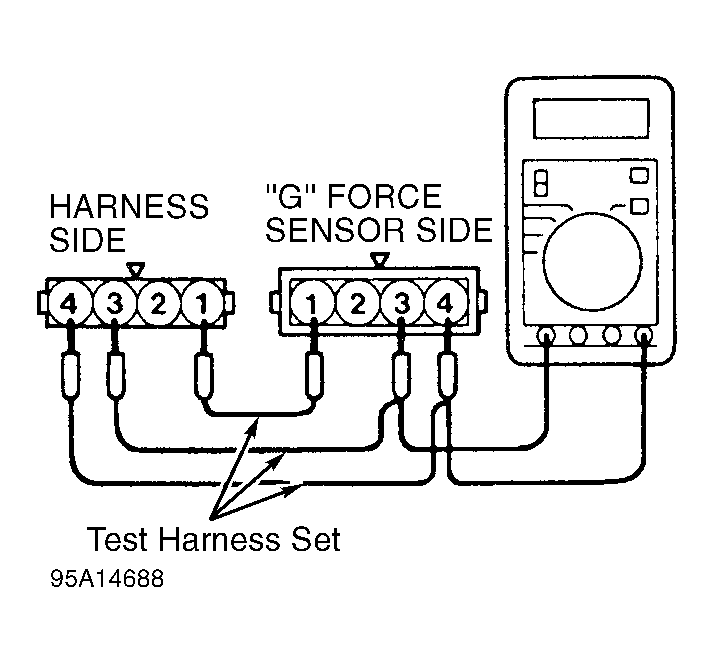

- Disconnect "G" force sensor connector. Connect Test Harness Set (MB991348) between indicated terminals. See Fig 1
. Turn ignition on. Using a voltmeter, check voltage between "G" force sensor connector terminals No. 3 and 4. If reading is 2.3-2.7 volts, go to next step. If reading is not 2.3-2.7 volts, check wiring to "G" force sensor. Repair as necessary. If wiring is okay, replace sensor.
- Leaving test harness set connected, secure "G" force sensor connector so that FRONT mark on mounting surface is facing straight down. Using a voltmeter, check voltage between "G" force sensor connector terminals No. 3 and 4. If reading is 3.1-3.9 volts, sensor is okay. If reading is not 3.1-3.9 volts, check wiring to "G" force sensor. Repair as necessary. If wiring is okay, replace sensor.
Courtesy of CHRYSLER CORP.
