Power Mirror Motor Test

Connect 12-volt power source to mirror connector terminals. See Fig 1 and Fig 2 . Replace mirror as necessary.

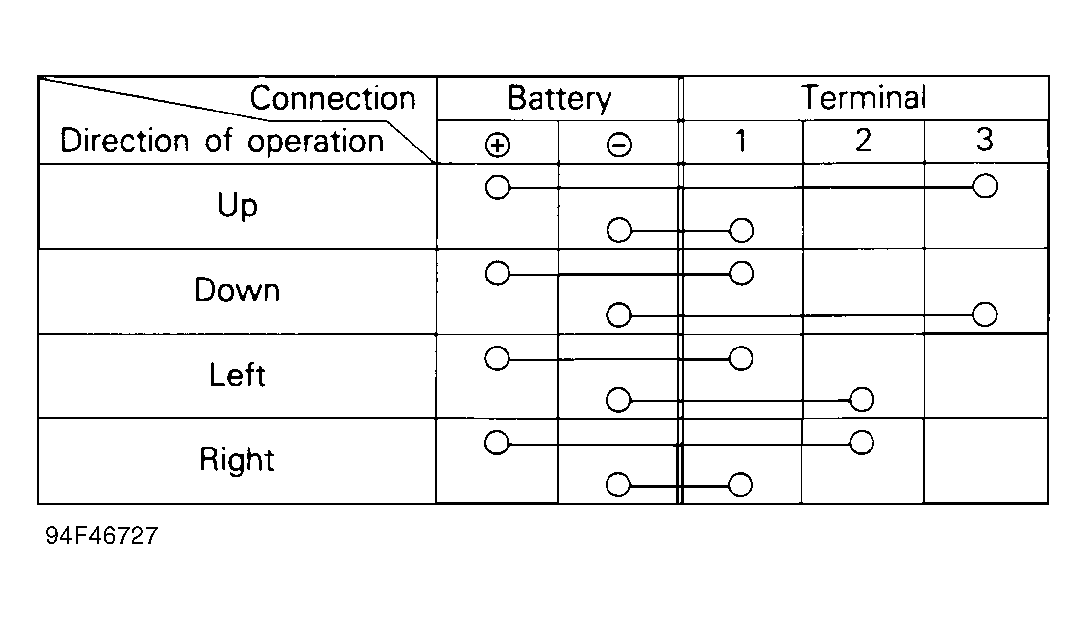

Fig 1: Power Mirror Operational Test Charts

Courtesy of CHRYSLER CORP.

Fig 2: Power Mirror Connector

Courtesy of CHRYSLER CORP.
