Repair and Diagnosis
>>
Engine Performance
>>
Engine Controls - Specifications - 1.8L
>>
Ignition System
>>
Firing Order
Firing Order
WARNING:
On many models, improper arrangement of spark plug wires will cause miss firing and surge during high-speed operation. Ensure spark plug wires are routed as shown.

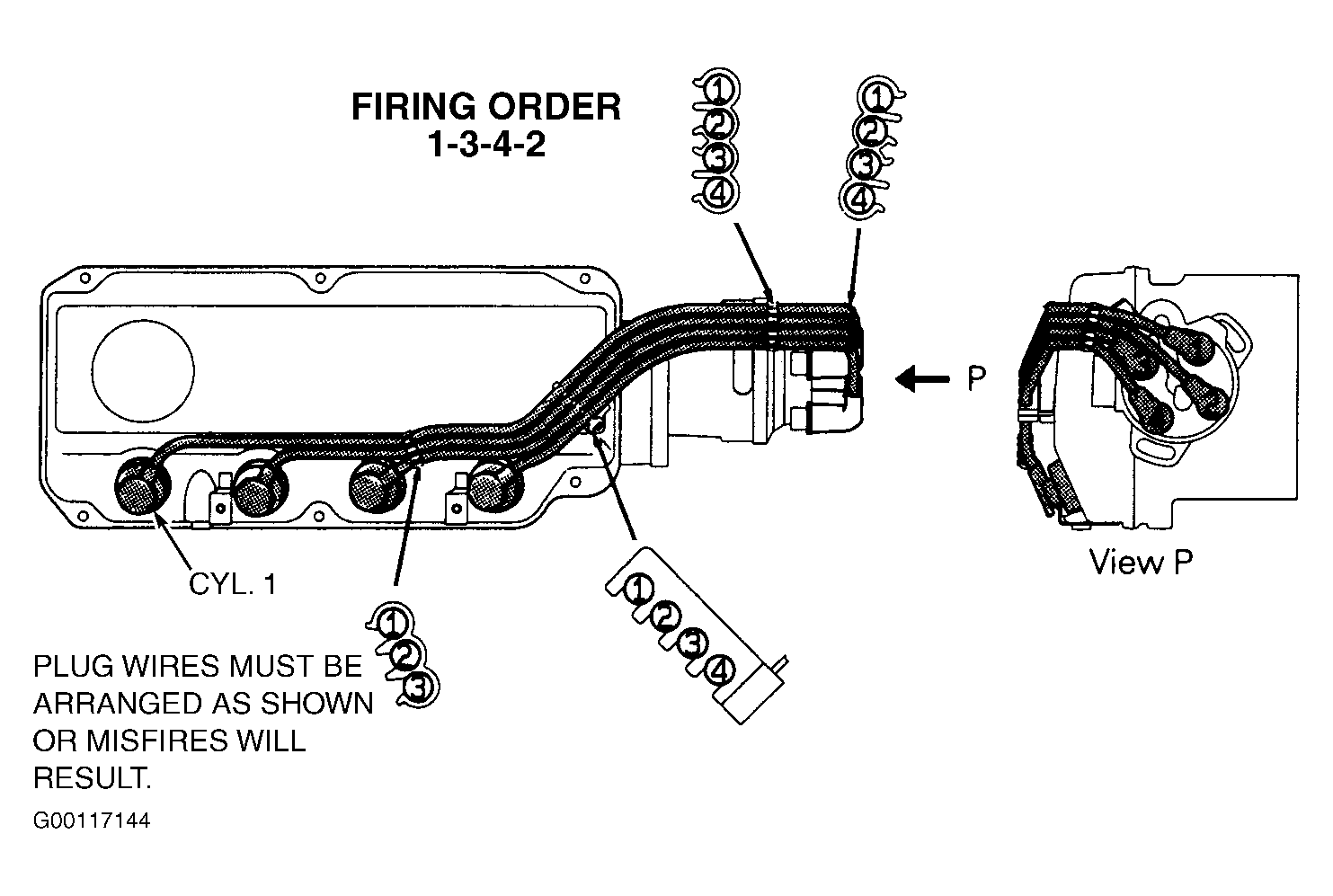

Fig 1: Firing Order & Plug Wire Routing (1.8L)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
