Power Mirror Motor Test

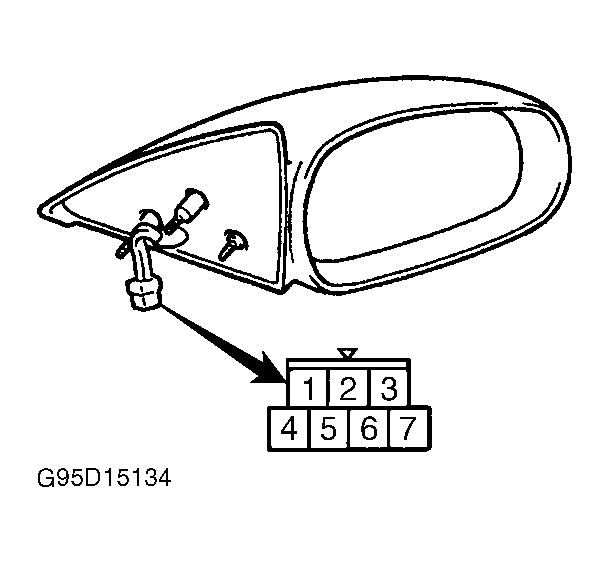

Connect one jumper lead to battery voltage. Connect another jumper lead to chassis ground. Connect other ends of jumper leads to appropriate pins in mirror motor connector. See POWER MIRROR MOTOR TEST . See Fig 1 . Motors should move in appropriate direction and stop at end of mirror travel. If mirror does not operate as specified, replace mirror/motor assembly.
POWER MIRROR MOTOR TEST
| Apply 12 Volts To Pin No. (1) | (1) Ground Pin No. | Mirror Operation | ||
|---|---|---|---|---|
| 7 | 5 | Up | ||
| 5 | 7 | Down | ||
| 5 | 6 | Left | ||
| 6 | 5 | Right | ||
|
||||
