Power Mirror Switch Test

Using ohmmeter, check continuity between power mirror switch connector pins with switch in designated position. See POWER MIRROR SWITCH CONTINUITY TEST . See Fig 1 . If continuity is not as specified, replace power mirror switch.

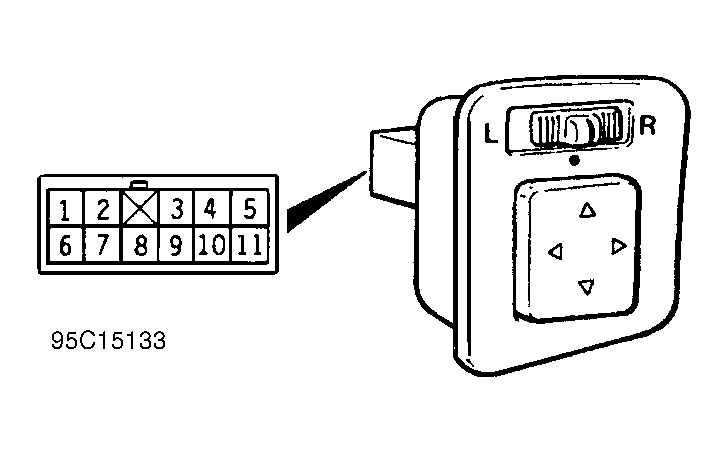

Fig 1: Identifying Power Mirror Switch Connector Pins

Courtesy of CHRYSLER CORP.

POWER MIRROR SWITCH CONTINUITY TEST

Mirror Selector Position

Mirror Angle

⁽¹⁾ Continuity Between Pins No.

"L" (Left)

3 & 4; 5 & 10

Down

3 & 5; 4 & 10

Left

3 & 11; 4 & 10

Right

3 & 4; 10 & 11

"R" (Right)

3 & 4; 9 & 10

Down

3 & 9; 4 & 10

Left

3 & 8; 4 & 10

Right

3 & 4; 8 & 10

⁽¹⁾	Use illustration to identify connector pins. See Fig 1 .
