Power Window Switch
Remove window switch from trim panel. Using ohmmeter, check window switch continuity. See appropriate WINDOW SWITCH CONTINUITY table. See Figure or Figure . Replace window switch as necessary.

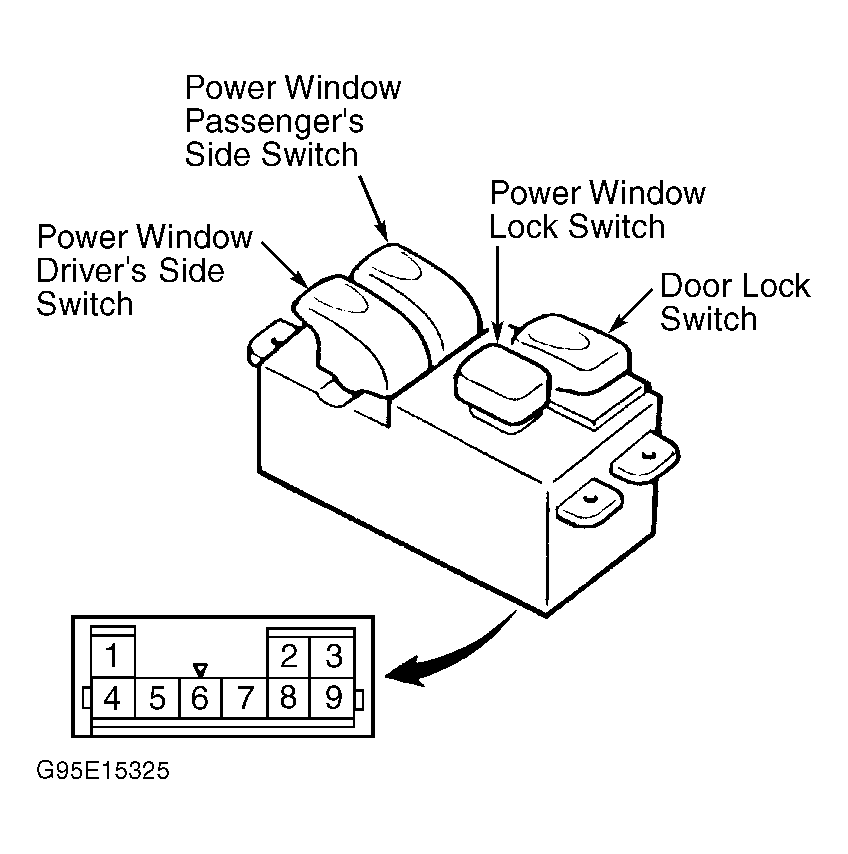

DRIVER'S WINDOW SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. | |||
|---|---|---|---|---|
| Driver's Side Switch | ||||
| Off | 2, 6 & 9 | |||
| Up | 2 & 6; 8 & 9 | |||
| Down Or Auto Down | 6 & 8; 2 & 9 | |||
| Passenger's Side Switch | ||||
| Off | 3 & 7 | |||
| Up | 3 & 8 | |||
| Down | 7 & 8 | |||
| Window Lock Switch | ||||
| Normal | 2 & 3; 2 & 7 | |||
| Lock | (1) | |||
|
||||

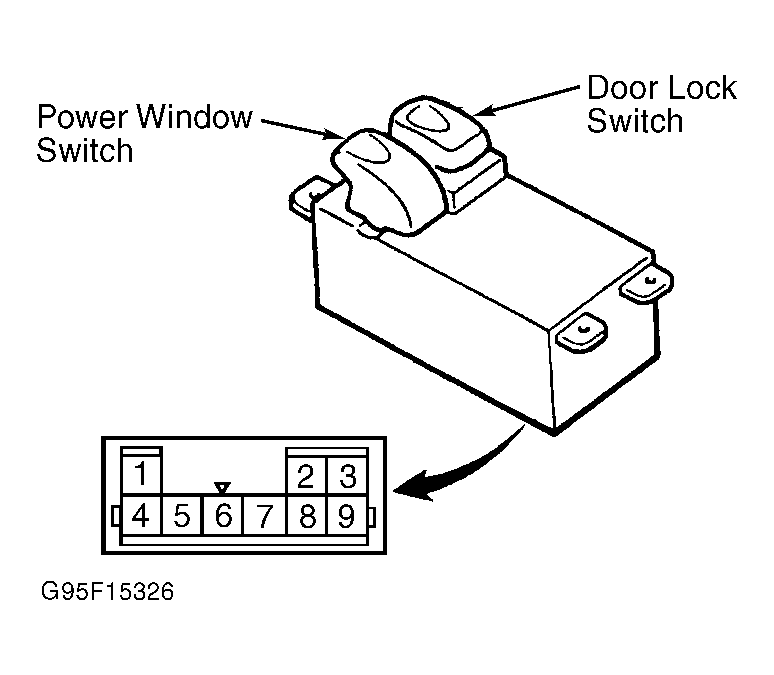

PASSENGER'S WINDOW SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Off | 1 & 4; 2 & 3 |
| Up | 1 & 4; 3 & 6 |
| Down | 1 & 6; 2 & 3 |
