Amperage Output Test
NOTE:
Ammeter with inductive pick-up clamp-type test lead is recommended. Perform test soon after starting engine, as charging amperage will drop quickly.

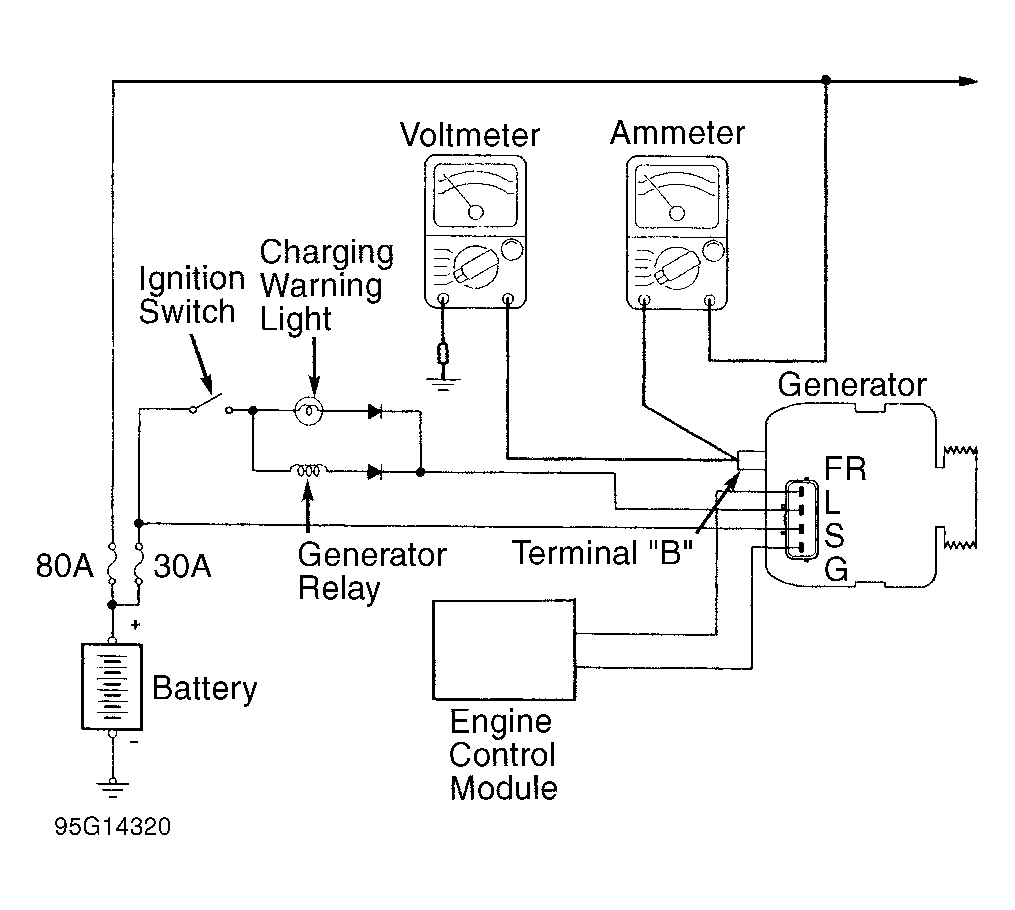

- Disconnect negative battery cable. Disconnect generator output wire from generator terminal "B". See Fig 1. Connect zero to 100-amp ammeter in series between terminal "B" and disconnected output wire. Connect positive lead of ammeter to terminal "B" and negative lead to disconnected output wire. Connect a DVOM between terminal "B" and ground. Reconnect negative battery cable.
- Voltmeter should read battery voltage. If voltmeter reads zero volts, check for an open in wire between generator terminal "B" and positive battery terminal, a blown fusible link or a poor ground connection.
- Turn on all electrical accessories. Start engine and accelerate to 2500 RPM. Read maximum amps output. If generator amps output is within specification, generator is functioning properly. See GENERATOR AMPERAGE SPECIFICATIONS table.
GENERATOR AMPERAGE SPECIFICATIONS (1)
| Application | Rated Output-Amps | Minimum Output-Amps | ||
|---|---|---|---|---|
| Canada | 90 | 63 | ||
| USA | 75 | 53 | ||
|
||||
