Engine Controls - Tests W/Codes - Turbo
>>
Component Locations
Component Locations
NOTE:
For general location of engine control system components, see
Fig 1
.

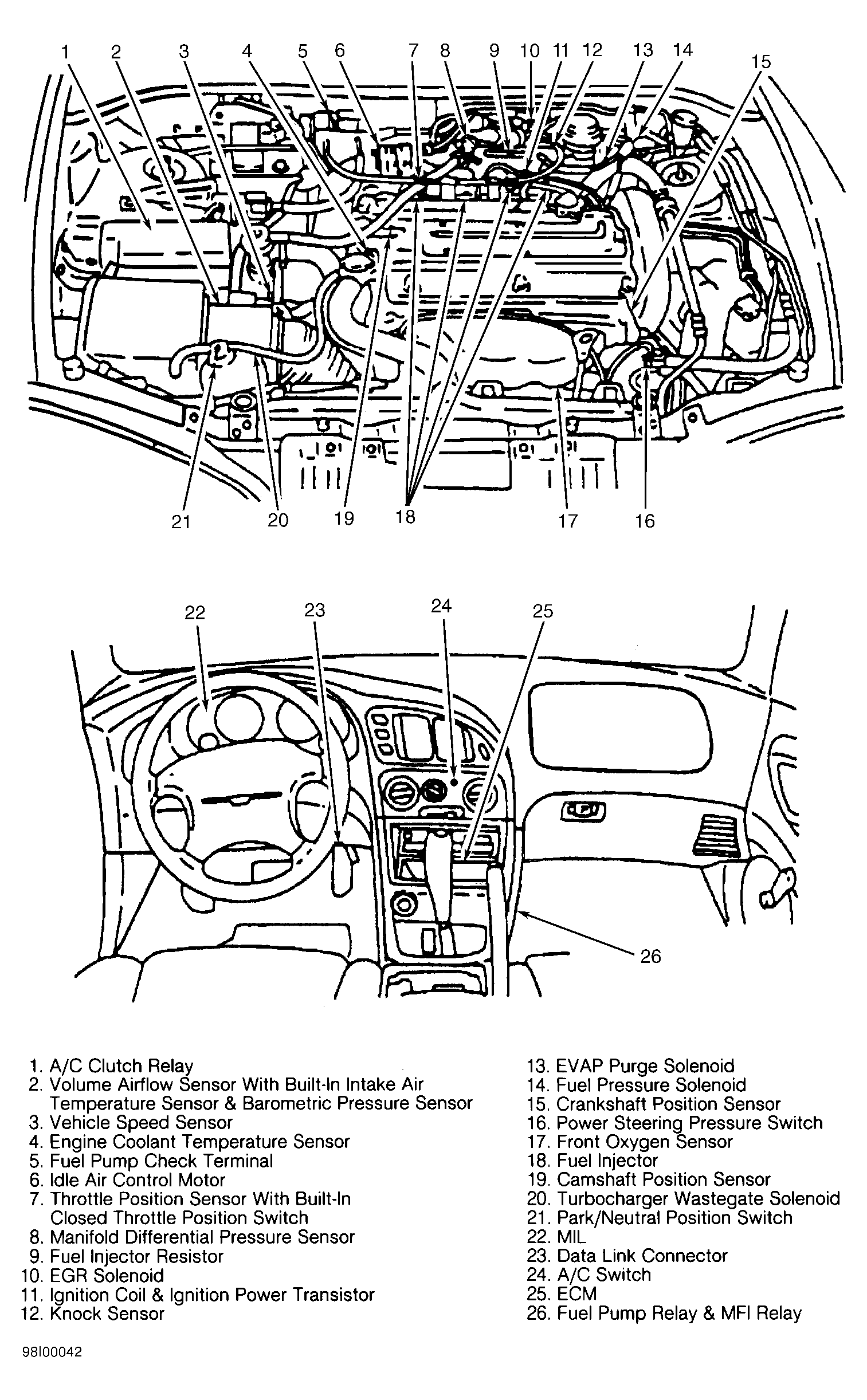

Fig 1: Locating Engine Control System Components
Courtesy of CHRYSLER CORP.
