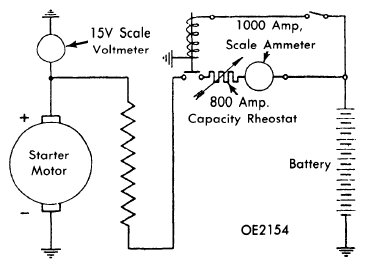

Stall (Lock) Test
With starter mounted in test stand and ring gear locked, adjust test stand rheostat to values specified (see specifications) and observe torque on dial indicator.
Cranking Amperage Draw
| Starter No. | Amps @ RPM(1) | Torque (Ft.Lbs.) | ||
|---|---|---|---|---|
| E 84-0.8/12 | 170 @ 1900 | 2.89±.14 | ||
| E 100-1.3/12 | 280 @ 1600±100 | 5.87±.14 | ||
|
||||
Brush Spring Tension - E 84-0.8/12 - 2.5-2.9 lbs. (1.15-1.3 kg); E 100-1.3/12 - 2.2±.2 lbs. (1 ±0.1 kg).
Rotation (Pinion End) - Clockwise.
Armature End Play - E 84-0.8/12 -.0039.0197" (0.1-0.5 mm); E 100-1.3/12 -.003-.027" (0.07-0.70 mm).
STARTER PERFORMANCE SPECIFICATIONS
| Model | No Load Test (1) | Lock Test | |||||
|---|---|---|---|---|---|---|---|
| Amps. | RPM | Amps. | Volts | Torque | |||
| E 84-0.8/12 | Below 30 | 7000±1000 | 315 | 7±0.3 | 6.7±.43 | ||
| E 100-1.3/12 | Below 28 | 5200±500 | 530 | 7±0.3 | 12.58±.7 | ||
|
|||||||
