MARELLI Alternators: Overhaul: Testing: Brushes

The spring pressure on slip ring brushes should be about one pound (0.43 kg), with new brushes in operation position.

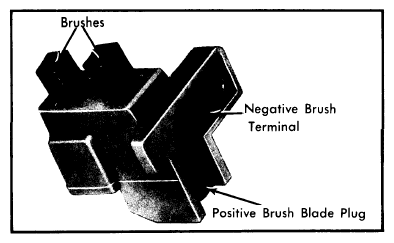

Fig 1: Brush Holder Assembly

Courtesy of NOT AVAILABLE
