MARELLI Regulators: Specifications

Application	Specification
Alternator Test	RPM 4000 to 5000
1st Stage Testing (Amps)	40-45
2nd Stage Testing (Amps)	10-14
2nd Stage Testing (Volts)	14.2±.3

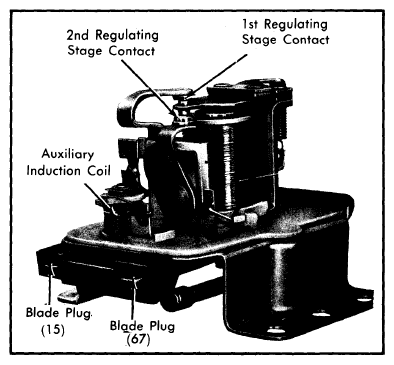

Fig 1: Marelli Voltage Regulator

Courtesy of NOT AVAILABLE
