Repair and Diagnosis: Electrical: Starter: Starters: Overhaul: Reassembly

Lubricate inner splined face of drive assembly with SAE 10 motor oil before installing drive on armature shaft. Reverse disassembly procedure to complete overhaul.

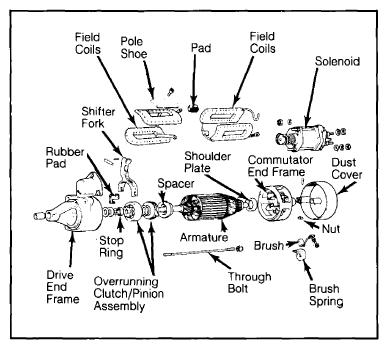

Fig 1: Disassembled View of Fiat Starter Motor

Courtesy of NOT AVAILABLE
