Cooling System Components

The cooling system consists of:

• Electric cooling fan
• Radiator
• A coolant recovery system
• Thermostat
• Water pump
• Transmission oil cooler
• Radiator pressure cap
• Coolant
• Water pump
• Hoses and hose clamps

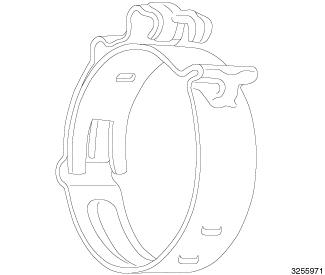

Fig 1: CLIC E® and CLIC R® Clamps

Courtesy of CHRYSLER GROUP, LLC

Hose clamps called the CLIC E® and the CLIC R® are used to ensure a more even distribution of the clamping force.

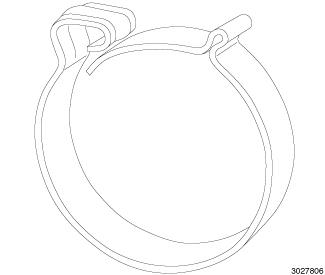

Fig 2: CLIC E® Clamp

Courtesy of CHRYSLER GROUP, LLC

CLIC E®

- Used for most applications that have a large variation of expansion and contraction. Equipped with a spring. The clamp is able to adjust while ensuring proper tension. If the clamp is removed for repairs. It can be reused.

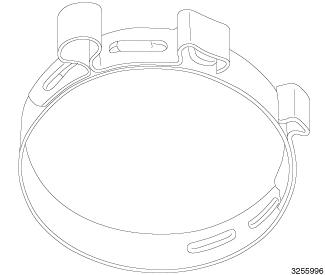

Fig 3: CLIC R® Clamp

Courtesy of CHRYSLER GROUP, LLC

CLIC R®

- Used for most applications that require a capacity reserve designed to compensate for the tolerance ranges of the hoses and spigots to be tightened. If the clamp needs to be removed for repairs. The clamp must be replaced to ensure proper fitting to that component.

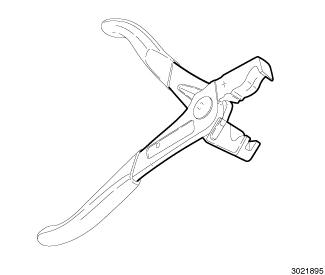

Fig 4: CLIC Style Pliers

Courtesy of CHRYSLER GROUP, LLC

It is highly recommended that the use of a CLIC style pliers (Miller tool #(special tool #10288, Pliers, Hose Clamp)) be used for proper installation and removal of the CLIC® clamps. The use of specific tools for the clamp, will allow it to be reused.

The use of non CLIC® style pliers (screwdrivers, vice grips, channel locks, etc.) may damage the clamp and the clamp must be replaced.
