Lock Housing, Steering Column: Installation: Installation

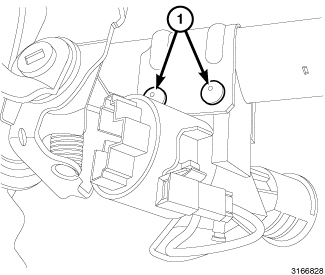

Fig 1: Retaining Bolt

Courtesy of CHRYSLER GROUP, LLC

1. Position lock housing assembly into the bracket on the column assembly and align the holes.
2. Install two new torque-to-yield bolts. Continue to tighten each bolt until the head shears off (1).
3. Install the column into the vehicle. Refer to COLUMN, INSTALLATION .
   Fig 2: Access Hole For Lock Cylinder Removal

   Courtesy of CHRYSLER GROUP, LLC
4. Place the actuator in the lock cylinder housing to the RUN position (if not already there).
5. Insert the key into the key cylinder and turn the key cylinder to the RUN position.
6. Align the retaining tab on the key cylinder with the slot in the top of the lock cylinder housing.
7. Slide the key cylinder into the lock cylinder housing until the key cylinder retaining tab locks the cylinder into place.
8. Rotate the key back and forth (OFF to START), then remove and reinstall it, making sure the key cylinder and lock cylinder housing operate properly.
   Fig 3: Ring & Lock Cylinder Housing

   Courtesy of CHRYSLER GROUP, LLC
9. Slide the ring (2) over the lock cylinder housing (1) and engage the retainer fingers in the recesses formed on the lock cylinder housing.
10. Install lock housing electrical connectors.
    Fig 4: Multi-Function Switch Mounting

    Courtesy of CHRYSLER GROUP, LLC
11. Install the Steering Column Control Module (SCCM) (3). Refer to CLOCKSPRING, INSTALLATION .
12. Check operation of all steering column mounted components. Make sure the ignition-shift interlock feature operates properly.
