Pump, Water: Installation: Installation

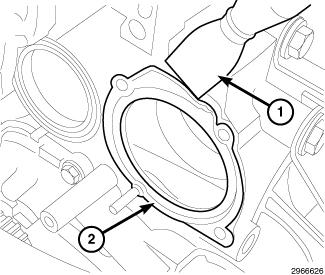

Fig 1: Putty Knife And Gasket

Courtesy of CHRYSLER GROUP, LLC

Clean the mating surfaces (2).

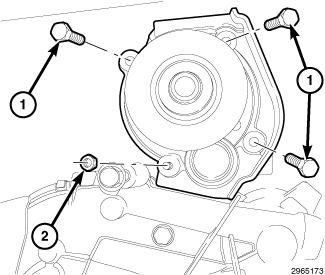

Fig 2: Screws And The Nut
Courtesy of CHRYSLER GROUP, LLC
Apply a strip of silicone sealant to the contact surfaces between the water pump and the engine block.
Position pump onto the engine block.
Install the mounting bolts and nut. Tighten to 10 N.m (89 in. lbs.)
Rotate pump by hand to check for freedom of movement.

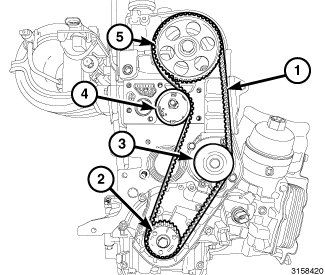

Fig 3: Timing Belt
Courtesy of CHRYSLER GROUP, LLC
Install the timing belt (1) (Refer to INSTALLATION (EAB) or INSTALLATION (EAF) ).
Evacuate air and fill the cooling system. Refer to STANDARD PROCEDURE .
