Sensor, Crankshaft Position: Description

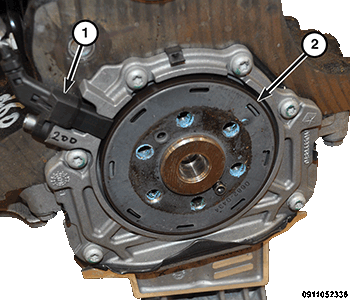

The Crankshaft Position (CKP) sensor (1) is mounted into the rear crankshaft oil seal retainer. It is positioned to read the tone wheel (2) mounted on the rear of the crankshaft. The sensor is accessed from behind the catalytic converter and is located at the transmission and cylinder block interface.
