Outlet, Power: Installation

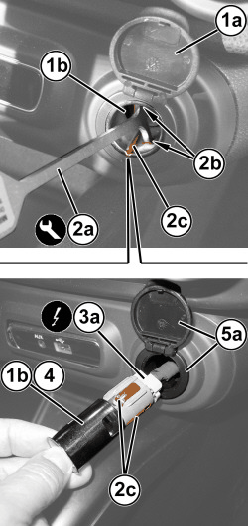

  1. Inspect the power outlet (1b) for damage.
  2. If removed install the power outlet cover and flange (5a).
  3. Connect the power outlet wire harness connector (3a).
  4. Install the power outlet into the trim panel, making sure the guides align while installing in the housing.
  5. Connect the negative battery cable.
GC0184164Courtesy of CHRYSLER GROUP, LLC
