Removal And Installation: Installation

  1. Position the steering column in the vehicle. Install the four steering column to dash frame fasteners, and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

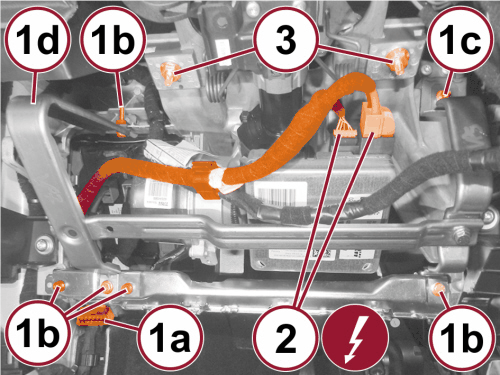

    GC0165723Courtesy of CHRYSLER GROUP, LLC
  2. Connect the two EPS wire harness connectors (2).
  3. Install and tighten the screws (1b), and the nut (1c) for the airbag support frame.
  4. Install the Data Link Connector (DLC) into the dash frame.

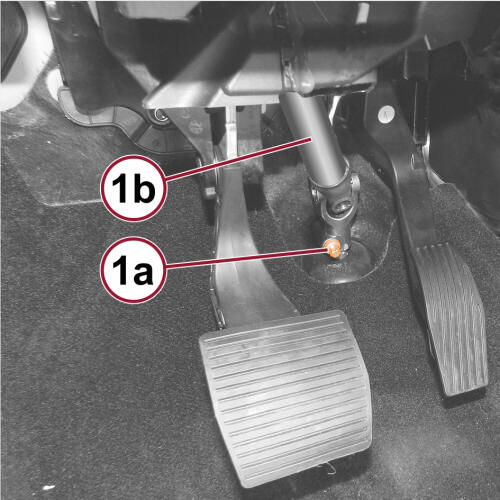

    GC0164823Courtesy of CHRYSLER GROUP, LLC
  5. Install the intermediate shaft (1b) to the steering gear. Tighten the intermediate shaft pinch fastener (1a) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  6. Install the driver knee airbag. Refer to AIR BAG, KNEE BLOCKER, INSTALLATION .
  7. Install the sentry key antenna. Refer to ANTENNA, SENTRY KEY, INSTALLATION .
  8. Install the clockspring. Refer to CLOCKSPRING, REMOVAL AND INSTALLATION .
  9. Install the steering wheel. Refer to WHEEL, STEERING, INSTALLATION  .
  10. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
