Removal And Installation

REMOVAL

1. Remove the thermostat. Refer to THERMOSTAT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

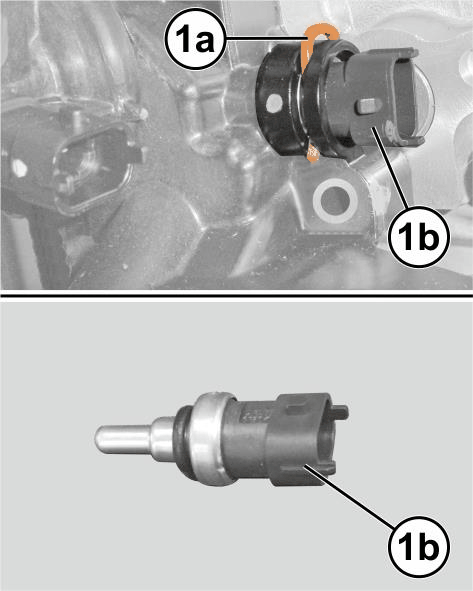

2. Retract the clip (1a) and remove the engine coolant temperature sensor (1b).

INSTALLATION

1. Refit the engine coolant temperature sensor and engage the retaining clip using round-nosed pliers.
2. Install the thermostat. Refer to THERMOSTAT, REMOVAL AND INSTALLATION .
