Wiper Motor

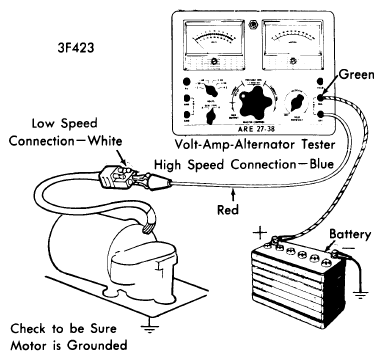

Disconnect linkage from motor, and disconnect electrical plug to test motor on vehicle. Connect suitable volt-amp meter as shown in illustration. Check both high and low speed connections. Current draw should not exceed 3.0 amperes except on 1971 models which should not exceed 2.5 amperes.
