Tool C-3829 Method

Remove alternator brushes and through bolts. Separate rectifier end housing and stator from drive end housing and rotor. Test rectifiers as follows:

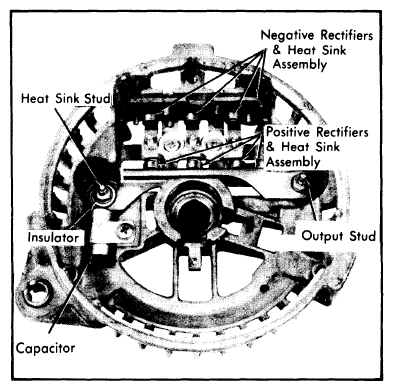

Fig 1: View Of Rectifier End Shield

Courtesy of CHRYSLER GROUP, LLC
