Latching Relay

Ground relay case and connect a jumper wire between pins one and two. Connect a 12 volt test light between pin three and ground. Apply voltage to pin two. Test light should not light. Momentarily short pin two and pin four. Test light should come on and stay on, even after short is removed.

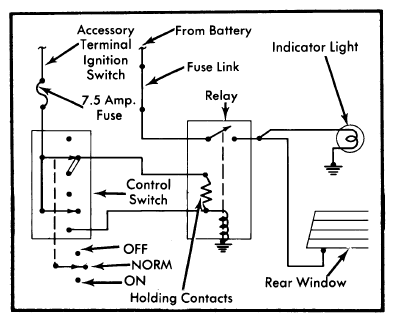

Fig 1: Heated Rear Window Wiring Diagram Ford, Mercury, Cougar, LTD II, Thunderbird, Mark V & Continental
G09347046Courtesy of FORD MOTOR CO.
