Variable Speed Cooling Fans: Description

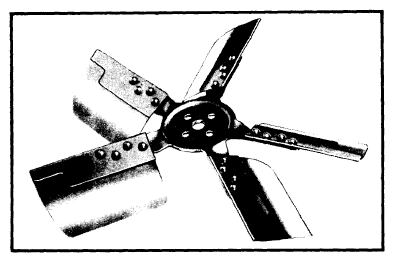

This unit is a fixed blade assembly designed to flex the blades as the engine RPM increases. As RPM increases blade pitch decreases, thereby saving power and decreasing noise level. No adjustment or test is required beyond keeping the fan belt adjusted to the proper tension.
All air conditioned models use a thermostatically controlled fluid fan and torque control clutch. The thermal control drive is a silicone filled coupling connecting the fan to the fan pulley, and is operated by a control valve. Control valve is operated by a temperature sensitive bi-metal coil or strip and controls the flow of silicone through the clutch. During periods of operation when radiator discharge air temperature is low, the fan clutch limits the fan speed. High radiator discharge air temperature causes bi-metal to allow a greater flow of silicone to enter the clutch. This increases the drag between the driven member and driving member resulting in a higher fan speed and increased cooling.
