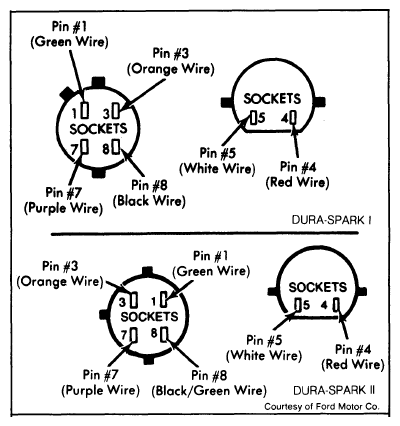

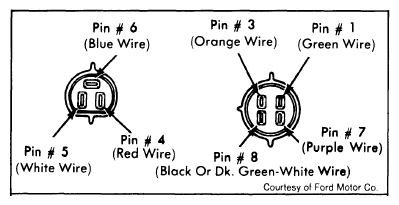

With ignition on, measure voltage between Red wire (pin No. 4) and engine ground. See Figure and Figure. If voltage is less than battery voltage, repair Red wire between ignition switch and control module.
