Wiper Switch Continuity Test

Check wiper switch for continuity using the following chart. Disconnect the connector under the steering column and Test using an ohmmeter or self-powered test lamp.

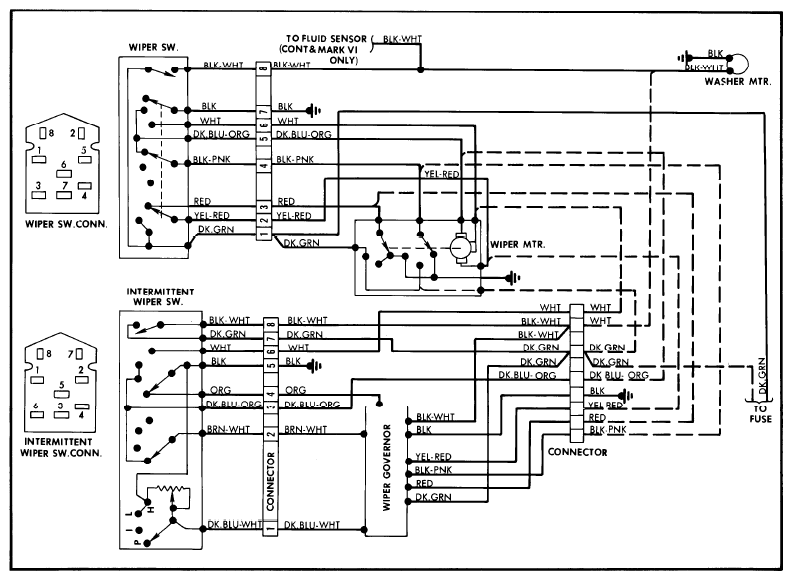

NOTE: See Wiper switch connector terminal identification in Figure.

WIPER CONTINUITY TEST

Position

Standard Wiper

Intermittent Wiper

OFF

2-3, 4-5

2-3, 1-4-5

INTER

.....

⁽¹⁾1-3-5

LOW

1-2, 5-7

1-3-5

HIGH

1-2, 6-7

1-5-6

WASH

1-8

7-8

⁽¹⁾	Resistance between 1-3 and 1-5 should vary between 420 and 13, 000 ohms.
