Wiring Diagrams

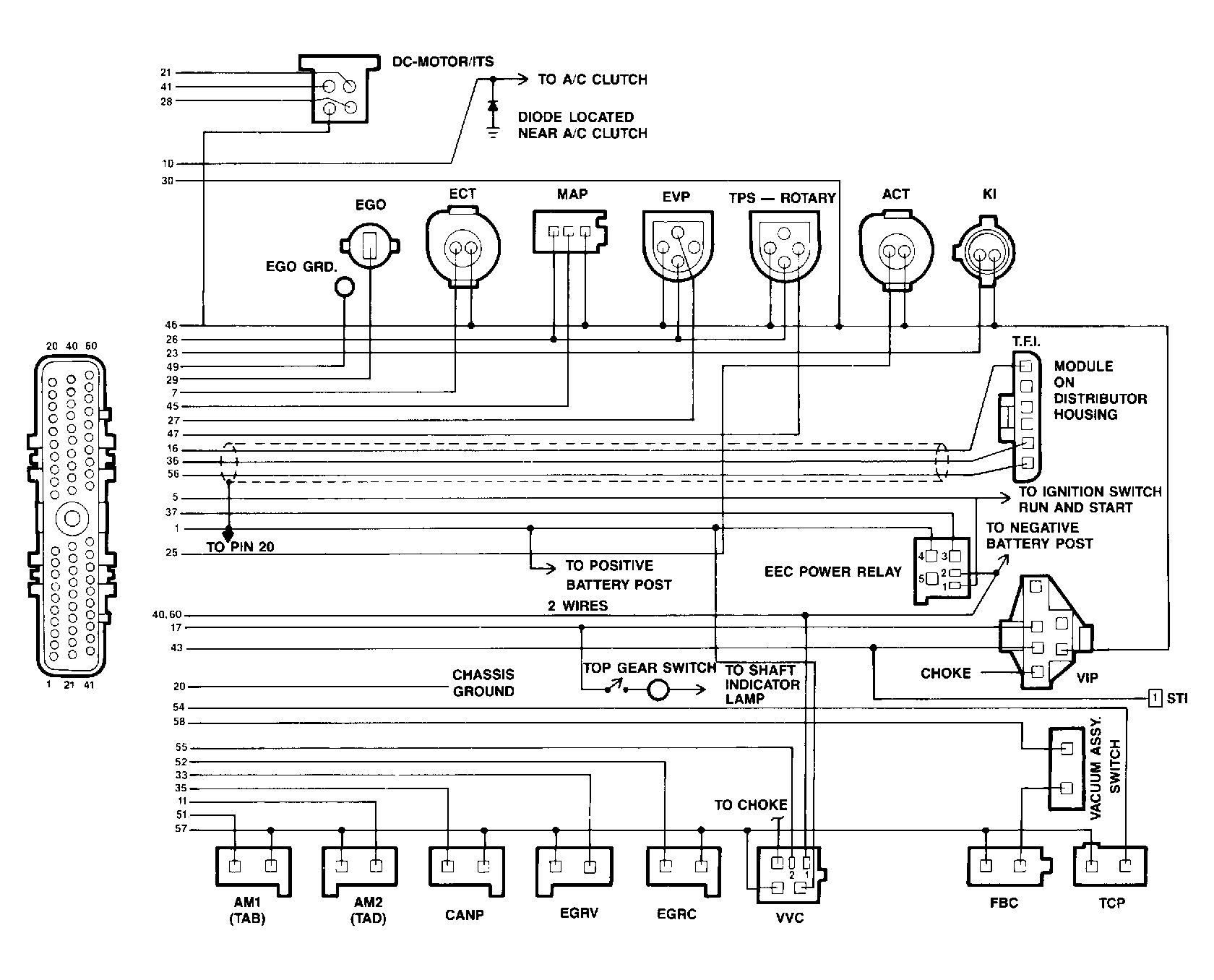

Fig 1: EEC-IV System Wiring Diagram (Manual Transmission)

G8446

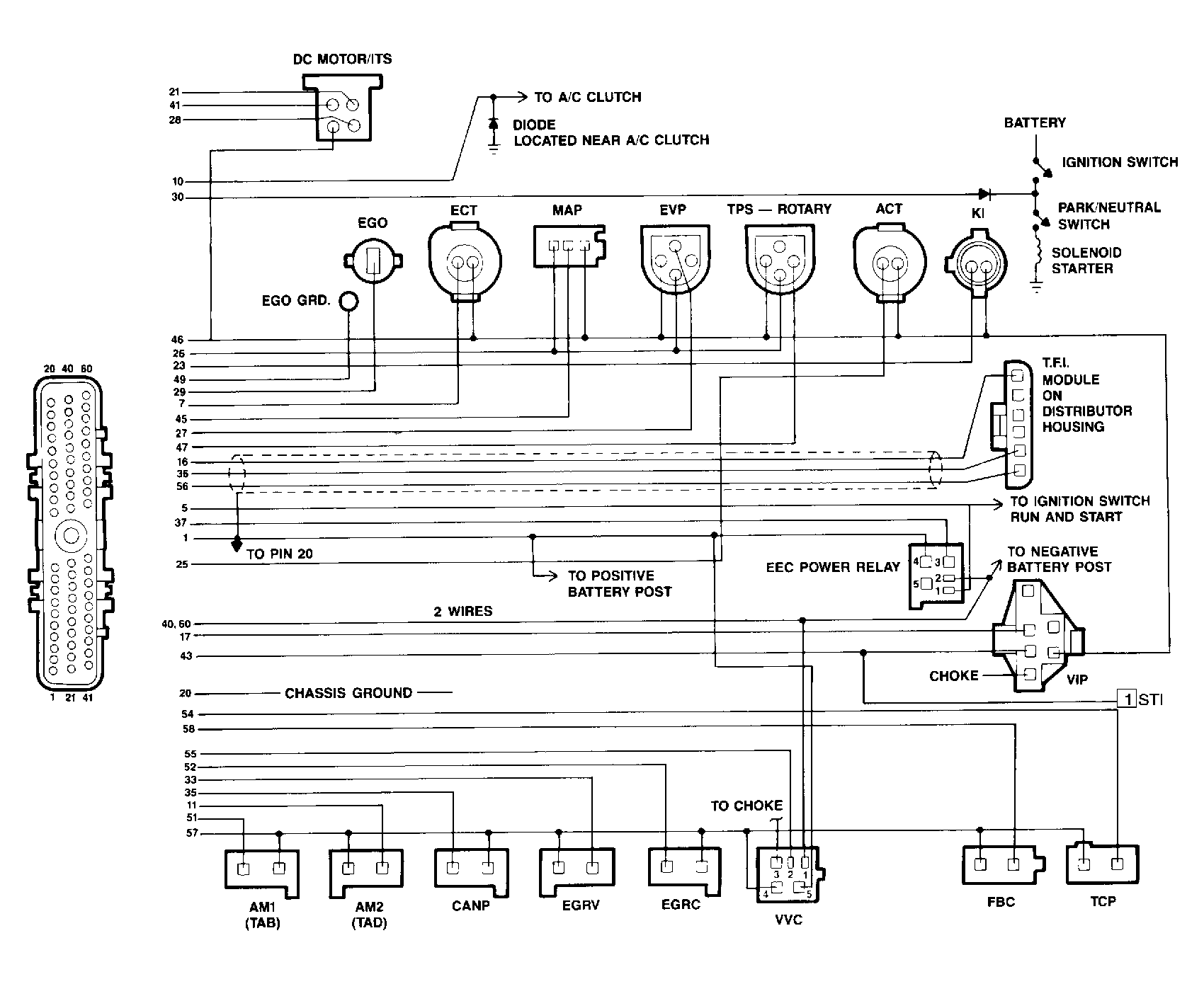

Fig 2: EEC-IV System Wiring Diagram (Automatic Transmission)

G8447
