Ignition System - TFI-IV: Overhaul

NOTE: TFI-IV distributor parts replacement include cap, rotor, module, octane rod and distributor shaft "O" ring. If any other component is found to be defective, the entire distributor assembly must be replaced.

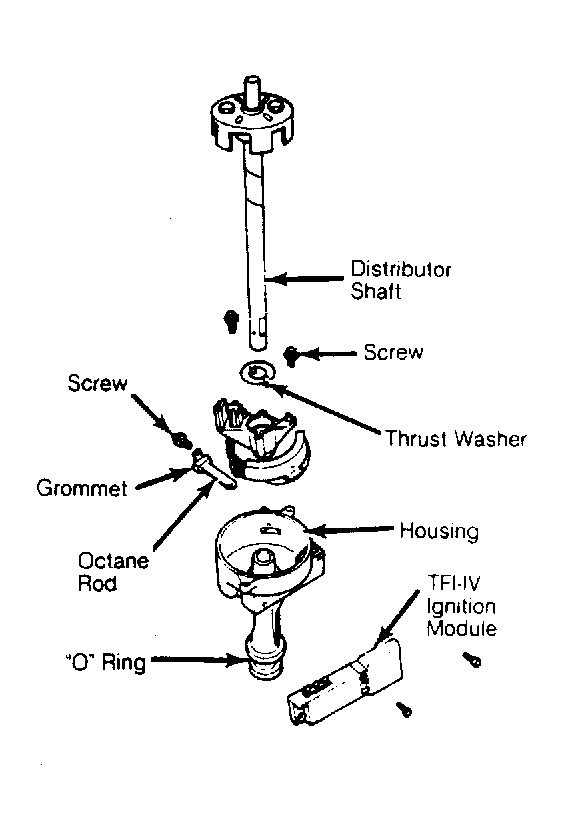

Fig 1: Exploded View of Typical TFI-IV Distributor

Courtesy of FORD MOTOR CO.
