Home >> Ford >> 1985 >> Ranger 2.0 C >> Repair and Diagnosis >> Engine Performance >> System >> Idle Speed Control System >> Wiring Diagram

Idle Speed Control System: Wiring Diagram

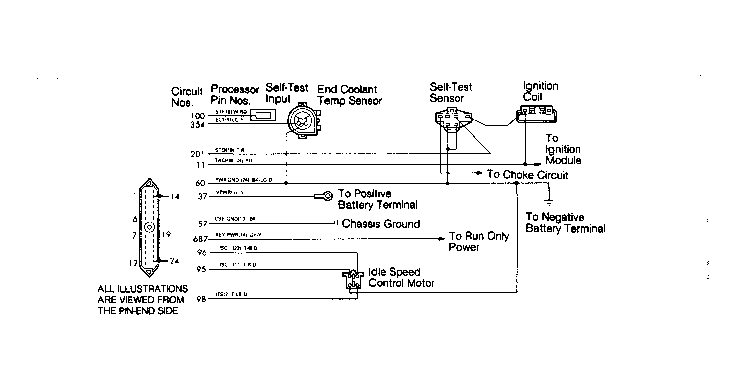

Fig 1: Wiring Diagram (2.0L ISC-E)

G10648
