Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

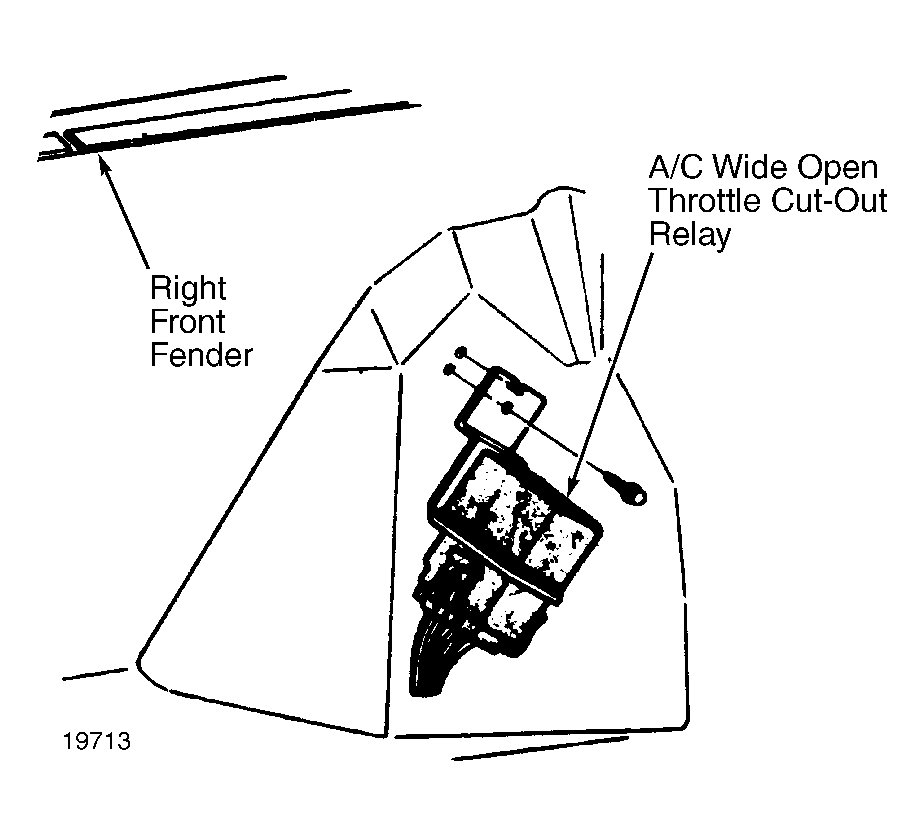

Fig 1: Component Locations (1 Of 33)

G19713

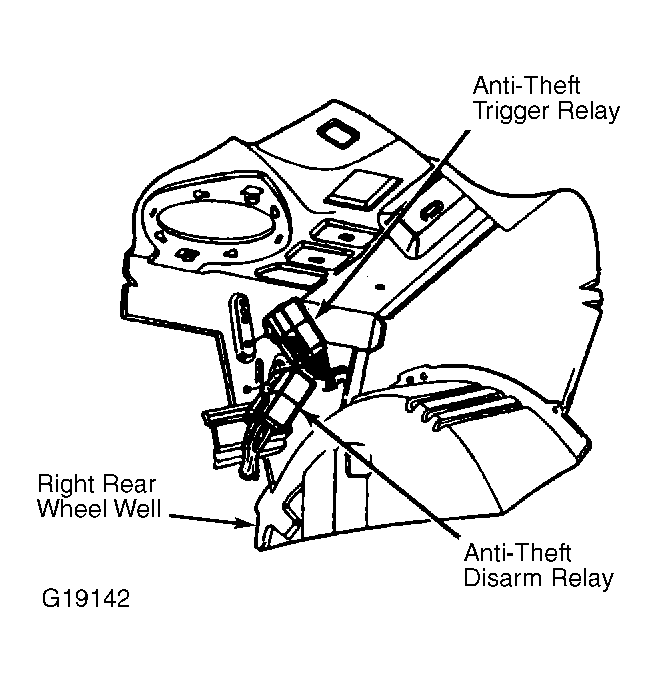

Fig 2: Component Locations (2 Of 33)

G19142

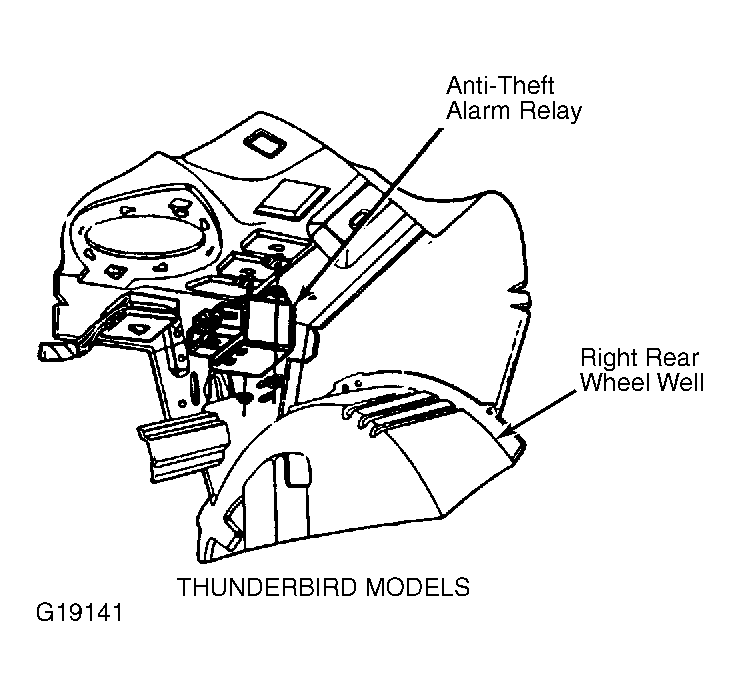

Fig 3: Component Locations (3 Of 33)

G19141

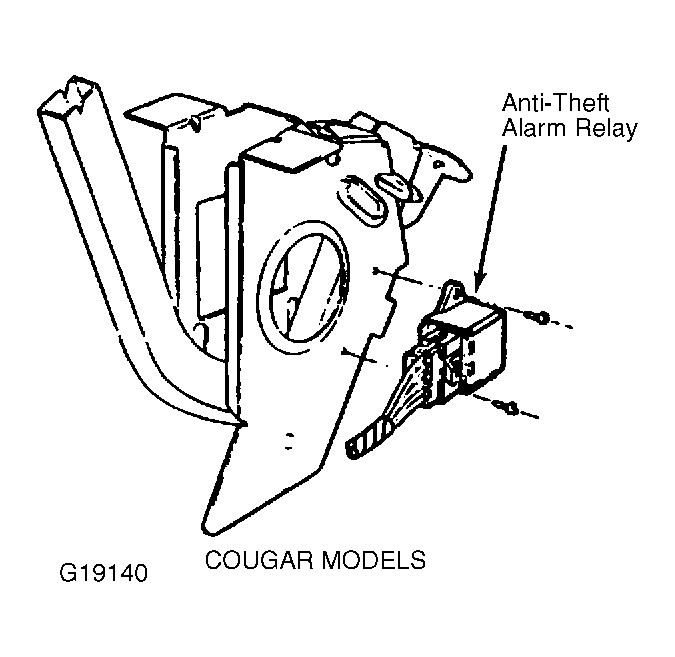

Fig 4: Component Locations (4 Of 33)

G19140

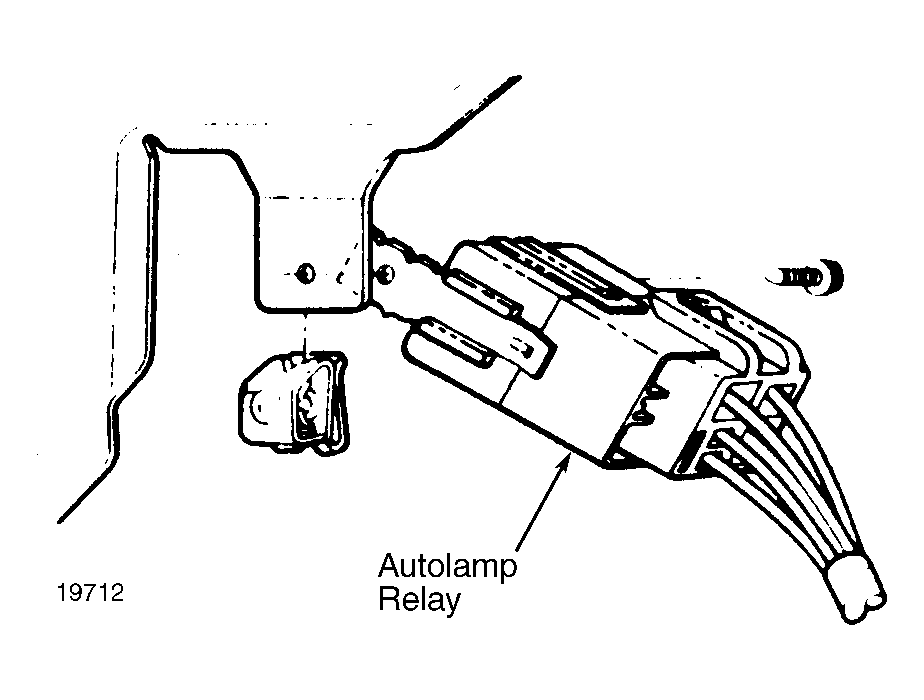

Fig 5: Component Locations (5 Of 33)

G19712

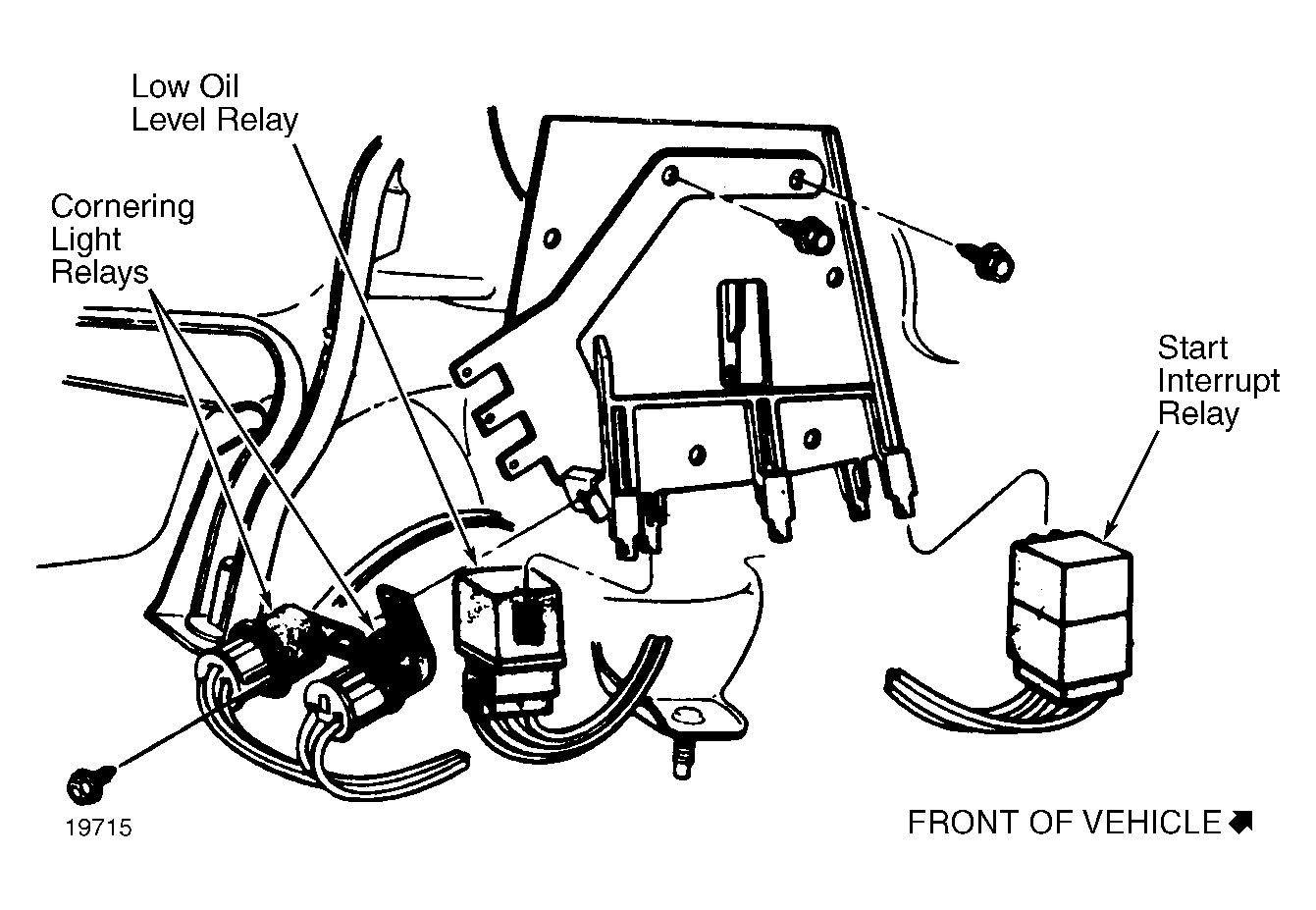

Fig 6: Component Locations (6 Of 33)

G19715

Fig 7: Component Locations (7 Of 33)

G19144

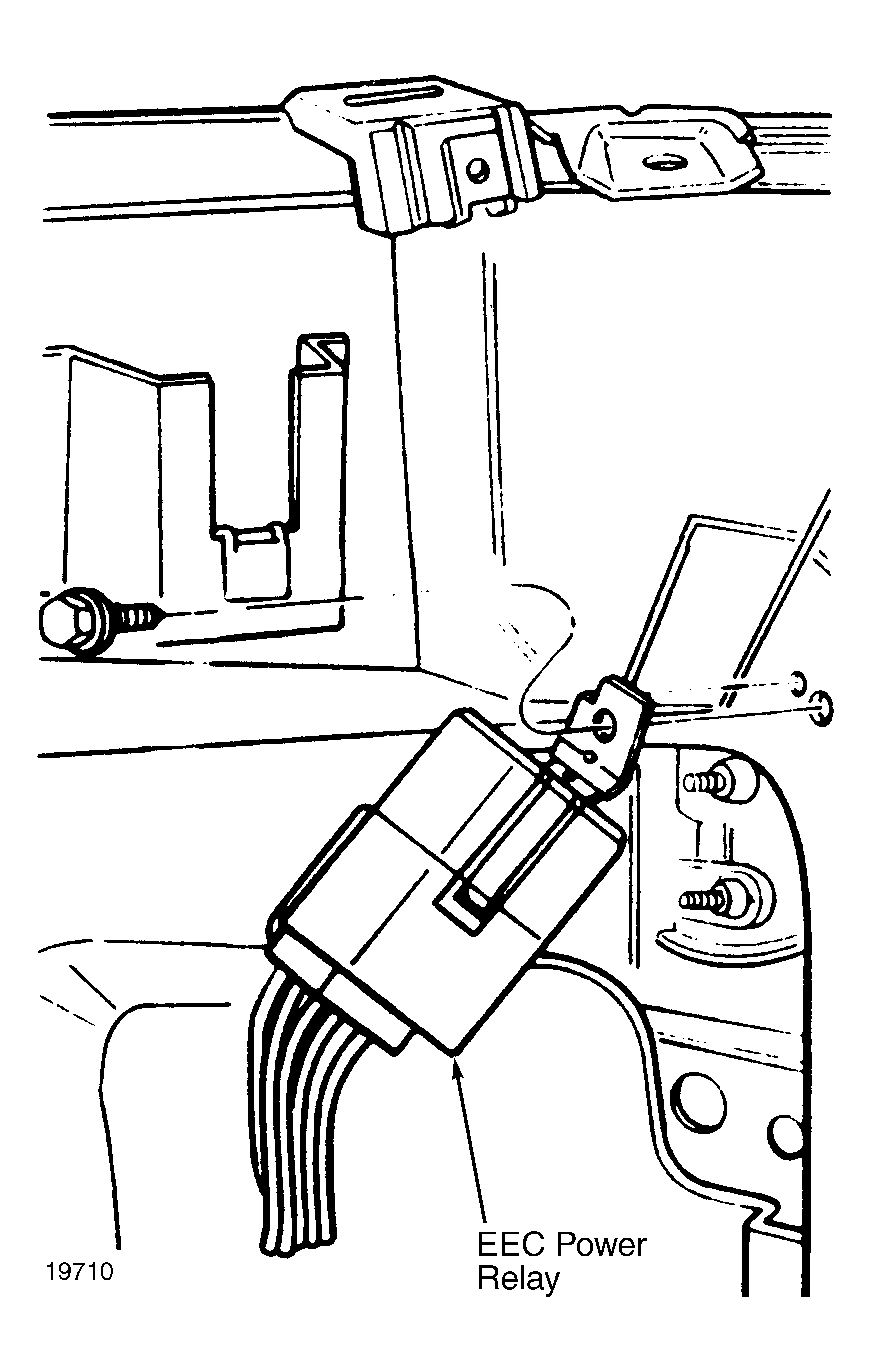

Fig 8: Component Locations (8 Of 33)

G19710

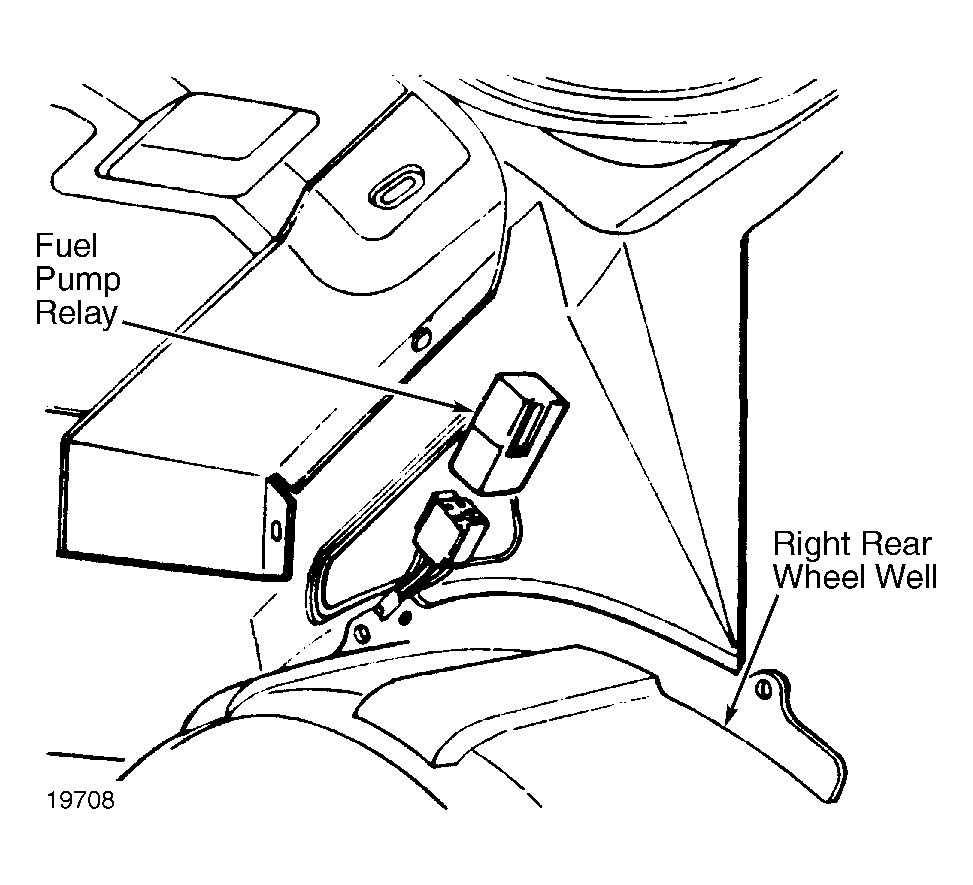

Fig 9: Component Locations (9 Of 33)

G19708

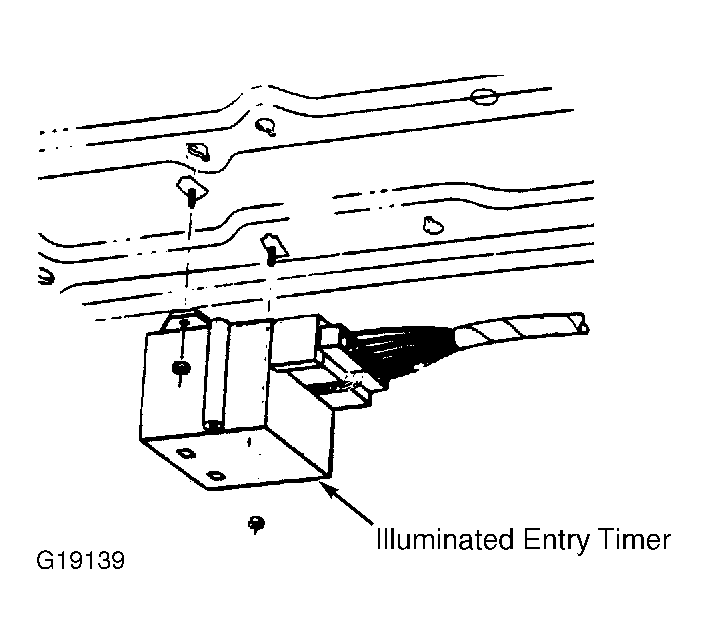

Fig 10: Component Locations (10 Of 33)

G19139

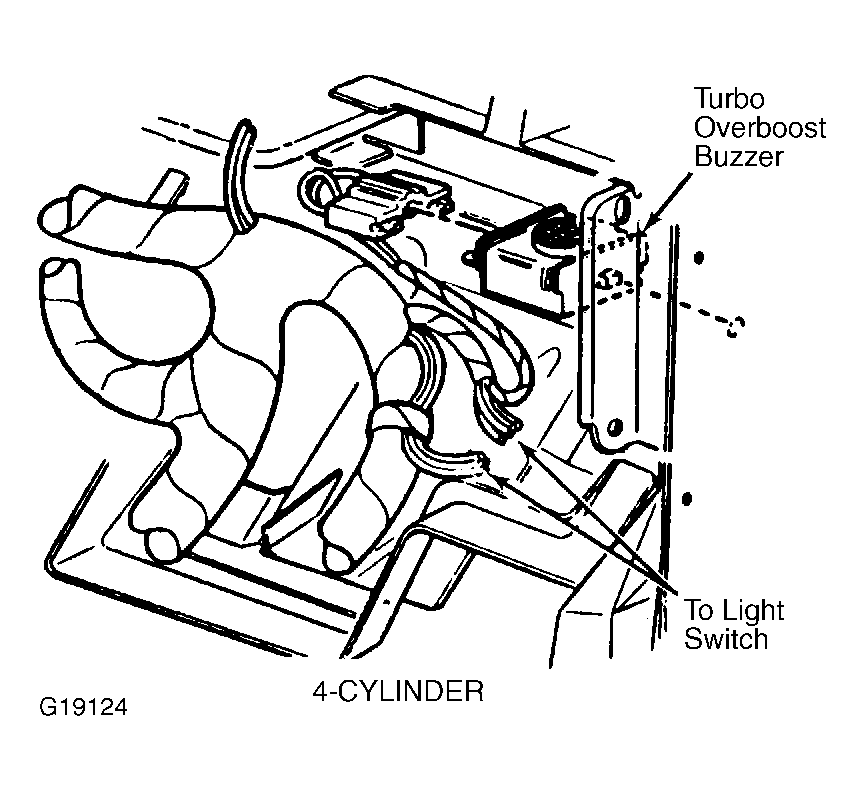

Fig 11: Component Locations (11 Of 33)

G19124

Fig 12: Component Locations (12 Of 33)

G19130

Fig 13: Component Locations (13 Of 33)

G20190

Fig 14: Component Locations (14 Of 33)

G19131

Fig 15: Component Locations (15 Of 33)

G19135

Fig 16: Component Locations (16 Of 33)

G19696

Fig 17: Component Locations (17 Of 33)

G20189

Fig 18: Component Locations (18 Of 33)

G19701

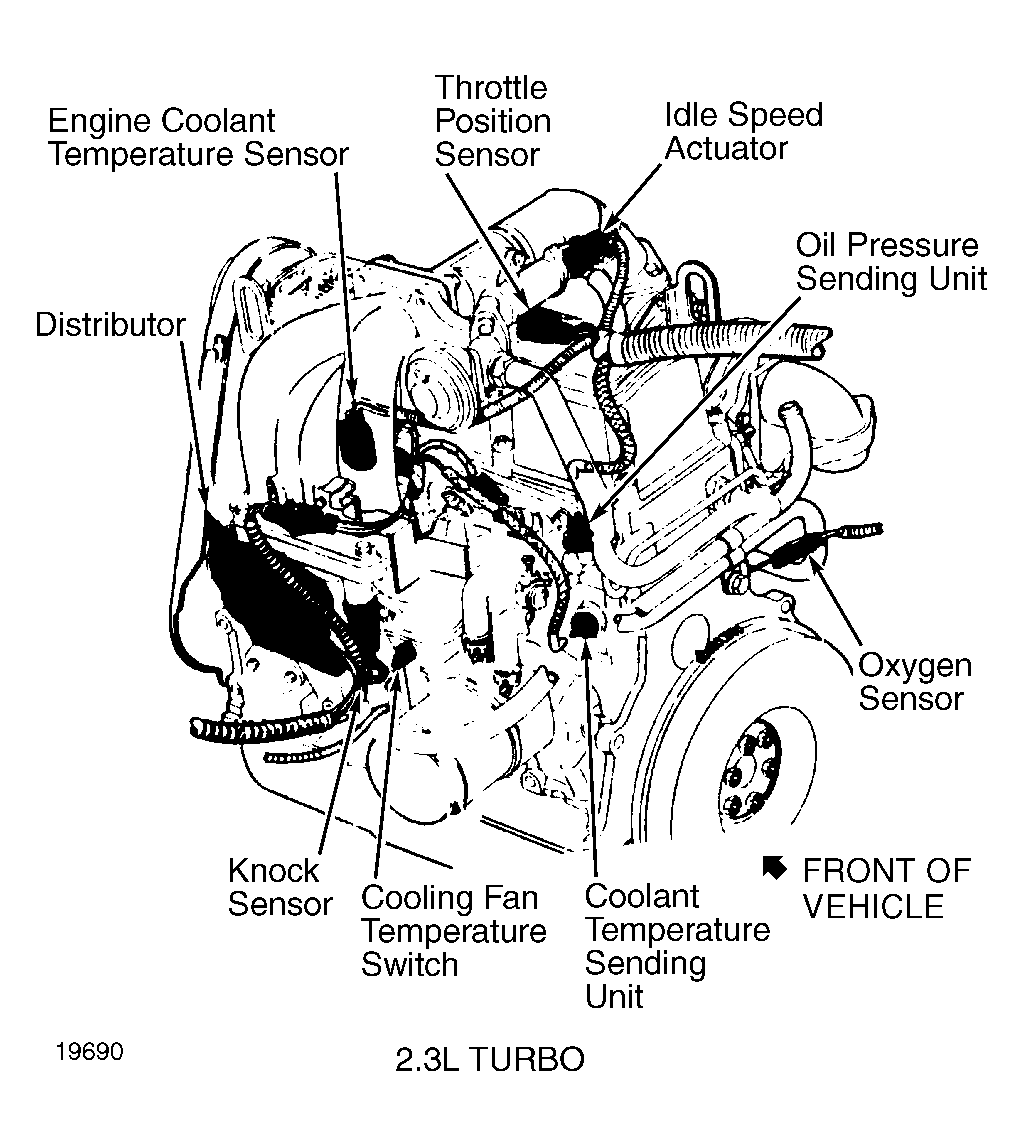

Fig 19: Component Locations (19 Of 33)

G19690

Fig 20: Component Locations (20 Of 33)

G19688

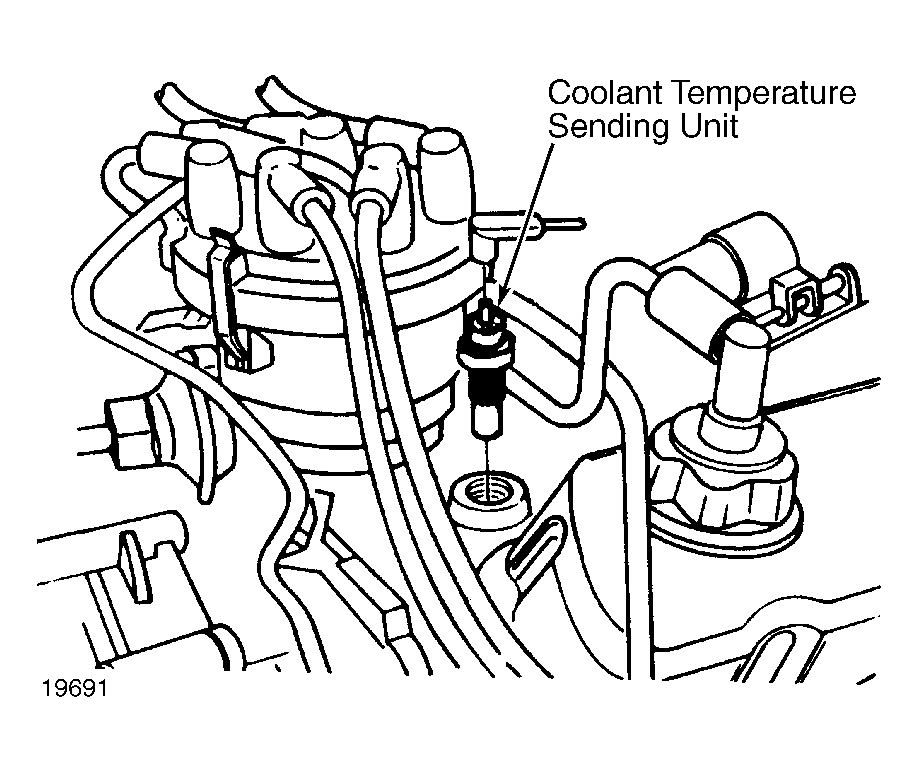

Fig 21: Component Locations (21 Of 33)

G19691

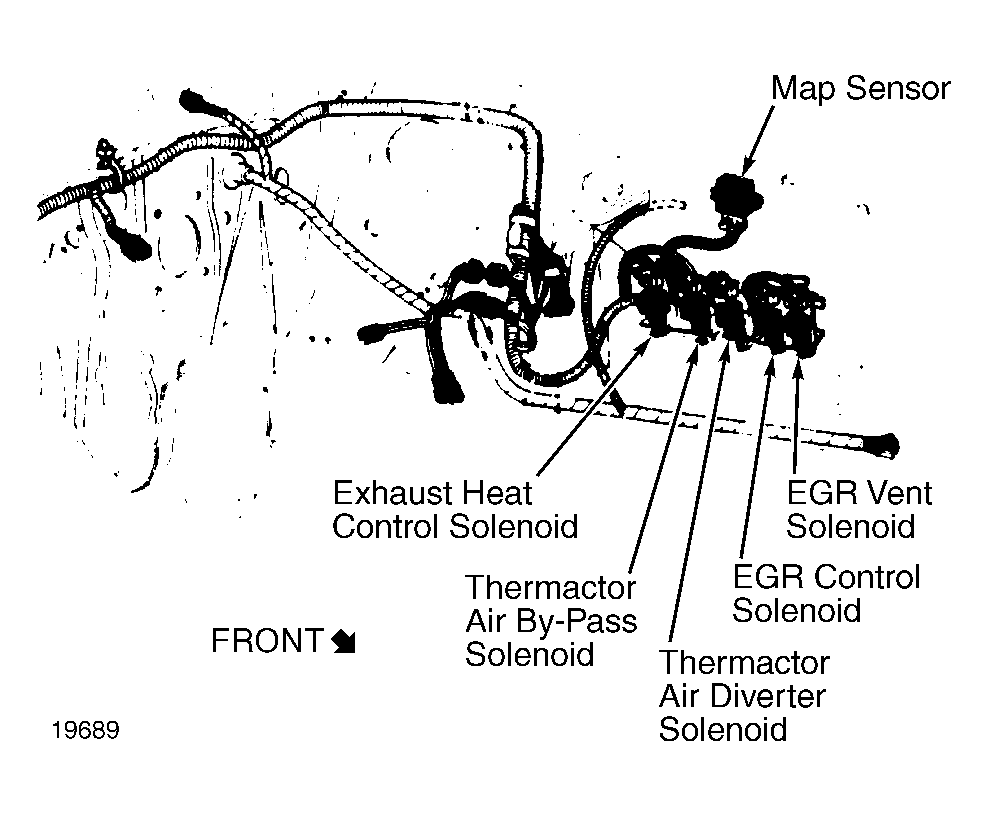

Fig 22: Component Locations (22 Of 33)

G19689

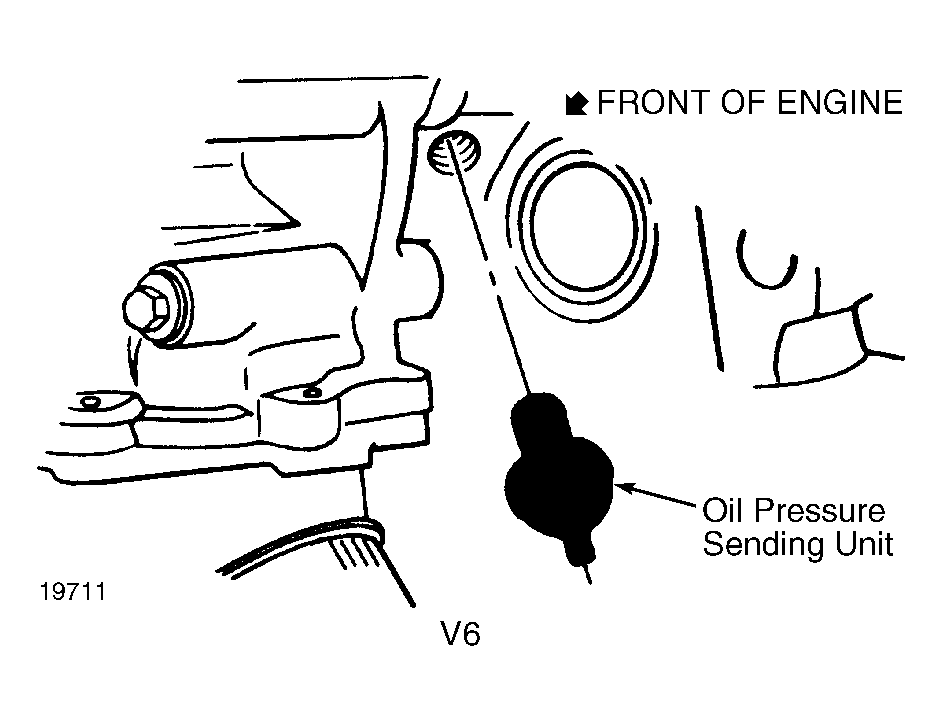

Fig 23: Component Locations (23 Of 33)

G19711

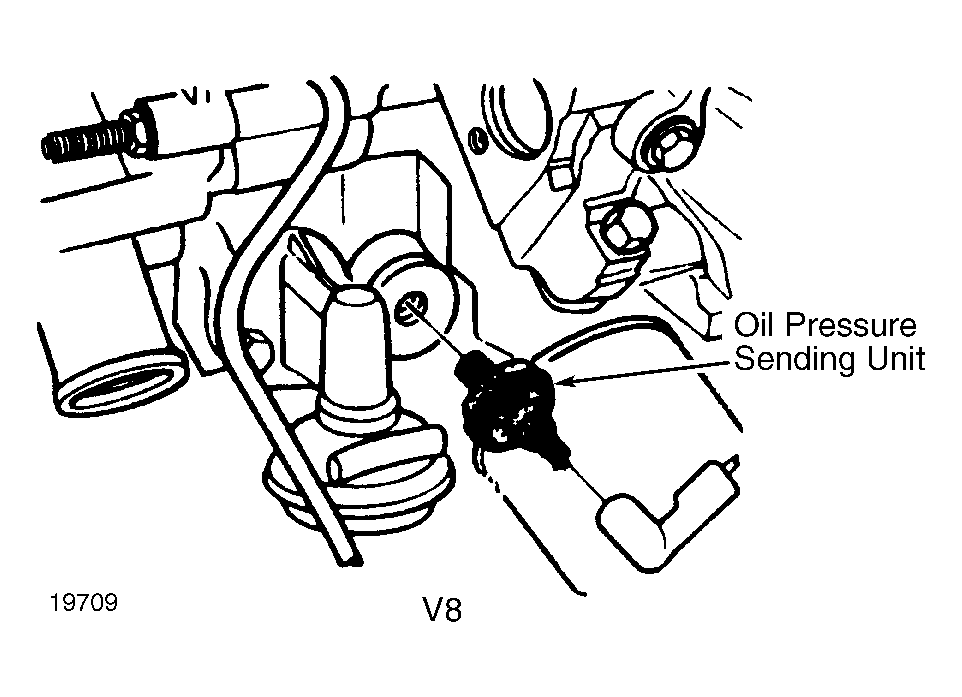

Fig 24: Component Locations (24 Of 33)

G19709

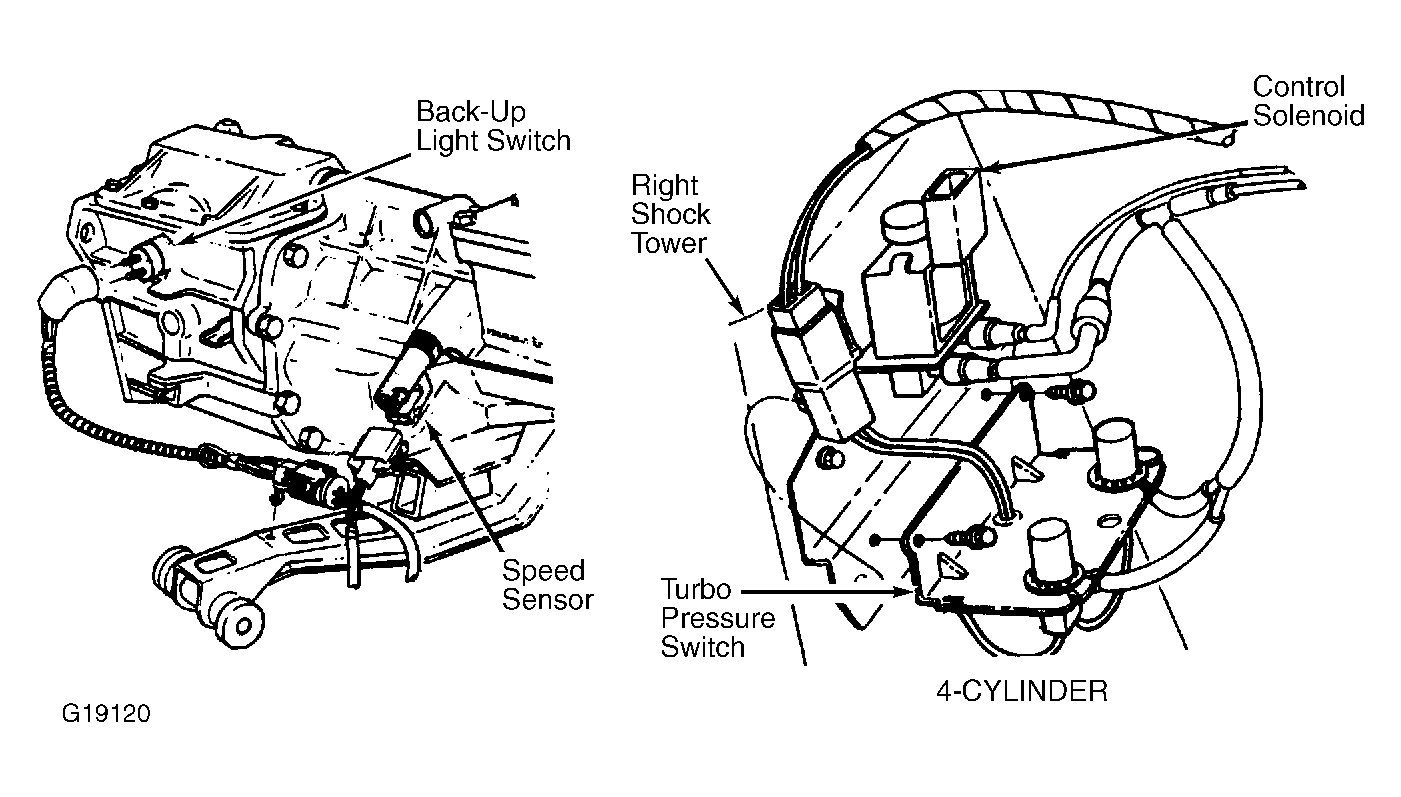

Fig 25: Component Locations (25 Of 33)

G19120

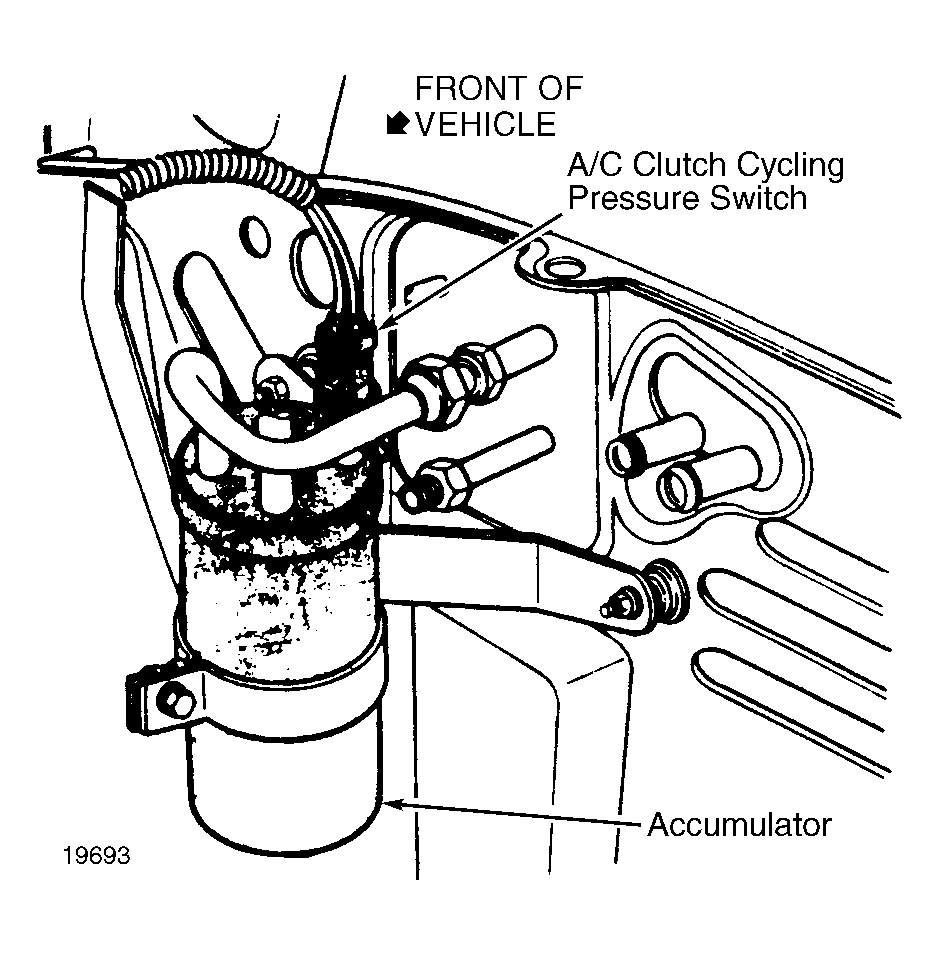

Fig 26: Component Locations (26 Of 33)

G19693

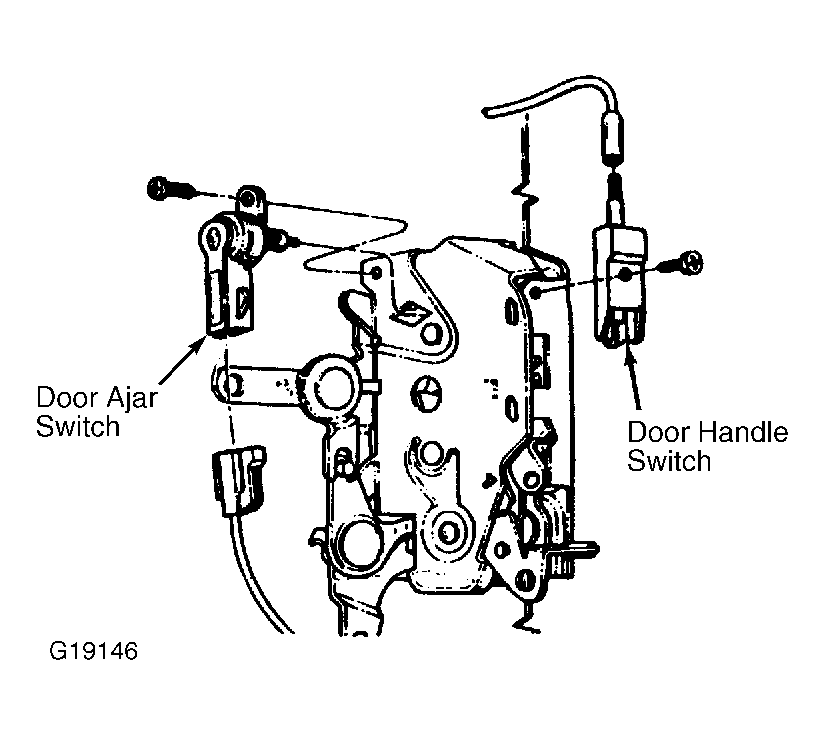

Fig 27: Component Locations (27 Of 33)

G19146

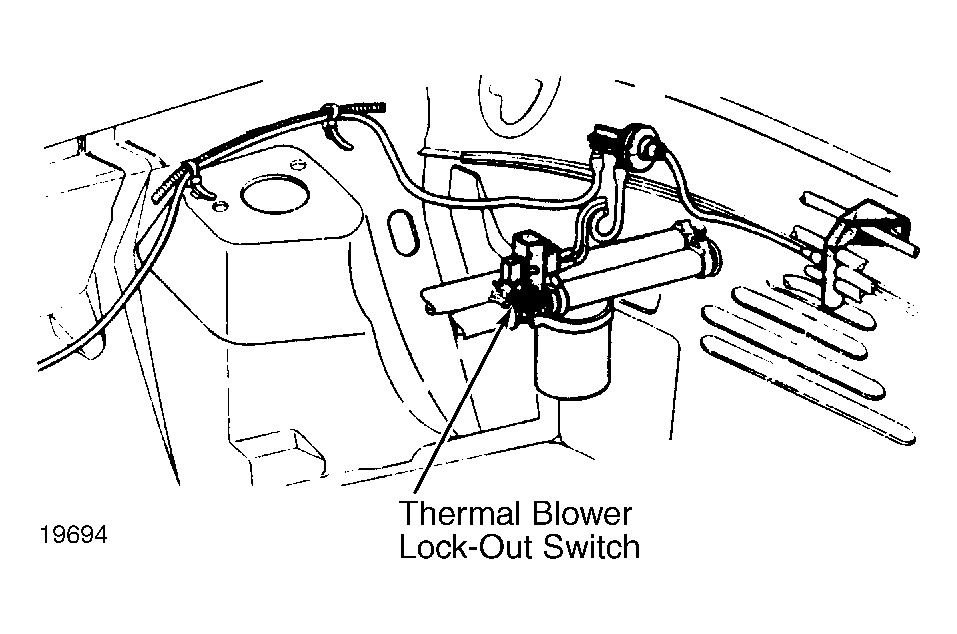

Fig 28: Component Locations (28 Of 33)

G19694

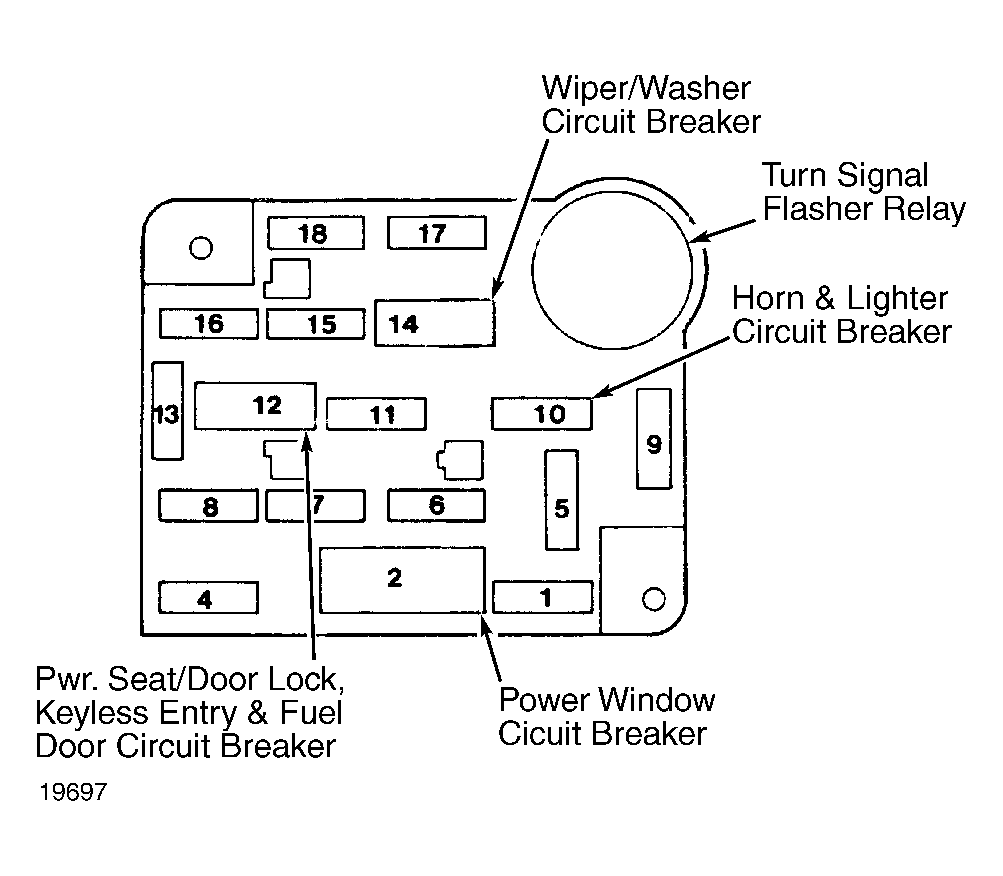

Fig 29: Component Locations (29 Of 33)

G19697

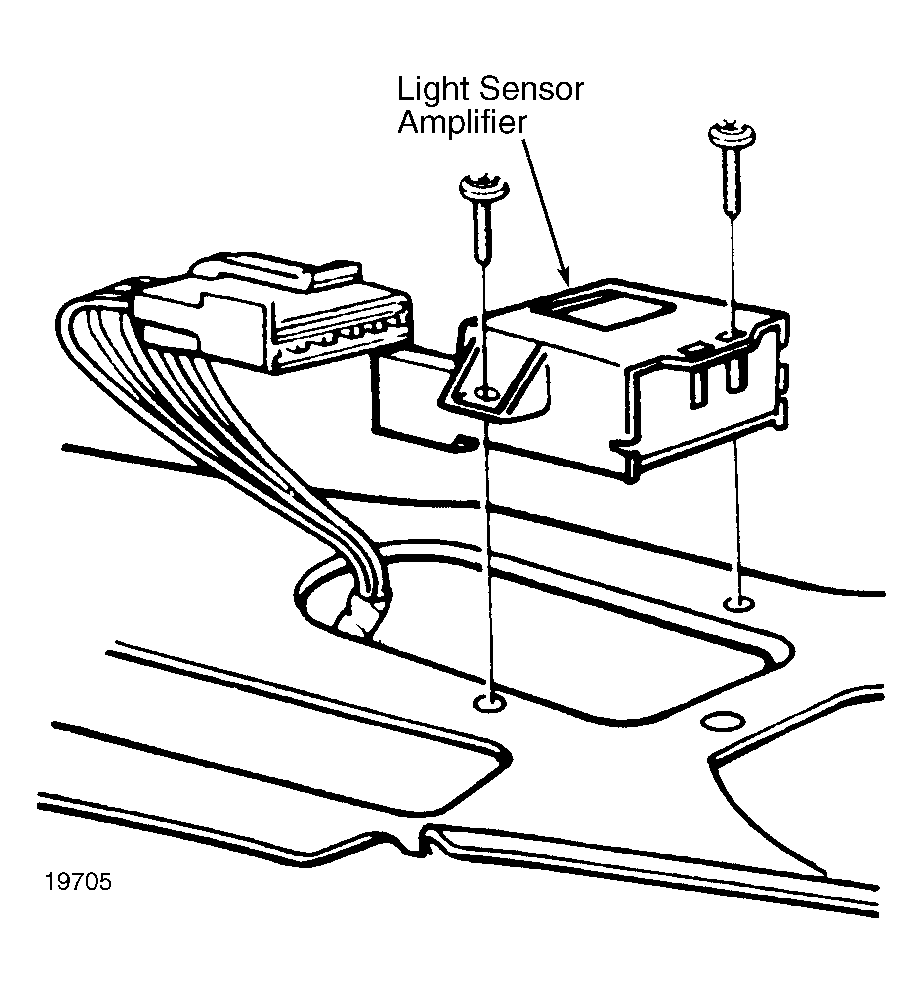

Fig 30: Component Locations (30 Of 33)

G19705

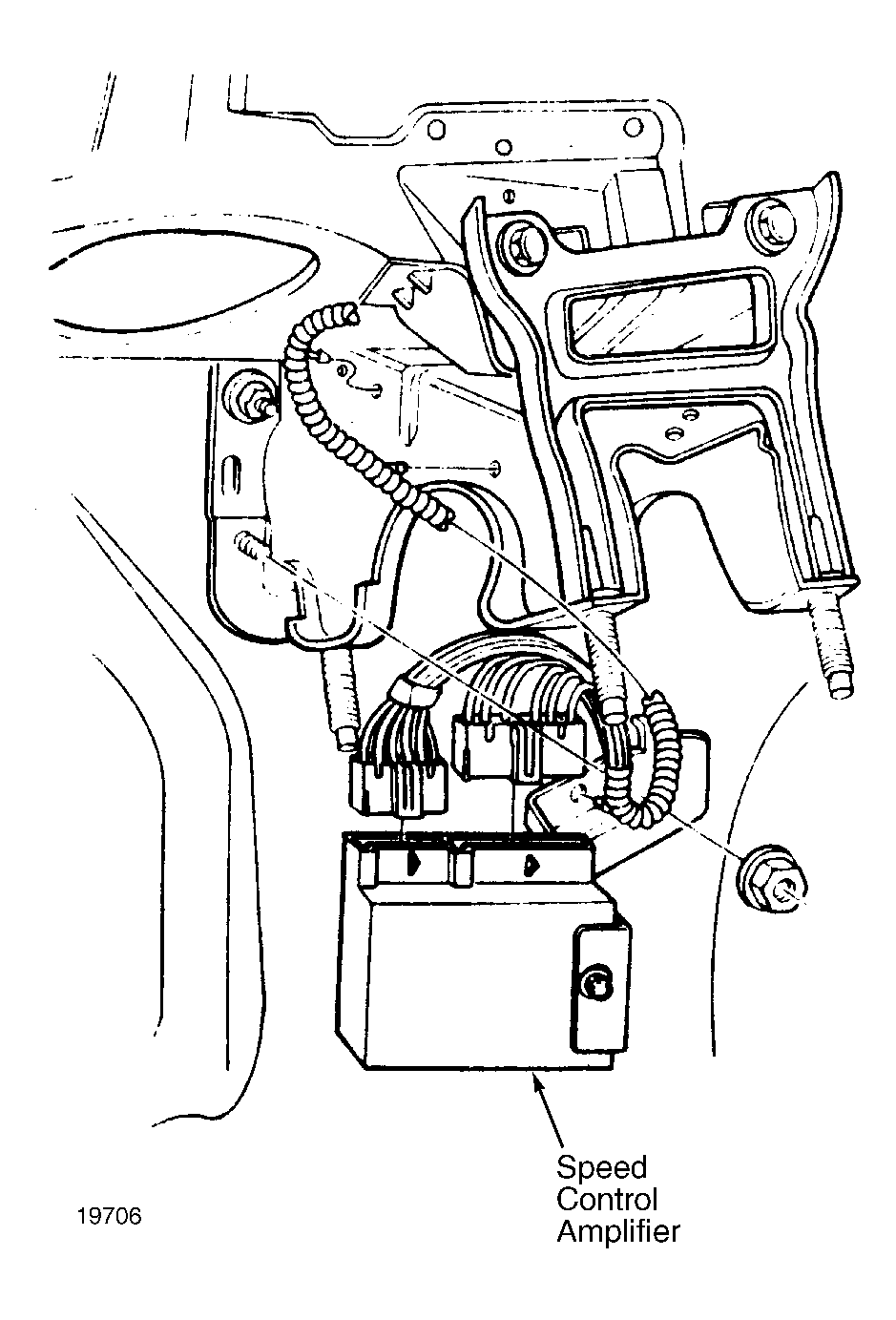

Fig 31: Component Locations (31 Of 33)

G19706

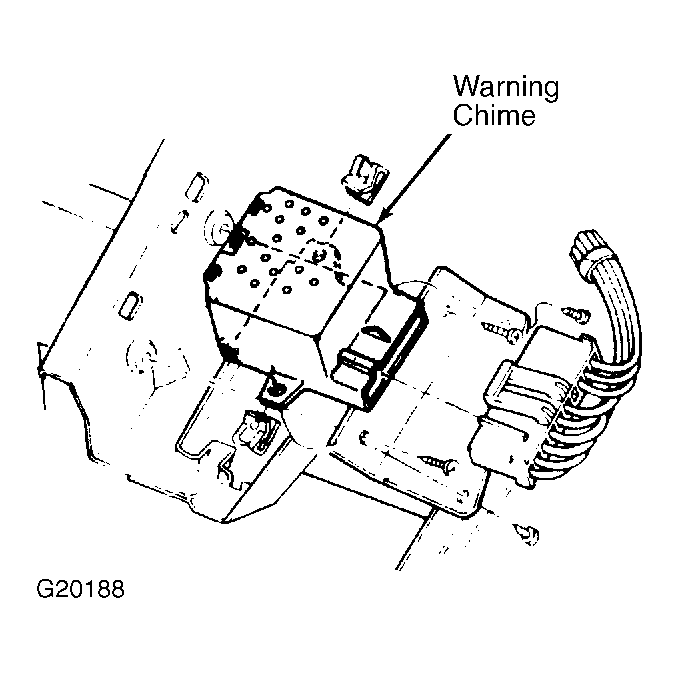

Fig 32: Component Locations (32 Of 33)

G20188

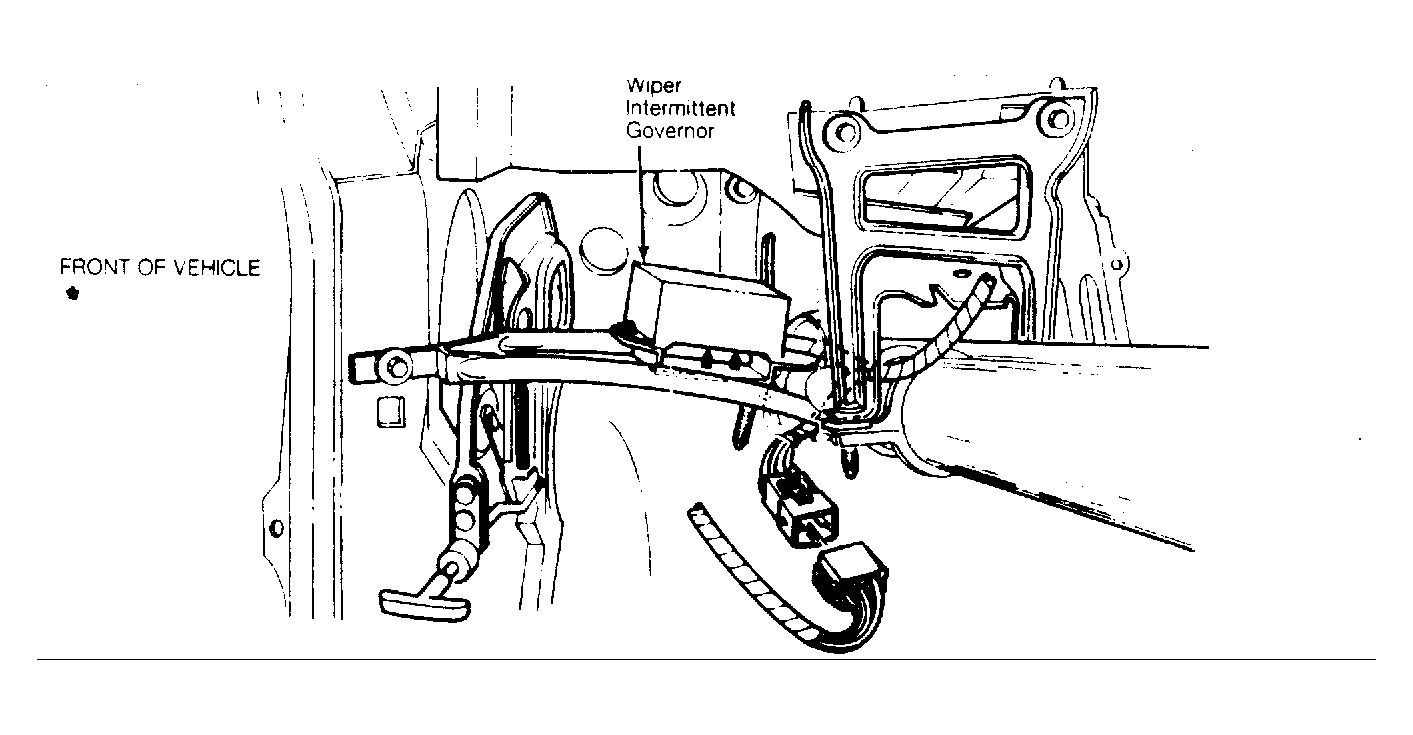

Fig 33: Component Locations (33 Of 33)

G19707
