Above 3280 Feet

Remove and plug 3 hoses from HAC valve and note idle quality. Poor idle quality should result due to insufficient air for high altitude operation. If idle quality remains unchanged, replace HAC valve.

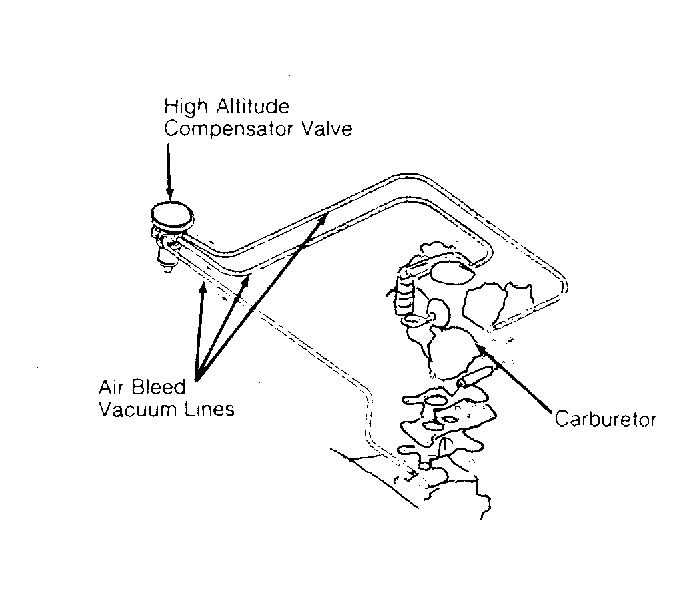

Fig 1: High Altitude Compensator
G93743Courtesy of FORD MOTOR CO.
