Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Electronic Control Assembly (ECA) Module | On left side of firewall, near master cylinder. See Figure . |
| Speed Control Module | Behind right side of dash. |

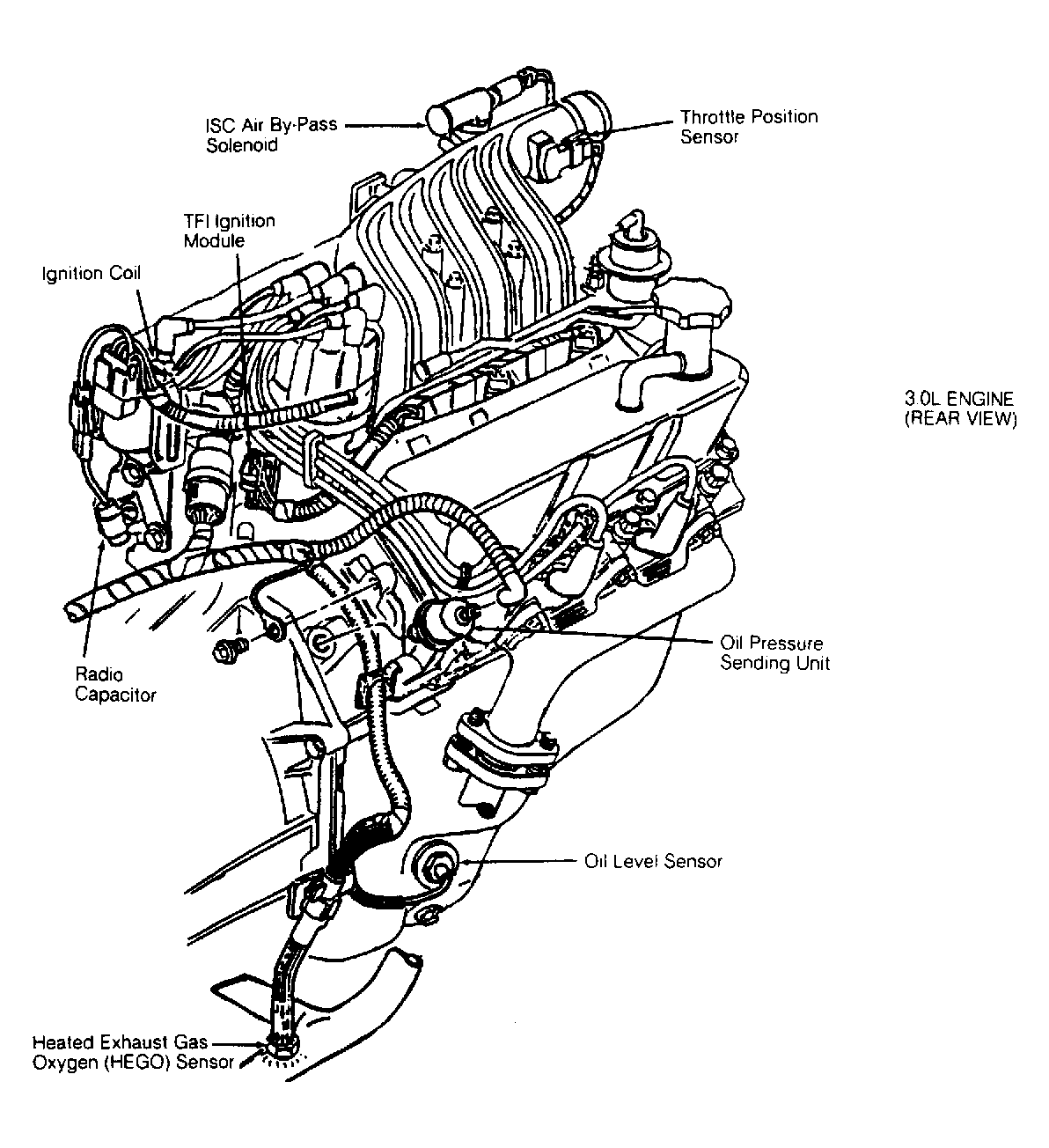

| TFI Ignition Module | On distributor. See Figure . |
| Trailer Tow Relay Module | On left rear quarter panel, behind wheelwell. |

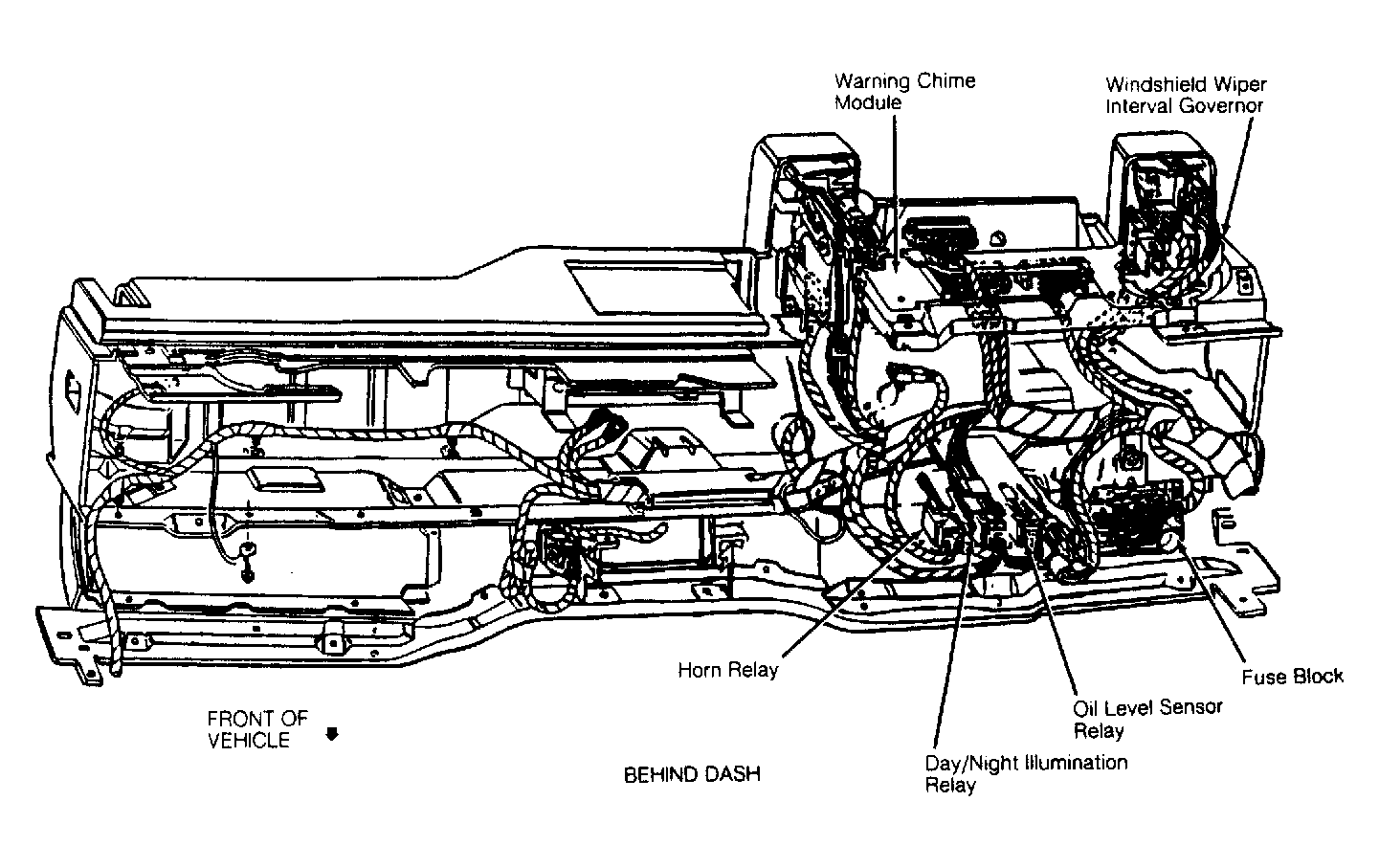

| Warning Chime Module | Behind instrument cluster, right of steering column. See Figure . |
